Honda Civic 10 th generation was produced in 2016, 2017, 2018, 2019, 2020, 2021 with sedan, hatchback and coupe bodies and was delivered all over the world. During this time, the model has undergone a facelift. In our material you will find a description of the fuses and relays for the Honda Civic 10 with fuse box diagrams, locations and photo examples of performance. Note the cigarette lighter fuse.
The designation of fuses and relays in the blocks may differ from that shown. Check the purpose of the elements with your schemes.
Passenger compartment
In the cabin, the main fuse box is located under the instrument panel, on the driver’s side. The diagnostic connector is also installed there.
The original diagram for your car will be placed on the pillar, under the instrument panel, near the driver’s left foot.
Diagram
Assignment
| 1 | 10 Accessory |
| 2 | 5A Key lock |
| 3 | – |
| 4 | 5/10A Front sensor camera, transmission |
| 5 | 10A Option |
| 6 | 10A SRS indicator |
| 7 | 10A Instruments |
| 8 | 15A Fuel pump |
| 9 | 10A Air conditioner |
| 10 | − |
| 11 | 10A Engine control |
| 12 | 10A Passenger door lock |
| 13 | 10A Unlocking the rear door on the driver’s side |
| 14 | 20A Rear power window, driver’s side |
| 15 | 20A Power window, passenger side |
| 16 | 20A Lock |
| 17 | 5/10A Transmission, Front sensor camera |
| 18 | − |
| 19 | 20A Hatch |
| 20 | − |
| 21 | 10A ACG (Ignition) |
| 22 | 10A Daytime running lights |
| 23 | − |
| 24 | 5A Front touch camera |
| 25 | 10A Driver’s door lock |
| 26 | 10A Passenger side door unlock |
| 27 | 20A Power window, rear passenger side |
| 28 | 20A Driver window regulator |
| 29 | 20A Front accessory socket, cigarette lighter |
| 30 | 10A Smart input |
| 31 | 20A Power driver seat |
| 32 | 20A Heated front seat |
| 33 | 20A Power sliding driver’s seat |
| 34 | 10A VSA/ABS |
| 35 | 10A SRS |
| 36 | − |
| 37 | − |
| 38 | 10A Rear door lock, driver’s side |
| 39 | 10A Driver’s door unlock |
The fuse number 29 at 20A is responsible for the cigarette lighter.
Engine compartment
Under the hood, the main box with fuses and relays is located on the left side and is closed with a protective cover.
The box itself will look something like this.
Legend from the box cover
Diagram
Allocation
| 1 | 60A Power Passenger Seat/ Heated Rear Seat |
| 30A Cooling fan | |
| 50A Cooling fan | |
| — | |
| Main IG | |
| – | |
| 30A High beam main headlight | |
| 125A Battery | |
| 2 | 70A EPS |
| 30A IG Main | |
| 50A | |
| 40A Option (fuse box) | |
| 60A Fuse box | |
| 30A Front wiper motor | |
| 30A Main dipped beam | |
| 3 | 40A Rear deicer |
| 30A Starter | |
| – | |
| 40A Fuse box | |
| 40A ABS/VSA Motor | |
| 40A ABS/VSA FSR | |
| 40A Fan motor | |
| 4 | — |
| 5 | 5A Cooling fan |
| 6 | 15A Washer |
| 7 | 15A Main fuel injection |
| 8 | 15A fuel injection sub |
| 9 | 10A Brake lights |
| 10 | 15A Injector |
| 11 | 5A LAF |
| 12 | 10A Engine ECU |
| 13 | 10A Parking lights |
| 14 | 15A Alarm |
| 15 | 15A IG coil |
| 16 | 15A Transmission |
| 17 | 10A Daytime running lights |
| 18 | 10A Reverse lamp |
| 19 | 15A Audio |
| 20 | 30A Audio amplifier |
| 21 | 10A Interior lighting |
| 22 | 15A Front fog lights |
| 23 | 10A Air conditioner compressor |
| 24 | 10A Signal |
| 25 | 10A Dipped beam left headlight |
| 26 | 10A Dipped beam right headlight |
| 27 | 10A VB ACT |
| 28 | 10A High beam left headlight |
| 29 | 10A High beam right headlight |
| 30 | — |
| 31 | 15A Rear seat heaters |
| 32 | 20A Power sliding passenger seat |
| 33 | 20A Power reclining passenger seat |
| 34 | — |
| 35 | — |
| 36 | — |
We have also posted a video for this post on our YouTube channel. Watch and subscribe to the channel.
If you know how to make the material better – write in the comments.

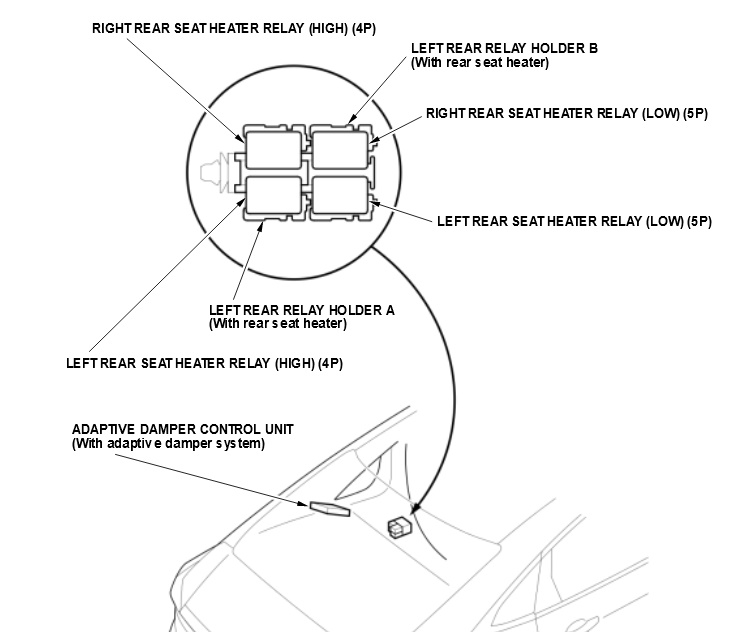

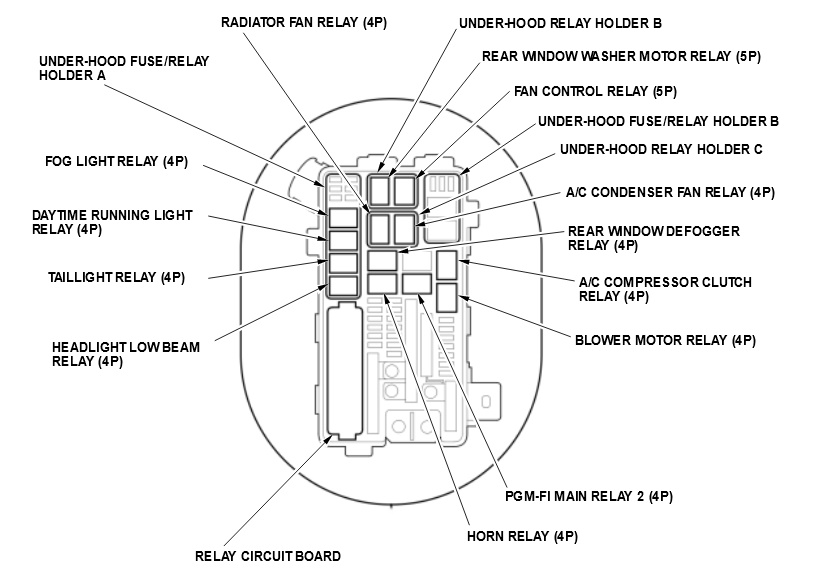

There is no information regarding the relays. Only fuses.
What’s Fuse #5 in the interior fuse box and that is labeled Option?
