The first-generation Haval F7 crossover was produced in 2018, 2019, 2020, 2021, 2022, 2023, and 2024, along with the Haval F7x crossover coupe. During this time, the model underwent a facelift. In this article, we will describe the fuses and relays for the Haval F7 and F7x 1G, with fuse box diagrams, photographs, and locations. We will highlight the fuse responsible for the cigarette lighter.
The purpose of some elements in the diagrams may differ from the one presented and depends on the year of manufacture, configuration and country of delivery. In case of difficulty, contact your nearest dealer.
Passenger compartment
It is located behind the glove compartment on the driver’s side. To access, pull firmly on the right side in the direction of the arrow.

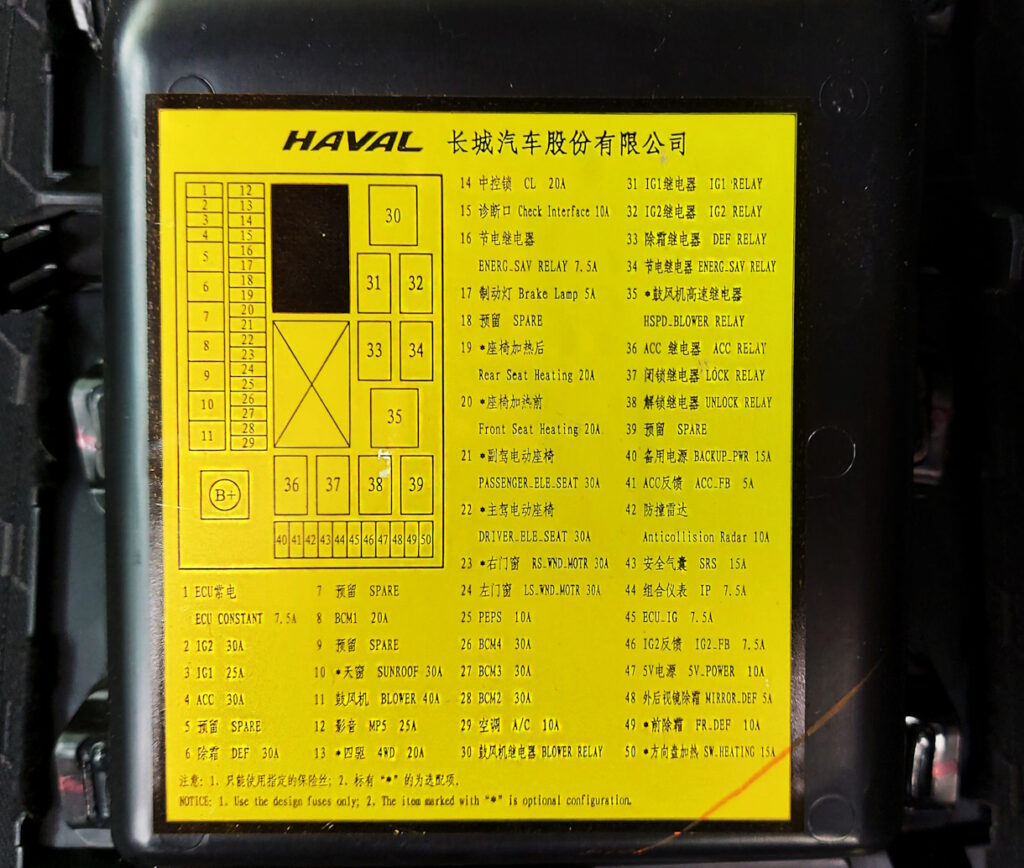

Check the purpose of the elements with your diagrams on the back of the block covers.

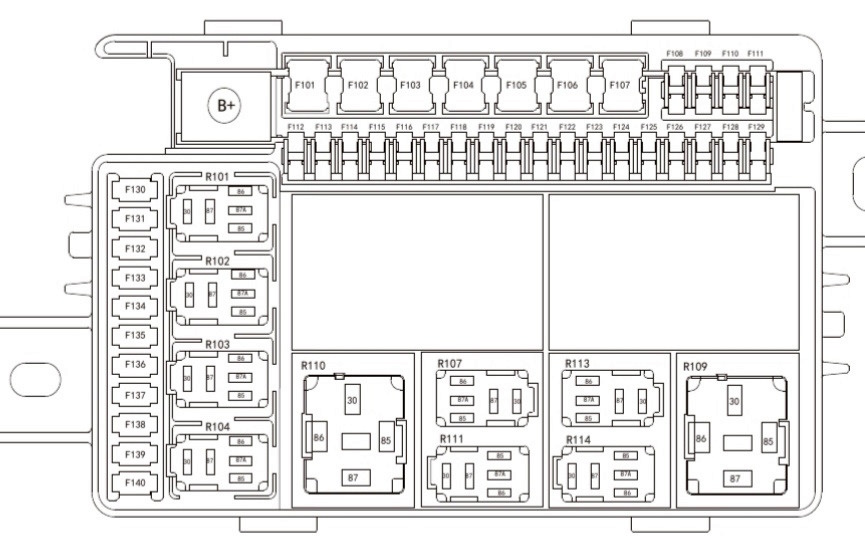

Diagram
Assignment
| F101 | Fan — 40A |
| F102 | Sunroof — 30A |
| F103 | Left Door Window — 25A |
| F104 | BCM1 — 20A |
| F105 | Right Door Window — 25A |
| F106 | Window Defogger — 30A |
| F107 | IG2 Power — 25A |
| F108 | ACC — 30A |
| F109 | IG1 Relay — 25A |
| F110 | Around View Monitor Unit — 10A |
| F111 | ECU Power — 7.5A |
| F112 | Air Conditioner — 10A |
| F113 | BCM2 — 30A |
| F114 | BCM3 — 30A |
| F115 | BCM4 — 30A |
| F116 | PEPS — 10A |
| F117 | Backup |
| F118 | Diagnostic Connector — 10A |
| F119 | Driver’s Power Seat — 30A |
| F120 | Passenger’s Power Seat — 30A |
| F121 | Front Seat Heaters — 20A |
| F122 | Rear Seat Heaters — 20A |
| F123 | Backup |
| F124 | Brake Light — 5A |
| F125 | Power Saver Relay / Interior Lights — 10A |
| F126 | PEPS — 10A |
| F127 | Central Locking — 20A |
| F128 | All-Wheel Drive Controller — 20A |
| F129 | Audio and Video System — 25A |
| F130 | Cigarette Lighter Backup Power — 15A |
| F131 | ACC Feedback — 5A |
| F132 | Collision Warning Radar — 10A |
| F133 | Airbag — 15A |
| F134 | Instrument Cluster — 7.5A |
| F135 | ECU-IG / Fuel Injection System — 7.5A |
| F136 | Feedback — 7.5A |
| F137 | Cigarette Lighter Power — 10A |
| F138 | Heated Mirrors — 10A |
| F139 | Heated Windshield — 10A |
| F140 | Heated Steering Wheel — 10A |
| R101 | ACC Relay |
| R102 | Auto Lock Relay |
| R103 | Auto Open Relay |
| R104 | Backup Relay |
| R107 | Windshield Defogger Relay |
| R109 | Blower Relay |
| R110 | High-Speed Power Relay |
| R111 | Power Saver Relay |
| R113 | Relay IG1 |
| R114 | Relay IG2 |
Fuse number 130 controls the cigarette lighter.

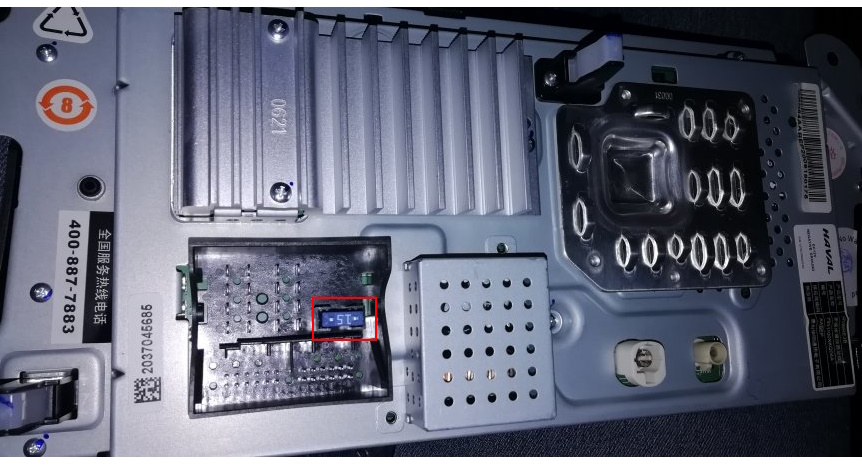

Some models may have an additional fuse installed on the back of the radio that controls its operation.
Spare fuses are located in the fuse box cover under the hood.
Engine compartment

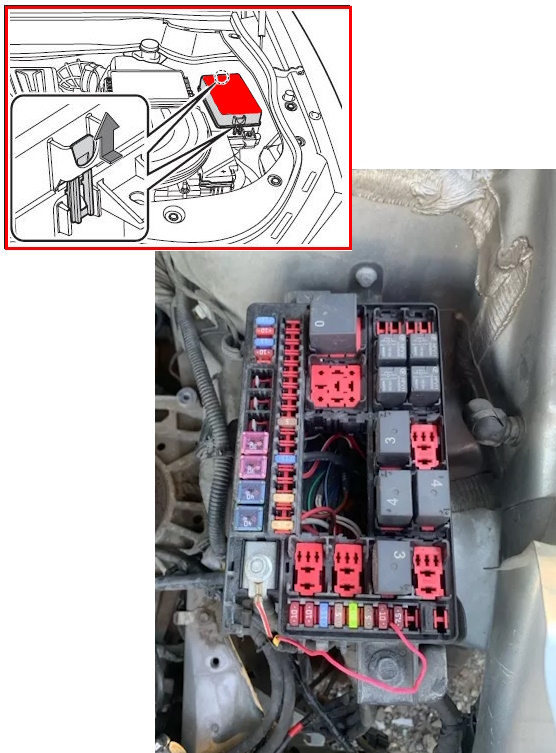

Fuse and relay box is located on the left side of the engine compartment, next to the battery and is covered by a protective cover.

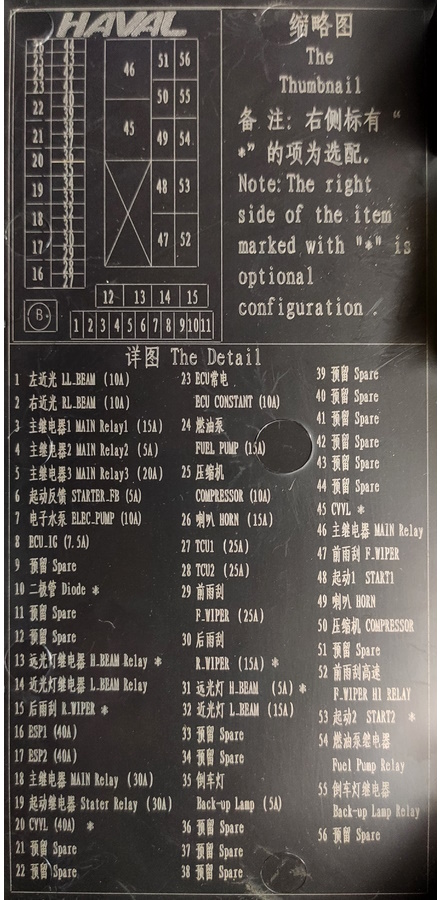

An example of the assignment from the back of the covery.

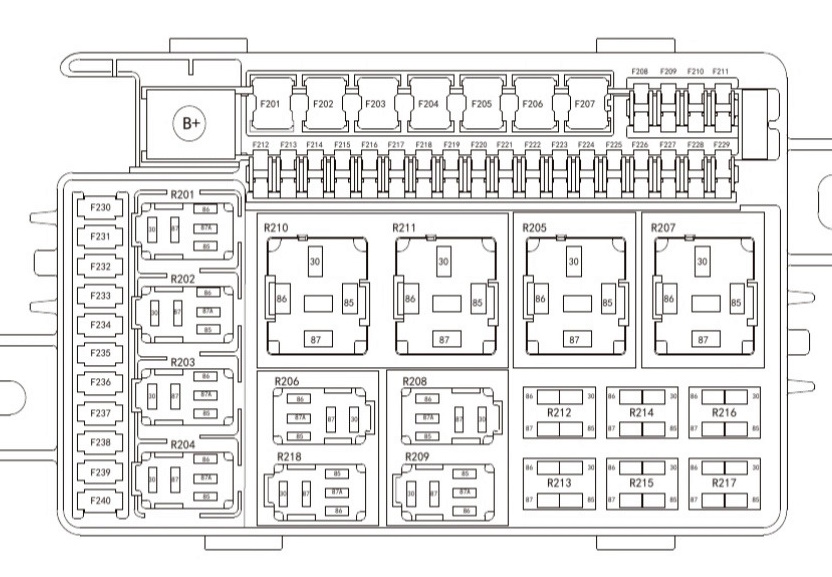

Diagram
Description
| F201 | ESP1 — 40A |
| F202 | ESP2 — 40A |
| F203 | Main Relay — 30A |
| F204 | Starter Relay — 30A |
| F205 | CVVL — 40A |
| F206 | Heated Windshield 1 — 40A |
| F207 | Heated Windshield 2 — 40A |
| F208 | Continuous Power Supply to ECU — 10A |
| F209 | Fuel Pump — 15A |
| F210 | Compressor — 10A |
| F211 | Horn / Horn — 15A |
| F212 | TCU 1 — 25A |
| F213 | TCU 2 — 25A |
| F214 | Front Wiper — 25A |
| F215 | Rear Wiper — 15A |
| F216 | High Beam — 5A |
| F217 | Low Beam — 15A |
| F218 | Reserved |
| F219 | Reserved |
| F220 | Reversing Light — 6A |
| F221 | Reserved — 40A |
| F222 | Reserved |
| F223 | Reserved |
| F224 | Reserved |
| F225 | Reserved |
| F226 | Reserved |
| F227 | Reserved |
| F228 | Reserved |
| F229 | Reserved |
| F230 | Left Low Beam Headlamp — 10A |
| F231 | Right Low Beam Headlamp — 10A |
| F232 | Main Relay 1 |
| F233 | Main Relay 2 — 5A |
| F234 | Main Relay 3 — 20A |
| F235 | Starter Relay Feedback — 5A |
| F236 | Electric Coolant Pump — 10A |
| F237 | ECU-IG — 7.5A |
| F238 | Reserved |
| F239 | ALT (LED) |
| F240 | Reserved |
| R201 | Spare Slot |
| R202 | High Beam Relay* |
| R203 | Low Beam Relay |
| R204 | Rear Wiper* |
| R205 | CVVL Relay |
| R206 | Front Wiper Relay |
| R2207 | Main Relay |
| R209 | Starter Relay* |
| R210 | Windshield Heated Relay 1 |
| R211 | Windshield Heated Relay 2 |
| R212 | Horn Relay |
| R213 | Fuel Pump Relay |
| R214 | Relay Compressor |
| R215 | Reverse Light Relay |
| R216 | Spare Socket |
| R217 | Spare Socket |
| R218 | High-Speed Front Wiper Relay |

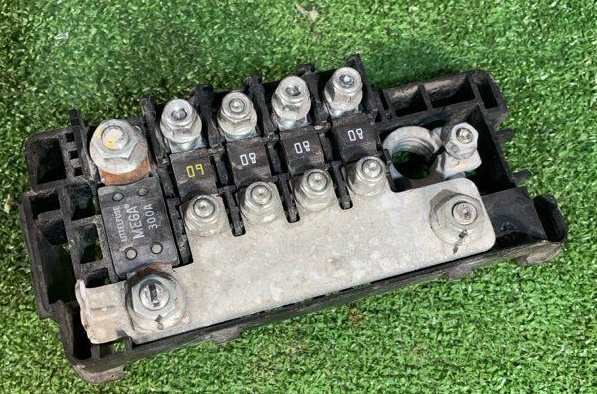

A high-power fuse block in the form of fusible links can be mounted on the positive terminal of the battery.
Designation
- 80A – Engine Compartment Fuse Box
- 120A – Instrument Panel Fuse Box
- 80A – EPS
- 60A – Electronic Fan
- 300A – Engine Starter
- 5A – Battery Sensor
We have a video on this topic on our channel – watch and subscribe.
