Shacman x3000 represents a line of 6×4 and 4×2 tractors, dump trucks, and other freight equipment that has been supplied worldwide since 2000. During this time, the model has undergone updates and restyling. In our post, you will find a description of the Shacman x3000 fuses and relays with block diagrams, their locations, and photo examples. Let’s highlight the cigarette lighter fuse.
The purpose of fuses and relays may differ from that shown and depends on the year of manufacture and the level of electrical equipment in your vehicle.
Fuse and relay box
In the passenger compartment, the main block with fuses and relays is located in the instrument panel on the passenger side, behind a protective cover.
Type 1
Photo – example
The fuse and relay numbers will be marked on the unit.
Description
| F01 | 10A 24V power supply connector |
| F02 | 10A OBD diagnostic connector |
| F03 | 5A Air conditioning controller |
| F04 | 15A 12V power supply connector |
| F05 | 5A Retarder |
| F06 | 5A Turn signal voice alert device |
| F07 | 5A Electronic parking brake |
| F08 | 10A 30+ accessory power supply connector |
| F09 | 15A 30+ ADAS power supply |
| F10 | 10A 30+ power supply (backup) |
| F11 | 15A ABS/EBS |
| F12 | 15A EBS |
| F13 | 15A ECAS |
| F14 | 15A Independent heater |
| F15 | 10A 30+ distribution block |
| F16 | 7.5A Windshield wiper motor |
| F17 | 5A Trailer clearance lights |
| F18 | 7.5A Trailer rear fog lights |
| F19 | 10A 220V inverter |
| F20 | 10A Cabin heater motor |
| F21 | 15A AMT power supply |
| F22 | 10A AMT power supply |
| F23 | 15A 30+ ADAS power supply |
| F24 | 7.5A Trailer brake lights |
| F25 | 10A DR chassis distribution box power supply |
| F26 | 15A DR ADAS power supply |
| F27 | 5A Generator |
| F28 | 10A DR backup power supply |
| F29 | 10A 15+ backup power supply |
| F30 | 10A 15+ backup power supply |
| F31 | 10A 30+ power supply diode connector fuse |
| F32 | 10A Cigarette lighter |
| F33 | 5A ACC distribution block |
| F34 | 15A ACC ADAS power supply |
| F35 | 15A ACC backup power supply |
| F36 | 10A DR ABS power supply |
| F37 | 10A DR distribution block |
| F38 | 15A DR power supply for attachment connector |
| F39 | 5A Instrument cluster |
| F40 | 10A VCU truck controller |
| F41 | 10A DCM door and air conditioning controller |
| F42 | 10A DCM door and air conditioning controller |
| F43 | 5A TXI telematics system |
| F44 | 10A Terminal computing module |
| F45 | 5A PSU key |
| F46 | 10A ESCL electronic steering column lock system |
| F47 | 5A TPMS tire pressure monitoring system |
| F48 | 5A Surround view system |
| F49 | 5A GW gateway |
| F50 | 7.5A Horn |
| F51 | 7.5A Reversing lights and trailer security |
| F52 | 15A Power supply for attachment connector relay |
| F53 | 15A D+ backup power supply |
| RLY1 | ACC power supply relay 40A |
| RLY2 | DR power supply relay 40A |
| RLY3 | D+ power supply relay 20A |
| RLY4 | Trailer rear fog light relay |
| RLY5 | Trailer brake light relay |
| RLY6 | Windscreen wiper relay |
| RLY7 | Attachment relay |
| RLY8 | Reversing and trailer security relay |
| D1 | 30+ power supply feedback signal |
| D2 | DR power supply feedback signal |
| D3 | 15+ power supply feedback signal |
| D4 | D+ power supply feedback signal |
Type 2
Photo for example
A blown fuse will be indicated by a warning light. The current fuse rating is marked on the back of the cover. Check the information against your diagrams.
Current designation
Type 3
We would be grateful if you could help us supplement the information and share your block cover diagrams or other information.

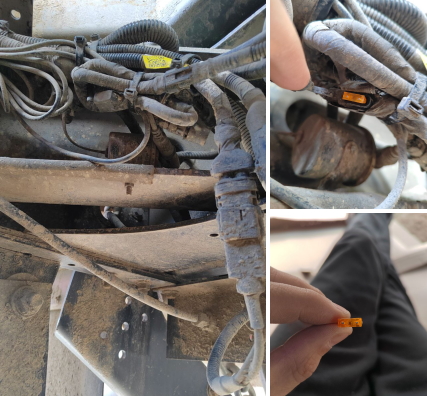

Some fuses and relays may be located outside the main block, for example, a high-power fuse block is installed next to the battery. Or in the wiring harness, a fuse is attached to the rear lights/brake lights.
