The Jetour Dasheng was produced in 2022, 2023, 2024, 2025, 2026, 2027, and 2028. It is also known as the Jetour Soueast S06. In this publication, you will find information describing the Jetour Dashing fuses and relays, including fuse box diagrams, their locations, and photo examples. We will highlight the fuse responsible for the cigarette lighter.
The purpose of fuses and relays may differ from those presented and depend on the year of manufacture, the level of electrical equipment and the region of delivery of your vehicle.
Passenger compartment

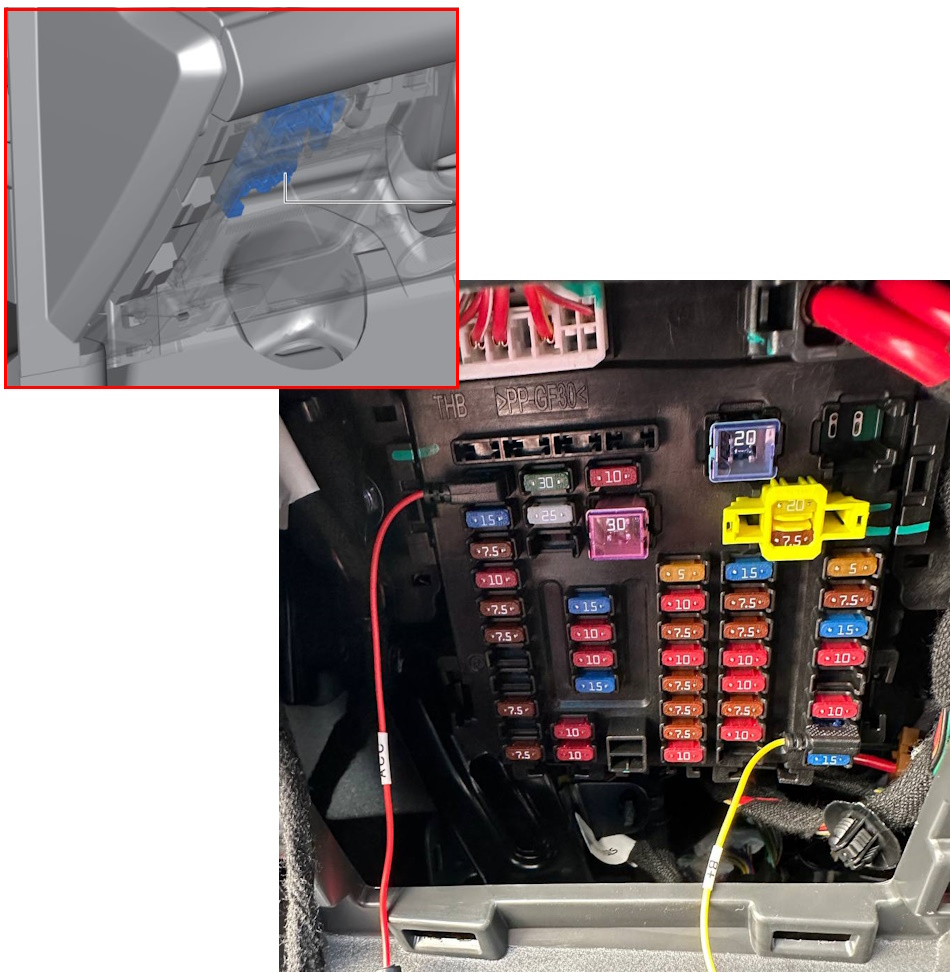

Inside the car, the fuse and relay box is located at the bottom of the instrument panel behind a plastic protective cover.
To access it, you need to remove the speaker cover (start with the two latches at the bottom, see photo below) or remove the entire bottom panel.

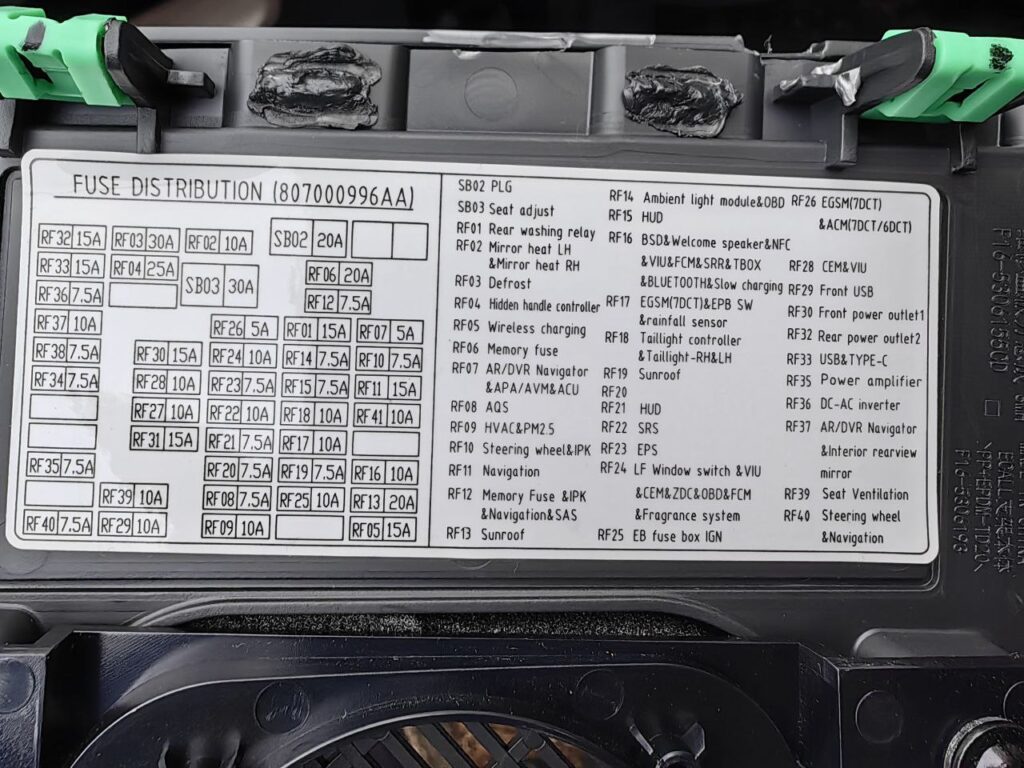

Check the assignment of the components against your diagrams on the back of the protective cover.

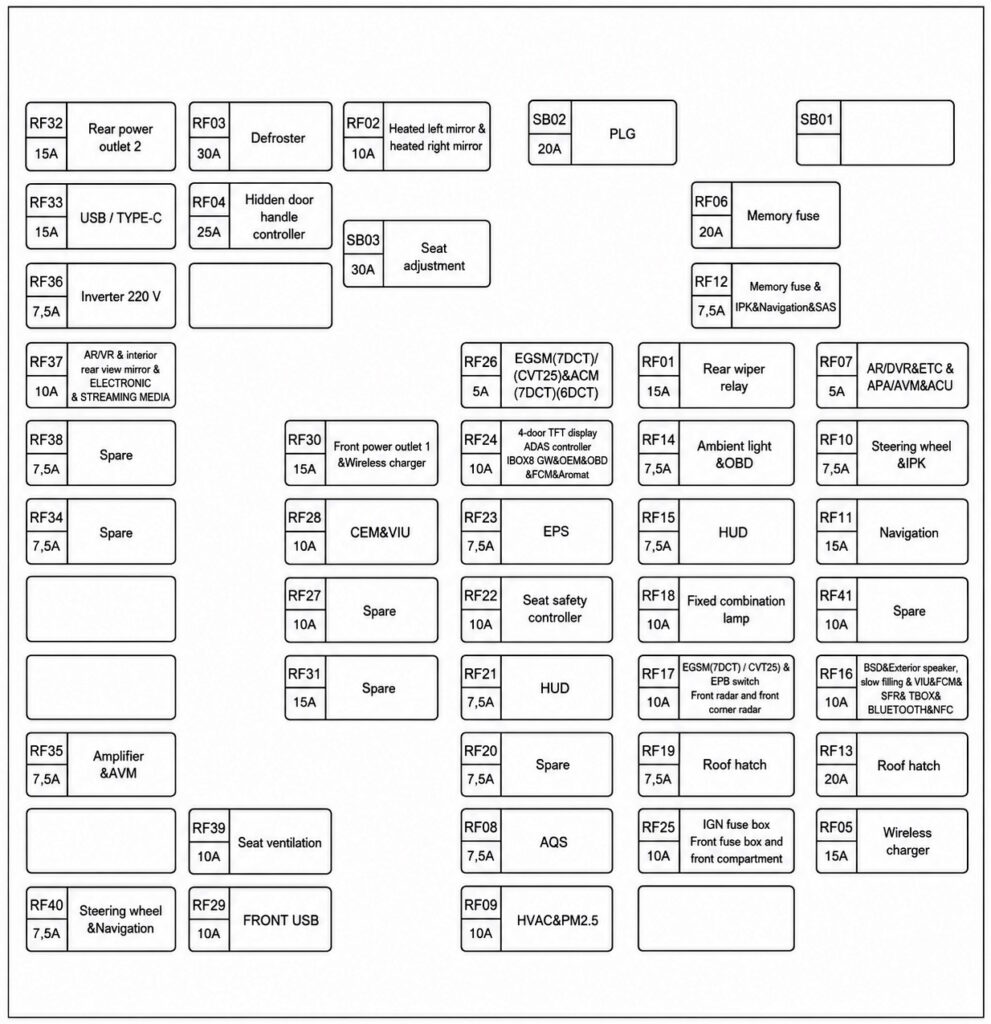

Diagram
Assignment
| RF01 | 15A — Rear Window Wiper Relay |
| RF02 | 10A — Left and Right Outside Mirror Heated |
| RF03 | 30A — Rear Window Defroster |
| RF04 | 25A — Hidden Door Handle Controller |
| RF05 | 15A — Wireless Phone Charger |
| RF06 | 20A — Memory Fuse — Storing Electronic System Settings |
| RF07 | 5A — AR/DVR, Navigation, APA/AVM/ACU — Dashcam, navigation, automatic parking, surround view cameras, and associated driver assistance systems |
| RF08 | 7.5A — AQS (Air Quality Sensor) — In-cabin air quality sensor |
| RF09 | 10A — HVAC & PM2.5 — Climate control and fine particulate air control |
| RF10 | 7.5A — Steering Wheel and IPK — Steering Wheel Controls and Instrument Cluster |
| RF11 | 15A — Navigation System |
| RF12 | 7.5A — SAS / IPK / Navigation — Steering Angle Sensor, Instrument Cluster, and Navigation |
| RF13 | 20A — Sunroof |
| RF14 | 7.5A — Ambient Light / OBD — ambient interior lighting and vehicle diagnostic socket |
| RF15 | 7.5A — HUD (Head-Up Display) — head-up display |
| RF16 | 10A — BSD / VIU / FCM / SRR / T-BOX / Bluetooth / NFC — blind spot monitoring, vehicle interface module, collision avoidance, side radars, telematics, Bluetooth and NFC |
| RF17 | 10A — EGSM / EPB / radars — electronic gear shift, electronic handbrake and front/corner radar |
| RF18 | 10A — Taillight Controller — rear and combination lighting control |
| RF19 | 7.5A — Rain sensor / Sunroof |
| RF20 | 7.5A — Spare fuse |
| RF21 | 7.5A — HUD (Head-Up Display) — head-up display |
| RF22 | 10A — SRS (Supplemental Restraint System) — Airbags, seat belt pretensioners, and SRS unit |
| RF23 | 7.5A — EPS (Electric Power Steering) — Electric Power Steering |
| RF24 | 10A — TFT / ADAS / CEM / OBD / FCM — Display, Driver Assistance Systems, Central Body Electronics, Forward Collision Prevention and Diagnostics |
| RF25 | 10A — IGN — Power Supply Circuit for Systems with Ignition On, Front Compartment Fuse and Relay Box |
| RF26 | 5A — EGSM / ACM — Electronic Shift Control and Related Electronic Systems Control Module |
| RF27 | 10A — Spare Fuse |
| RF28 | 10A — CEM / VIU — Central Body Electronics and Vehicle Interface Module |
| RF29 | 10A — Front USB |
| RF30 | 15A — Front Power Outlet 1 / Wireless Charging |
| RF31 | 15A — Spare Fuse |
| RF32 | 15A — Rear Power Outlet 2 |
| RF33 | 15A — Rear USB / Type-C |
| RF34 | 7.5A — Spare Fuse |
| RF35 | 7.5A — Amplifier / AVM — Audio system amplifier and 360° surround view system |
| RF36 | 7.5A — DC-AC Inverter 220V — Power converter for 220V voltage |
| RF37 | 10A — AR/DVR / Navigation / Interior Mirror / ETC — Dashcam, navigation, interior rearview mirror, and electronic toll system |
| RF38 | 7.5A — Spare Fuse |
| RF39 | 10A — Electric Seat Adjustment / Ventilation |
| RF40 | 7.5A — Steering Wheel / Navigation |
| RF41 | 10A — Spare Fuse |
| SB01 | — — Spare / Not Used |
| SB02 | 20A — PLG (Power Liftgate) — Electric Tailgate / Trunk Lid |
| SB03 | 30A — Electric Seat Adjustment |
Fuses 30 and 32 are responsible for the operation of the cigarette lighters.
Engine compartment

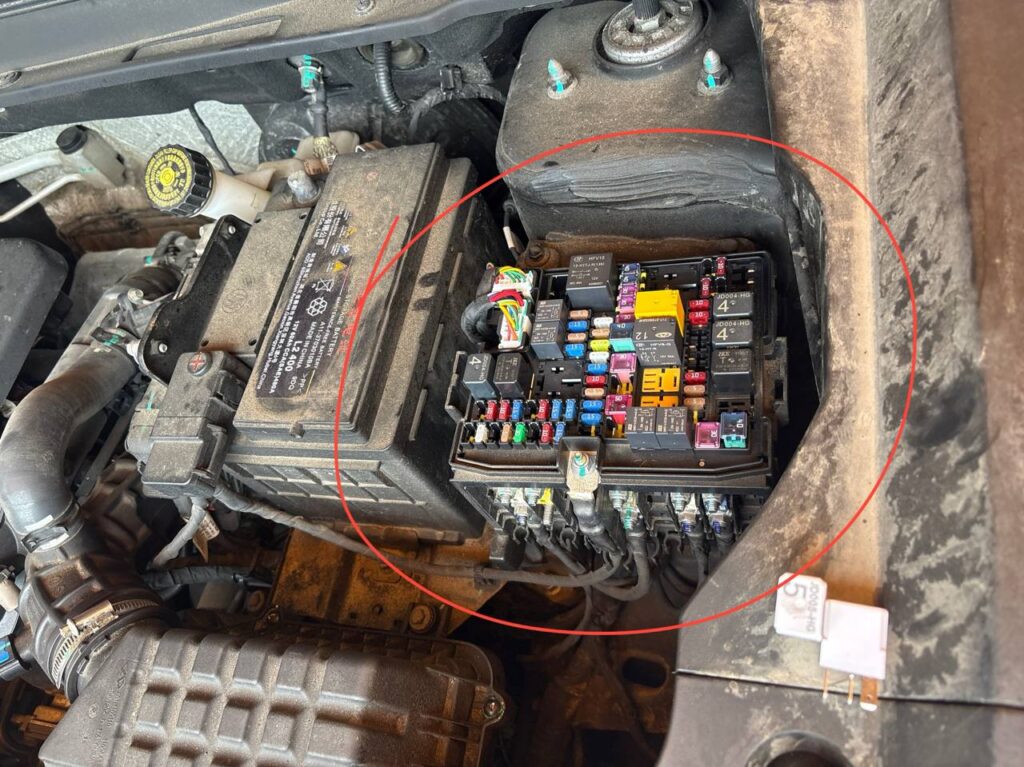

Under the hood, in the engine compartment, the main block with fuses and relays is located on the left side, next to the battery and is covered with a protective cover.

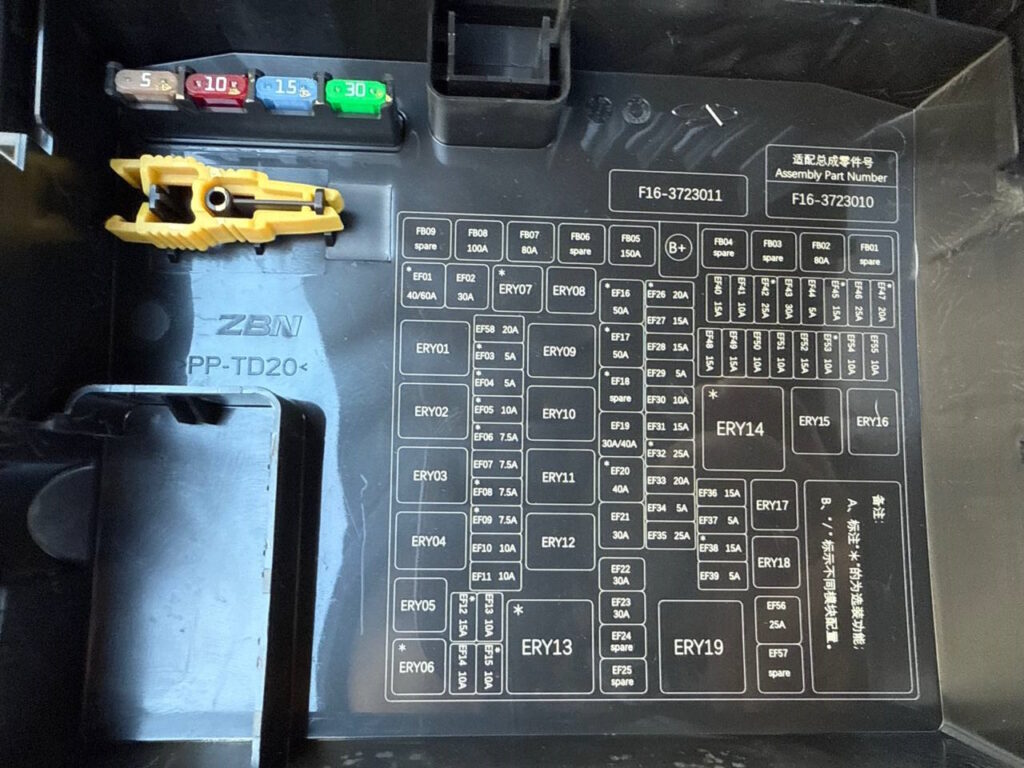

Block cover diagram

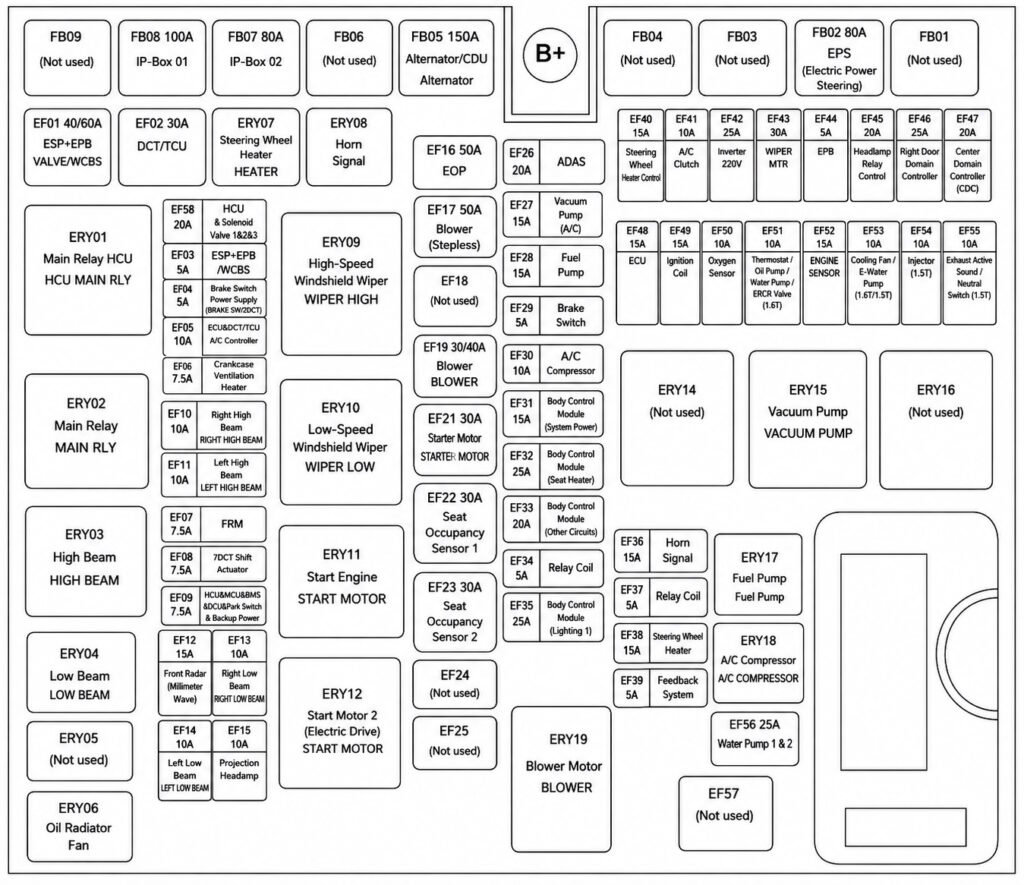

Diagram
Description
| FB01 | Not Used |
| FB02 | 80A — Electronic Power Steering (EPS) |
| FB03 | Not Used |
| FB04 | Not Used |
| FB05 | 150A — Alternator |
| FB06 | Not Used |
| FB07 | 80A — Instrument Cluster Fuse and Relay Box 1 |
| FB08 | 100A — Instrument Cluster Fuse and Relay Box 2 |
| FB09 | Not Used |
| EF01 | 40A — ESP Controller — Electronic Stability Program |
| EF02 | 30A — TCU — Automatic Transmission Control Unit |
| EF03 | 5A — ESP Controller — Electronic Stability Program |
| EF04 | 5A — Brake Pedal Switch |
| EF05 | 10A — ECU / TCU — Engine and Transmission Control Unit |
| EF06 | 7.5A — Crankshaft Ventilation Heater / A/C High-Low Pressure Switch |
| EF07 | 7.5A — FRM / Front Millimeter Wave Radar — Body Function Control Module and ADAS Front Radar |
| EF08 | 7.5A — 7DCT Shift Actuator — Automatic Transmission Actuator |
| EF09 | Not Used |
| EF10 | 10A — Right High Beam Light |
| EF11 | 10A — Left High Beam |
| EF12 | Not Used |
| EF13 | 10A — Right Low Beam |
| EF14 | 10A — Left Low Beam |
| EF15 | Not Used |
| EF16 | Not Used |
| EF17 | 50A — High Speed Cooling Fan (1.5T) / Cooling Fan (1.6T) |
| EF18 | 40A — Low Speed Cooling Fan (1.5T) |
| EF19 | 30A — Cooling Fan |
| EF20 | 40A — ESP Controller |
| EF21 | 30A — Starter |
| EF22 | 30A — CEM — Central Electronic Module |
| EF23 | 30A — CEM — Central Electronic Module |
| EF24 | Not Used |
| EF25 | Not Used |
| EF26 | 20A — ADAS Controller |
| EF27 | 15A — Electric Vacuum Pump |
| EF28 | 15A — Fuel Pump |
| EF29 | 5A — Brake Lights |
| EF30 | 10A — A/C Compressor |
| EF31 | 15A — CEM — Central Electronic Module |
| EF32 | 25A — CEM — Central Electronic Module |
| EF33 | 20A — CEM — Central Electronic Module |
| EF34 | 5A — ECU / Windshield Wiper / High and Low Beam Relay Coil |
| EF35 | 25A — CEM — Central Electronic Module |
| EF36 | 15A — Horn |
| EF37 | 5A — Oil Pump / Compressor / Vacuum Pump / High and Low Fan Relay Coil (1.5T) |
| EF38 | 15A — Heated Steering Wheel |
| EF39 | 5A — Feedback System |
| EF40 | 15A — CEM — Central Electronic Module |
| EF41 | 10A — ECU / TCU — Engine and Transmission Control Unit |
| EF42 | 25A — 220V Inverter |
| EF43 | 30A — Front Wiper |
| EF44 | 5A — EPB Switch / Millimeter Wave Radar — Electronic Handbrake and ADAS Radar |
| EF45 | Not Used |
| EF46 | 25A — Right Domain Controller — Right Zone Electronic Controller |
| EF47 | 20A — 7DCT Shift Actuator |
| EF48 | 15A — ECU — Vehicle/Engine Electronic Control Unit |
| EF49 | 15A — Ignition Coil |
| EF50 | 10A — Oxygen Sensor (O₂) |
| EF51 | 10A — Electronic Thermostat (1.6T) / Variable Oil Pump (1.6T) / Switchable Water Pump (1.6T) / ERCV Valve (1.6T) |
| EF52 | 15A — Carbon Canister / Intake VCT / Outlet / Crankcase Ventilation Heater / ERCV Valve / Electronic Thermostat |
| EF53 | 10A — Cooling Fan (1.6T) / Electronic Water Pump (1.5T) |
| EF54 | 15A — Injectors (1.5T) |
| EF55 | 10A — Active Exhaust Sound / Neutral Switch (1.5T) |
| EF56 | Not Used |
| EF57 | Not Used |
| EF58 | Not Used |
| RY01 | HCU Main Relay — HCU (hydraulic/hybrid control unit) main relay |
| ERY02 | Main Relay — vehicle power main relay |
| ERY03 | High Beam Relay |
| ERY04 | Low Beam Relay |
| ERY05 | Not Used |
| ERY06 | Oil Radiator Fan Relay |
| ERY07 | Steering Wheel Heater Relay |
| ERY08 | Horn Relay |
| ERY09 | High-Speed Windshield Wiper Relay |
| ERY10 | Low-Speed Windshield Wiper Relay |
| ERY11 | Starter Motor Relay |
| ERY12 | Starter Motor 2 / Electric Drive — second starter / electric drive relay Drive |
| ERY13 | Not used |
| ERY14 | Not used |
| ERY15 | Vacuum Pump Relay |
| ERY16 | Not used |
| ERY17 | Fuel Pump Relay |
| ERY18 | A/C Compressor Relay – air conditioning compressor relay |
| ERY19 | Blower Motor Relay – heater/air conditioning fan motor relay |
