Nissan Tiida – fuse and relay

Nissan Tiida is a compact car of the C-segment. The first generation C11 was produced in 2004, 2005, 2006, 2007, 2008, 2009 and 2010. The second generation C12 was produced in 2011, 2012, 2013 and 2014. From 2015 to the present, the third generation C13 is on sale. This article will offer information about the fuse and relay boxes in Nissan Tiida with photographs, diagrams and a designation of the purpose of their elements. We also note the fuse responsible for the cigarette lighter.

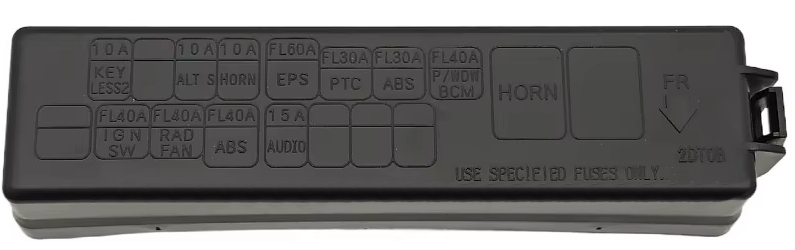

Check the fuse assignment with the diagrams on the back of the protective cover.

Passenger compartment

It is located in the dashboard behind the protective cover on the driver’s side.

Block access

Type 1

The photo

Photo block diagram under the hood


110A Passive safety system
210A Additional interior equipment
310A Instrument cluster
415A Washer glass pump
510A Heated exterior mirrors
610A Power mirrors, audio head unit
710A Stop lights
810A Interior lighting
910A Body control unit
1110A Side light bulb, right rear light
1210A Side light bulb, left rear light
1310A Instrument cluster
1410A Additional interior equipment
1515A Engine cooling fan motor
1610A Heating, air conditioning and ventilation system
1715A Engine cooling fan motor
1915A Socket for connecting additional equipment ( cigarette lighter )

The fuse number 19 at 15A is responsible for the cigarette lighter.


  • R1 – Electric fan heater
  • R2 – Additional equipment
  • R3 – Relay (no data)
  • R4 – Heated exterior mirrors
  • R5 – Immobilizer

Type 2


Inside Nissan Tiida Option 2


  1. 10A Audio system, Audio-Acc mirror drive, power supply for rotary mirror motors, NATS power supply (with chip key)
  2. 10A Heated rear window and side mirrors
  3. 15A Front and rear window washer motor
  4. 10A Instrument panel
  5. 10A Electronics
  6. 10A Airbag module
  7. 10A Electronics
  8. 10A Interior and trunk lighting
  9. 10A stop lamps
  10. 10A Passive Entry (For Chip Key Systems)
  11. 10A Electronics
  12. 15A Socket – cigarette lighter
  13. 10A Heated seats
  14. 15A Socket – console, trunk
  15. 15A Heater / air conditioner fan
  16. 10A Air Conditioner
  17. 15A Heater / air conditioner fan

For the cigarette lighter, fuses 15 and 17 are responsible for 15A.

Engine compartment

In the engine compartment next to the battery there are 2 fuse and relay boxes, one additional relay box and high-power fuses on the battery positive terminal.

Mounting box

Type 1


Mounting block Option 1


120A Heated tailgate glass
320A Engine control unit
530A Windshield washer
710A A / C Compressor Electromagnetic Clutch
810A License plate lamps
915A Nissan Tiida fog lamp fuse (optional)
1015A Low beam lamp, left headlamp
1115A Low beam lamp, right headlamp
1210A High beam lamp, right headlamp
1310A High beam lamp, left headlamp
1610A Oxygen concentration sensors in exhaust gases
1710 Injection system
1915A Fuel module
2010A Automatic transmission sensor
2110А ABS
2210A Reversing light switch
2415A Optional equipment
R1Heated rear window relay
R2Cooling fan relay
R3Cooling fan relay
R4Ignition system relay

Type 2

access to block 2



  • 43 (10A) Front high beam headlamp, right
  • 44 (10A) Front high beam headlamp, left
  • 45 (10A) Air conditioner, standard music lights and right dimensions, lights, headlight adjustment motors
  • 46 (10A) Parking lighting, lighting switches under. seats, door opening
  • 48 (20A) Windshield wiper motor
  • 49 (15A) Left low beam headlamp
  • 50 (15A) Front low beam headlamp, right
  • 51 (10A) Air conditioning compressor
  • 55 (15A) Heated rear window
  • 56 (15A) Heated rear window
  • 57 (15A) Gasoline pump (CH)
  • 58 (10A) Power supply for automatic transmission systems (AT)
  • 59 (10A) ABS control unit
  • 60 (10A) Additional electrical
  • 61 (20A) To terminal B + IPDM, Throttle valve motor and relay (for CH)
  • 62 (20A) To terminal B + IPDM, to the ECM / PW and BATT terminals of the ECM © block, the power supply terminal of the ignition coils, DPKV, DPRV, EVAP Canister valve, IVTC valve
  • 63 (10A) Oxygen sensors
  • 64 (10A) Injector coils, injection system
  • 65 (20A) Front fog lights
  • R1 – Rear window defogger relay
  • R2 – Main relay of the engine control unit
  • R3 – Relay low beam headlights
  • R4 – High beam relay
  • R5 – Starter relay
  • R6 – Relay for fan 2 of the engine cooling system
  • R7 – Relay for fan 1 of the engine cooling system
  • R8 – Relay for fan 3 of the engine cooling system
  • R9 – Ignition relay

Additional fuse box


Additional fuse box for nissan tiida


110A Immobilizer
210A Heated seats
310A Generator
410A Buzzer
560/30 / 30A Control unit for electric power steering, headlight washer glass, ABS system
650A Electric drive glass lifters
815A Diesel injection system
910A Throttle assembly
1015A Head unit of audio systems
1140/40 / 40A ABS system. body electrical control unit, ignition system
R1Horn relay

Additional relay box

Located on the right side. It is possible to install 2 relays, for example a wiper and a daytime light. Depending on the configuration, they may be empty.

additional relay box

Fuses on the battery terminal


battery terminal block


  1. 120A Electric power steering control unit, headlight washer, ABS system
  2. 60A Engine control unit, throttle relay, power window relay
  3. 80A Low and high beam headlamps
  4. 80A Immobilizer, seat heating, generator, sound signal
  5. 100A ABS system, body control unit, ignition system, power steering control unit, headlight washer

The wiring diagrams of the third generation C13 fuse boxes differ from those presented.  They are very similar to the 2nd generation Nissan Note .

On our YouTube channel, we also posted a video. Watch and subscribe.

This material requires supplementation, so we will be glad if you share your information with the description of the boxes in the latest generation of Nissan Tiida.
