Nissan Frontier 1 generation was produced in 1998, 1999, 2000, 2001, 2002, 2003, 2004 with the designation D22. During this time, the model received an update. In this post you can find a description of the fuses and relays Nissan Frontier 1G with fuse box diagrams, their locations and photo examples of execution. Note the fuse responsible for the cigarette lighter.
Purpose of fuses and relays may differ from that described here and depends on the year of manufacture and the level of electrical equipment in your vehicle.
Passenger compartment

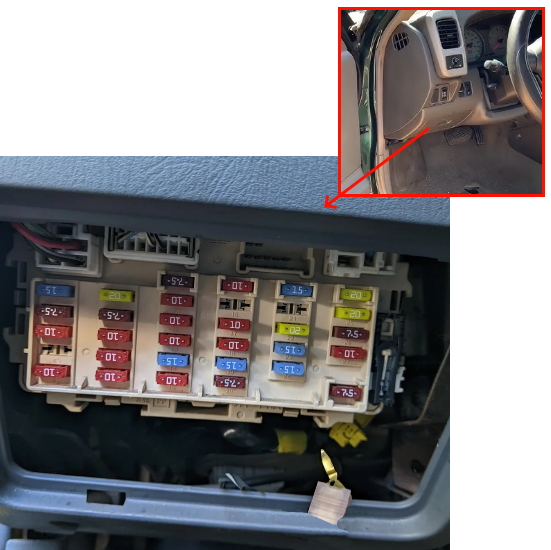

In the passenger compartment, the fuse box with fuses and relays is located at the bottom of the dashboard behind the glove compartment.
Photo for example

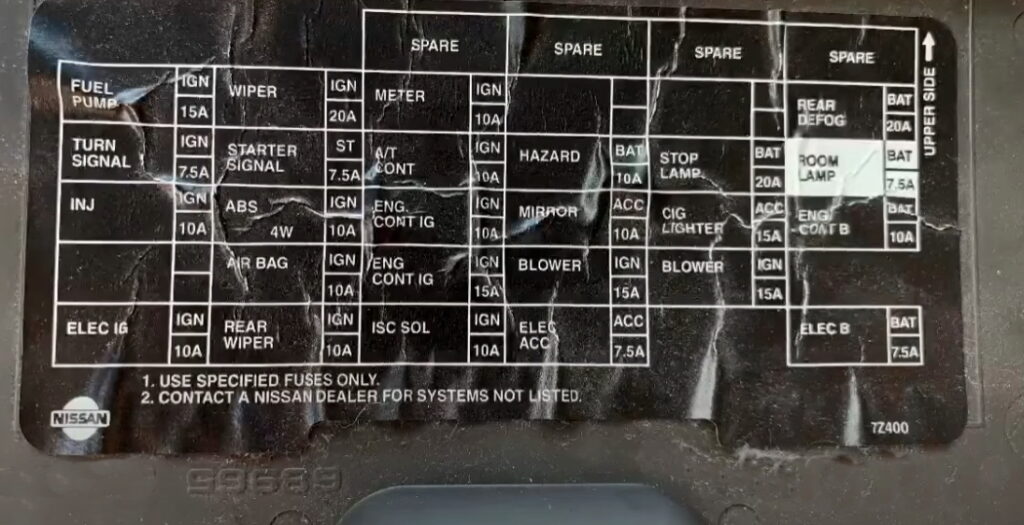

Check the actual description with yours on the back side of the protective cover.

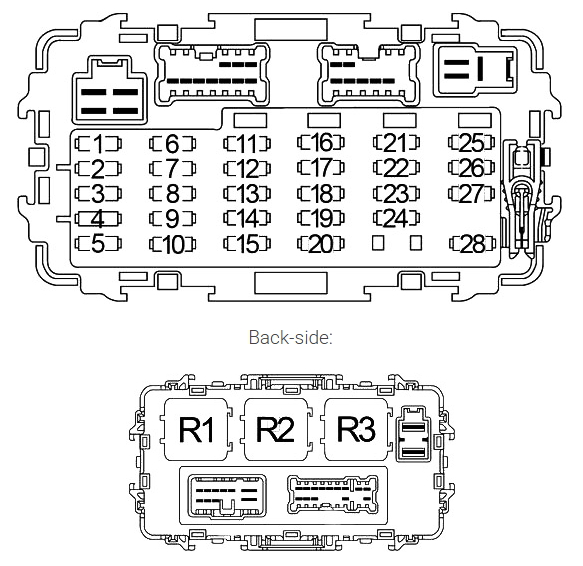

Diagram
Assignment
| 1 | 15A Fuel Pump Relay |
| 2 | 7,5A Hazad Switch |
| 3 | 10A Injectors |
| 4 | – |
| 5 | 10A 2001-2004: ASCD Brake Switch (Shift Lock Brake Switch), Vehicle Security Relay, SECU, ASCD Control Unit, Warning Chime Unit, Rear Window Defogger Relay, Rear Window Defogger Timer, Low Tire Pressure Warning System, Daytime Light Control Unit, Overdrive Hold Control Module (KA24DE + Automatic Transmission) |
| 7,5A 1999-2000: ASCD Brake Switch (Shift Lock Brake Switch), Theft Warning Relay, SECU, ASCD Main Switch, Warning Chime Unit, Power Window Relay, Daytime Light Control Unit | |
| 6 | 20A Front Wiper Motor, Front Washer Motor, Front Wiper Switch |
| 7 | 7,5A Engine Control Module (ECM), Daytime Light Control Unit |
| 8 | 10A ABS, Pressure Switch |
| 9 | 10A Air Bag Diagnosis Sensor Unit |
| 10 | 10A Rear Wiper Motor, Rear Washer Motor |
| 11 | 10A Combination Meter, Clutch Interlock Relay, 4WD Switch, Back-Up Lamp Switch, Transfer Neutral Position Switch, CAN Converter, Steering Wheel Angle Sensor, Compass and Thermometer, Data Link Connector |
| 12 | 10A Park/Neutral Position Switch, Transmission Control Module (TCM) |
| 13 | 10A Engine Control Module (ECM), EGRC Solenoid Valve, EVAP Canister Vent Control Valve, Vacuum Cut Valve Bypass Valve, Supercharger Bypass Valve Control Solenoid Valve, Map/Baro Switch Solenoid Valve |
| 14 | 15A Heated Oxygen Sensor |
| 15 | 10A IACV-AAC Valve, Throttle Position Sensor |
| 16 | – |
| 17 | 10A Hazard Switch, Multi-Remote Control Relay (1999-2000) |
| 18 | 10A Audio, Door Mirror Switch, Power Socket Relay (1999-2001) |
| 19 | 15A Blower Motor |
| 20 | 7,5A Low Tire Pressure Warning System (2003-2004), SECU |
| 21 | 15A 1999-2001: Rear Window Defogger Relay |
| 22 | 20A Stop Lamp Switch, Trailer Tow Control Unit |
| 23 | 15A Cigarette Lighter |
| 24 | 15A Blower Motor |
| 25 | 15A 1999-2001: Rear Window, Rear Window Defogger Relay |
| 20A 2002-2004: Rear Window Defogger Relay | |
| 26 | 7,5A Data Link Connector, Map Lamp, Room Lamp, Low Tire Pressure Warning System (2003-2004) |
| 27 | 10A Engine Control Module (ECM), ECM Relay (ECCS Relay) |
| 28 | 7,5A Combination Meter, Key Switch, Security Indicator Lamp, SECU, Transmission Control Module (TCM) |
| Relay | |
| R1 | Accessory |
| R2 | Blower |
| R3 | Ignition |
Fuse number 23 is responsible for the cigarette lighter.
Engine compartment

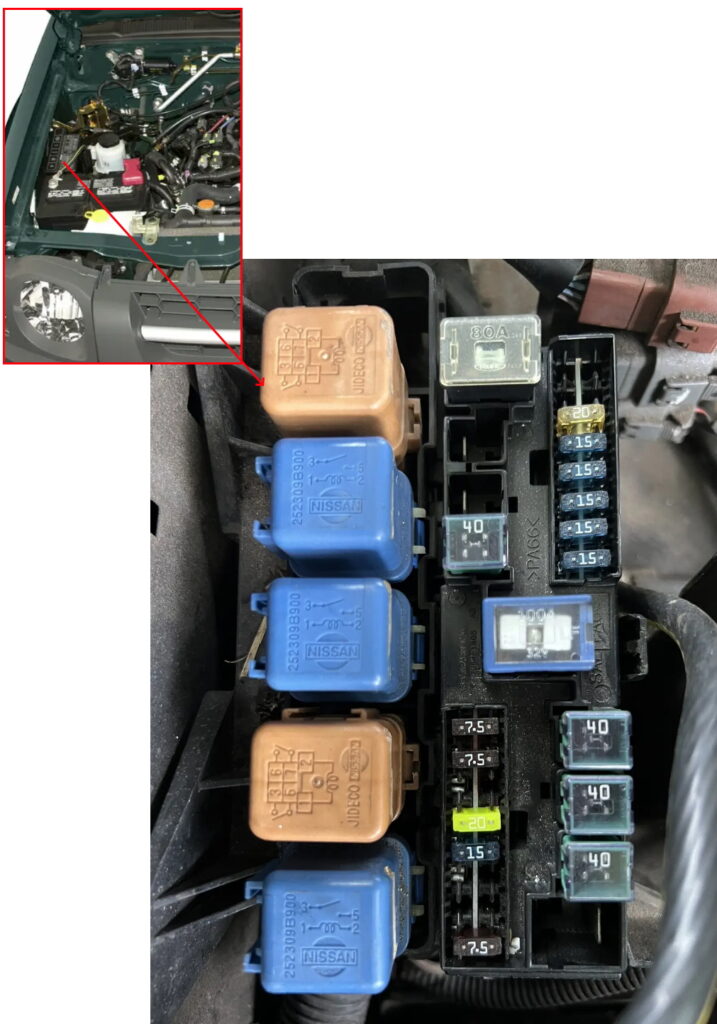

Under the hood on the left side of the engine compartment is a fuse box with fuses and relays.
Covery Diagram

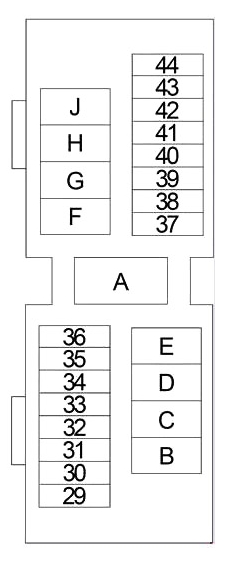

Diagram
Designation
| 29 | 7,5A Air Conditioner Relay, Daytime Light Control Unit (2003-2004), Thermo Control Amplifier (1999-2000), Air Conditioner Switch (1999-2000) |
| 30 | – |
| 31 | 20A 2003-2004: Auxiliary Power Supply |
| 7,5A 1999-2000: Theft Warning Horn Relay, Theft Warning Lamp Relay | |
| 32 | 15A 2001-2004: Horn Relay |
| 10A 1999-2000: Horn Relay | |
| 33 | 20A 2002-2004: Audio Amplifier |
| 34 | 15A 2002-2004: Rear Power Socket |
| 35 | 7,5A Air Conditioner Relay |
| 36 | 7,5A Generator |
| 37 | 15A Headlamp RH, Lighting Switch, Daytime Light Control Unit, Vehicle Security Lamp Relay |
| 38 | 15A Headlamp LH, Lighting Switch, Daytime Light Control Unit, Vehicle Security Lamp Relay, High Beam Indicator |
| 39 | 15A Lighting Switch |
| 40 | 15A Front Fog Lamp Relay |
| 41 | 15A Audio |
| 42 | 20A Front Power Socket |
| 43 | – |
| 44 | – |
| A | 80A KA24DE: Generator, Ignition Relay (Fuse: “2”, “5”, “6”, “8”, “10”, “11”, “12”, “15”), Fuse: “F”, “G”, “17”, “22”, “25”, “26”, “27”, “28”, “31”, “32”, “33”, “34”, “35”, “36” |
| 120A 2003-2004 (VG33E, VG33ER): Generator, Fuse: “F”, “G”, “J”, “31”, “32”, “33”, “34”, “35”, “36” | |
| 100A 1999-2002 (VG33E, VG33ER): Generator, Fuse: “F”, “G”, “J”, “31”, “32”, “35”, “36” | |
| B | 80A Accessory Relay (Fuse: “18”, “20”, “23”), Blower Relay (Fuse: “19”, “24”) |
| C | 40A KA24DE (2003-2004): ABS |
| 30A ABS | |
| D | 40A ABS |
| E | 40A Ignition Switch |
| F | 30A 2003-2004 KA24DE: SECU, Power Window Relay |
| 40A 1999-2004: SECU, Power Window Relay | |
| G | 20A 2003-2004: Auxiliary Power Supply |
| 20A Cooling Fan Relay | |
| H | – |
| J | – |
| 80A VG33E, VG33ER: Ignition Relay (Fuse: “2”, “5”, “6”, “8”, “10”, “11”, “12”, “15”), Fuse: “31”, “32”, “33”, “35”, “36” |
Relays
