The second-generation Chevrolet Trax was produced in 2023, 2024, 2025, 2026, 2027, 2028, and 2029. During this time, the model received an update. It is also known as the Chevrolet Seeker. In this article, we will describe the fuses and relays in the Chevrolet Trax 2G, including fuse box diagrams, their locations, and photo examples. We will highlight the fuse responsible for the cigarette lighter.
The design of the fuse and relay boxes and the assignment of fuses and relays may differ from that shown and depends on the year of manufacture and the level of electrical equipment in your vehicle.
Engine compartment

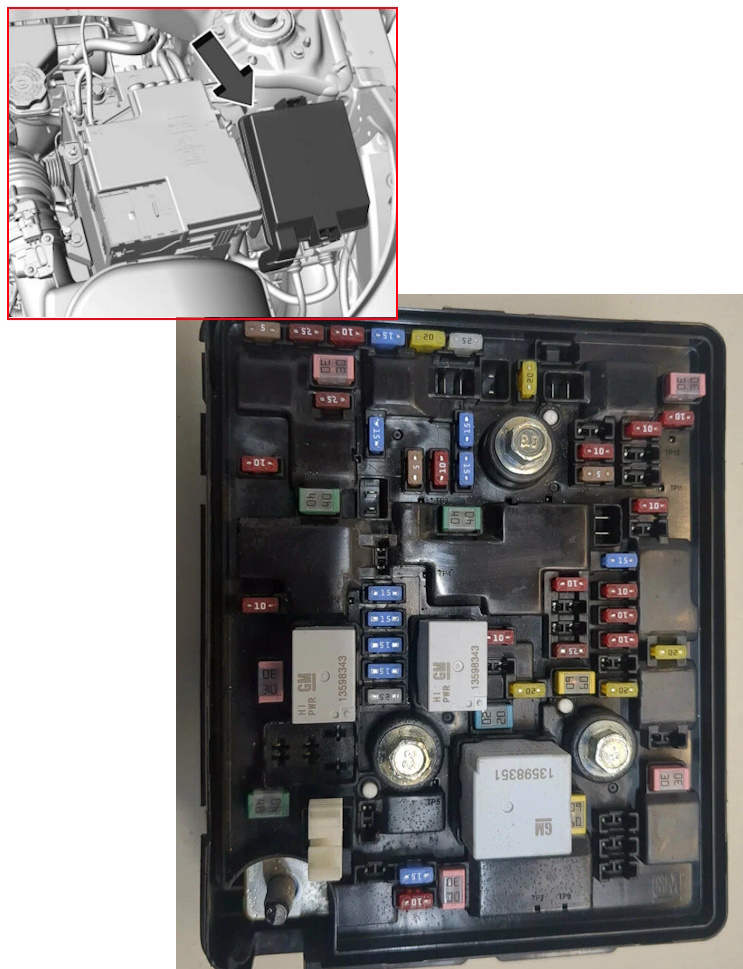

Under the hood in the engine compartment, the main fuse and relay box is located on the left-hand side, next to the battery.

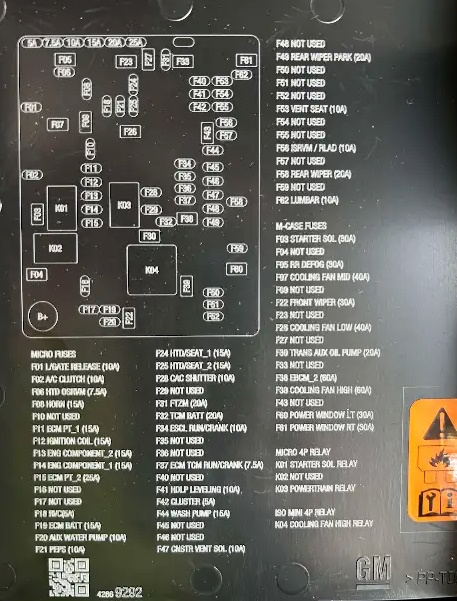

Check the assignment with your diagrams from the block cover.

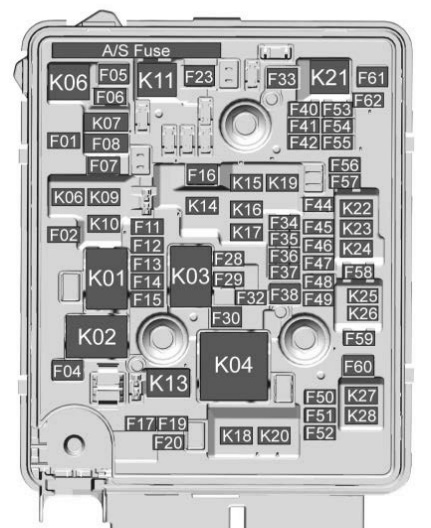

Diagram
Designation
| F01 | L/GATE RELEASE – Liftgate Release |
| F02 | A/C CLUTCH – Air Conditioning Clutch |
| F06 | HTD OSRVM – Heated Outside Rear View Mirror |
| F08 | HORN |
| F10 | – |
| F11 | ECM PT1 – Electronic Control Module Powertrain 1 |
| F12 | IGNITION COIL |
| F13 | ENG COMPONENT 2 |
| F14 | ENG COMPONENT 1 |
| F15 | ECM PT 2 – Electronic Control Module Powertrain 2 |
| F16 | – |
| F17 | – |
| F18 | RVC – Rear camera |
| F19 | ECM BATT – Electronic Control Module Battery |
| F20 | AUX WATER PUMP – Auxiliary Water Pump |
| F21 | PEPS – Keyless entry and start |
| F24 | HEATER SEAT1 |
| F25 | HEATER SEAT2 |
| F28 | CAC SHUTTER |
| F29 | – |
| F31 | FTZM – Fuel Tank Zone Module |
| F32 | TCM BATT – Traction Control Module Battery |
| F34 | ESCL RUN/CRANK – Electric Steering Column Lock Run/Crank |
| F35 | – |
| F36 | – |
| F37 | ECM TCM RUN/CRANK – Electronic Control Module Traction Control Module Run/Crank |
| F40 | – |
| F41 | HDLP LEVELING – Headlight Leveling |
| F42 | CLUSTER |
| F44 | WASH PUMP |
| F45 | – |
| F46 | – |
| F47 | CNSTR VENT SOL – Canister Vent Solenoid |
| F48 | – |
| F49 | REAR WIPER PARK |
| F50 | – |
| F51 | – |
| F52 | – |
| F53 | VENT SEAT |
| F54 | – |
| F55 | – |
| F56 | ISRVM/RLAD – Inside Rear View Mirror/ Reflective LED Alert Display |
| F57 | – |
| F58 | REAR WIPER |
| F59 | – |
| F62 | LUMBAR |
| M-case Fuses | |
| F03 | STARTER SOL |
| F04 | – |
| F05 | RR DEFOG |
| F07 | COOLING FAN MID |
| F09 | – |
| F22 | FRONT WIPER |
| F23 | – |
| F26 | COOLING FAN LOW |
| F27 | – |
| F30 | – |
| F33 | – |
| F38 | EBCM 2 – Electronic Brake Control Module 2 |
| F39 | COOLING FAN HIGH |
| F43 | – |
| F60 | POWER WINDOW LT |
| F61 | POWER WINDOW RT |
| Relays | |
| K01 | STARTER SOL RELAY |
| K02 | – |
| K03 | POWERTRAIN RELAY |
| K04 | COOLING FAN HIGH RELAY |

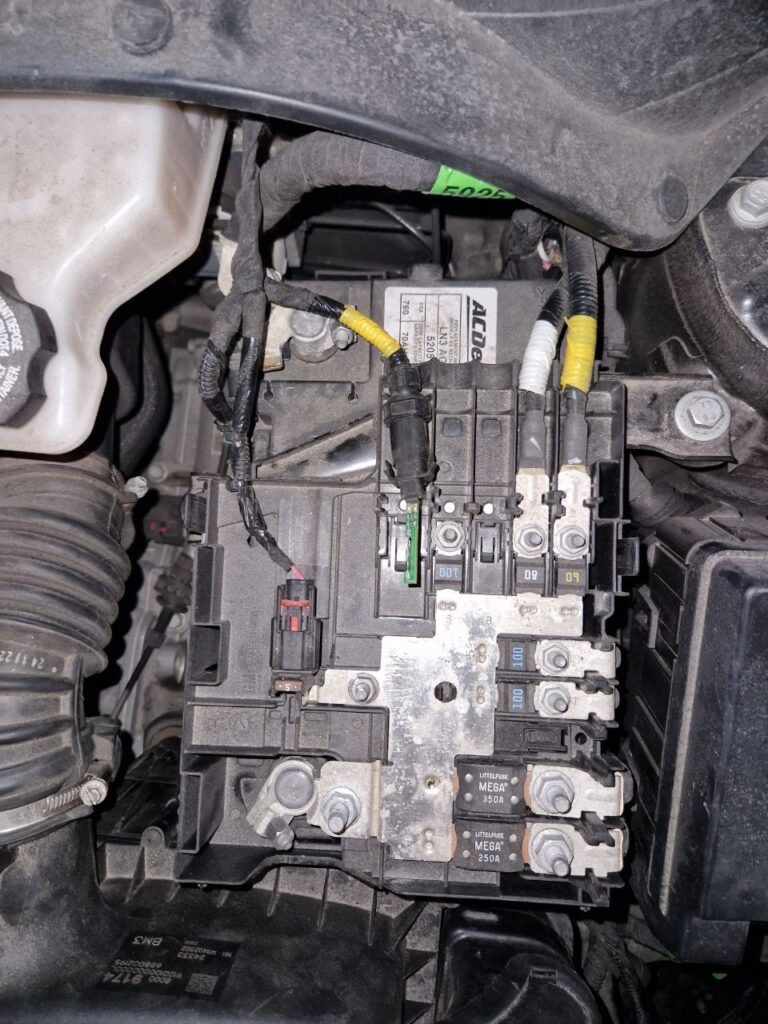

A high-power fuse block in the form of fusible links is installed on the positive terminal of the battery.
Passenger compartment

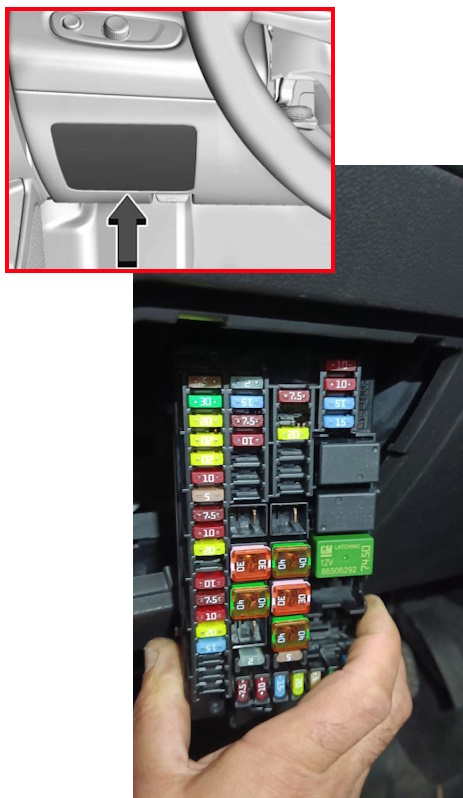

In the car, the fuse and relay box is located in the lower part of the dashboard, on the driver’s side, behind the glove box.

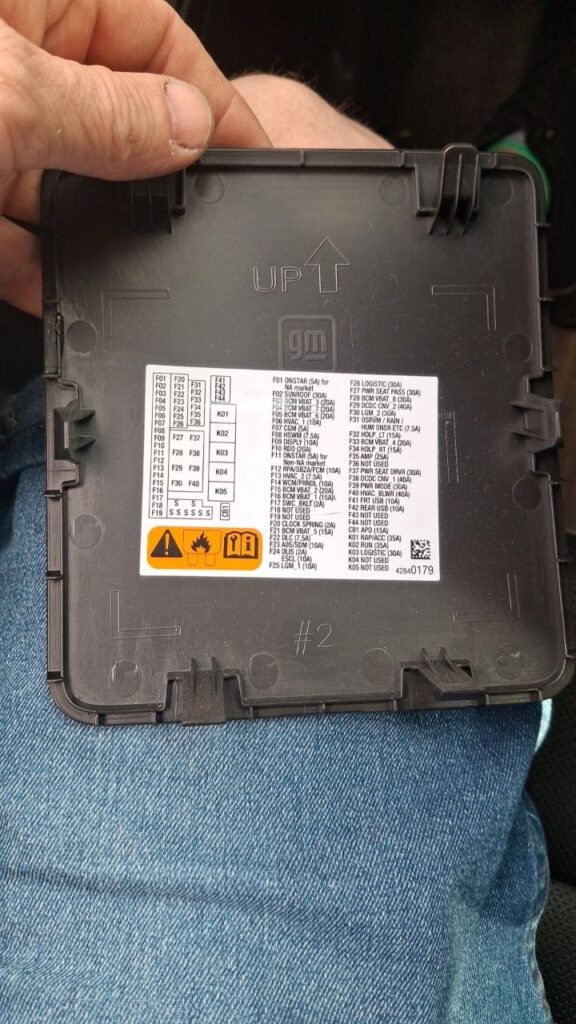

The current assignment of the fuses will be on the cover of your block.

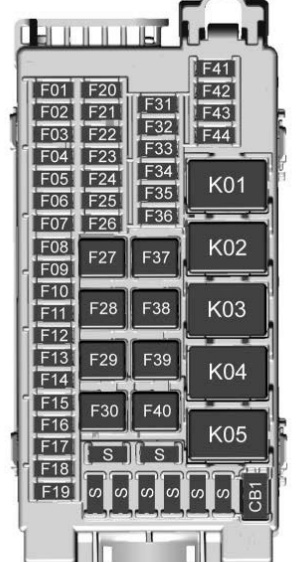

Diagram
Description
| F01 | ONSTAR for NA market |
| F02 | Sunshade Motor |
| F03 | Body Control Module 3 |
| F04 | Body Control Module 7 |
| F05 | Body Control Module 6 |
| F06 | HVAC Module 1 |
| F07 | CGM – Central Gateway Module |
| F08 | HSWM – Heated Steering Wheel Module |
| F09 | Virtual Cockpit Display/ Instrument Panel Display/ HVAC Display |
| F10 | Radio/Virtual Cockpit Unit Module |
| F11 | ONSTAR for Non-NA market |
| F12 | Side Blind Zone Alert Module/ Camera Module/ Ultrasonic Park Assist Module |
| F13 | HVAC Module IGN |
| F14 | Wireless Charger Module/ Remote Electronic PRNDL Display |
| FI 5 | BCM2 – Body Control Module 2 |
| F16 | BCM1 – Body Control Module 1 |
| F17 | Steering Wheel Controls Backlighting |
| F18 | – |
| F19 | – |
| F20 | Steering Wheel Controls Switch |
| F21 | BCM5 – Body Control Module 5 |
| F22 | DLC – Data Link Connector |
| F23 | SDM – Sensing Diagnostic Module |
| F24 | – |
| F24 | Discrete Logic Ignition Switch |
| F25 | PTM1 – Power Tailgate Modulel |
| F26 | Logistic |
| F27 | – |
| F28 | BCM8 – Body Control Module 8 |
| F29 | DC to DC Converter 2 |
| F30 | PTM 2 – Power Tailgate Module 2 (Motor) |
| F31 | OSRVM/ETC/Rain Light Humidity Sensor/ Humidity Sensor |
| F32 | Headlight Low Beam Light LEFT |
| F33 | BCM4 – Body Control Module 4 |
| F34 | Headlight Low Beam Light RIGHT |
| F35 | – |
| F36 | – |
| F37 | Seat Position Switch DRIVER |
| F38 | DC to DC Converter 1 |
| F39 | ACC/RAP Relay/RUN Relay |
| F40 | Blower Motor Control Module |
| F41 | Auxiliary Audio/Video Jack/FRT USB |
| F42 | Auxiliary RR USB Power Outlet |
| F43 | – |
| F44 | – |
| S | SPARE |
| CB1 | Auxiliary DC Power Outlet |
| Circuit Breaker | |
| K01 | ACC/RAP Relay |
| K02 | RUN Relay |
| K03 | Logistics Relay |
| K04 | – |
| K05 | – |
The fuse labeled CB1 controls the cigarette lighter.
If you have something to add, please let me know in the comments.
