Nissan Sentra B16 represents the sixth generation of the Sentra model range, which was produced in 2007, 2008, 2009, 2010, 2011, 2012. In our post, we’ll show a description of the fuses and relays of the Nissan Sentra B16 with fuse box diagrams, their locations and photo examples of execution. Also highlight the cigarette lighter fuse.
The purpose of fuses and relays may differ from that described here and depends on the year of manufacture and the level of electrical equipment in your vehicle.
Contents
Passenger compartment
In the passenger compartment, the fuse box with fuses and relays is located at the bottom of the dashboard behind the glove compartment.
Photo for example
Check the actual description with yours on the back side of the protective cover.

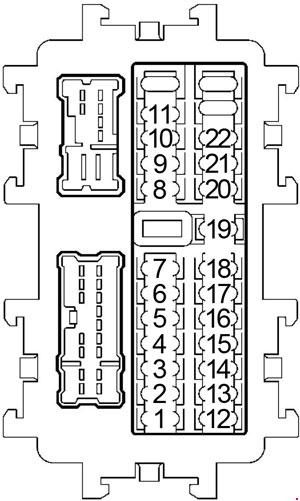

Diagram
Assignment
| 1 | – |
| 2 | – |
| 3 | – |
| 4 | – |
| 5 | 10A Door Mirror, Warning Lamps, Warning Chime, CVT Indicator Lamp |
| 6 | 10A Combination Meter, Remote Keyless Entry System, Headlamp, Turn Signal and Hazard Warning Lamps, Front Fog Lamp, Parking Lamp, License Lamp, Tail Lamp, Combination Switch, Illumination, Audio, Daytime Light System, Hands Free Telephone, Vehicle Security (Theft Warning) System, Power Window, Audio Visual Communication System, Vehicle Information and Integrated Switch System, Intelligent Key System, Room/Map Lamps, Vanity Lamp, Luggage Lamp |
| 7 | 15A Power Socket |
| 8 | 10A Rear Window Defogger |
| 9 | 10A Warning Chime, Room/Map Lamps, Vanity Lamp, Luggage Lamp, Power Door Lock, Intelligent Key System, Trunk Lid Opener |
| 10 | 15A Heater System, Manual Air Conditioner |
| 11 | 15A Heater System, Manual Air Conditioner |
| 12 | 10A Illumination, Malfunction Indicator Lamp, CVT Shift Lock System, Electronic Controlled Power Steering, Intelligent Key System, Headlamp, Turn Signal and Hazard Warning Lamps, Low Tire Pressure Warning System, Warning Chime, Daytime Light System, Hands Free Telephone, Vehicle Security (Theft Warning) System, Remote Keyless Entry System, Nissan Anti-Theft System, Front Wiper and Washer, Front Fog Lamp, Sunroof, Combination Switch, Heater System, Manual Air Conditioner, Parking Lamp, License Lamp, Tail Lamp, Room/Map Lamps, Vanity Lamp, Luggage Lamp, Vehicle Information and Integrated Switch System, Power Window, Rear Window Defogger, Audio Visual Communication System, ASCD Brake Switch, Park/Neutral Position Switch, CVT Indicator Lamp, Starting System, Heated Seat |
| 13 | 10A Supplemental Restraint System |
| 14 | 10A Back-up Lamp, Combination Meter, Intelligent Key System, Headlamp, Turn Signal and Hazard Warning Lamps, Illumination, Warning Chime, Daytime Light System, Low Tire Pressure Warning System, Electronic Controlled Power Steering, Charging System, Warning Lamps, Park/Neutral Position Switch, ASCD Indicator, CVT Indicator Lamp, Malfunction Indicator Lamp, Anti-lock Brake System, Overdrive Control Switch, Supplemental Restraint System, Audio Visual Communication System |
| 15 | 10A Front Wiper and Washer |
| 16 | 15A QR: Air Fuel Ratio Sensor, Fuel Ignition System Function, Heated Oxygen Sensor |
| 17 | 20A Audio |
| 18 | 15A Power Socket |
| 19 | 10A Stop Lamp, Combination Meter, Illumination, Power Door Lock, Brake Switch, Daytime Light System, Intelligent Key System, Headlamp, Nissan Anti-Theft System, Turn Signal and Hazard Warning Lamps, Vehicle Security (Theft Warning) System, Electronic Controlled Power Steering, Warning Chime, Low Tire Pressure Warning System, CVT Indicator Lamp, Heater, Manual Air Conditioner, Warning Lamps, Anti-lock Brake System, ASCD Indicator, Room/Map Lamps, Vanity Lamp, Luggage Lamp, Audio Visual Communication System, Malfunction Indicator Lamp, Rear Window Defogger, ASCD Brake Switch |
| 20 | 10A Intelligent Key System, Audio Visual Communication System, Vehicle Information and Integrated Switch System, Power Door Lock, Remote Keyless Entry System, Nissan Anti-Theft System, Trunk Lid Opener, Vehicle Security (Theft Warning) System, Warning Chime, Combination Switch, Daytime Light System, Front Fog Lamp, Headlamp, Room/Map Lamps, Vanity Lamp, Luggage Lamp, Illumination, Turn Signal and Hazard Warning Lamps, Parking Lamp, License Lamp, Tail Lamp, ASCD Brake Switch |
| 21 | 10A Power Door Lock, Warning Chime, Intelligent Key System, Remote Keyless Entry System, Room/Map Lamps, Vanity Lamp, Luggage Lamp |
| 22 | 10A Hands Free Telephone |
Fuse number 7 and 18 are responsible for the cigarette lighter.
The blower and accessory relays are mounted on the back side of the unit.

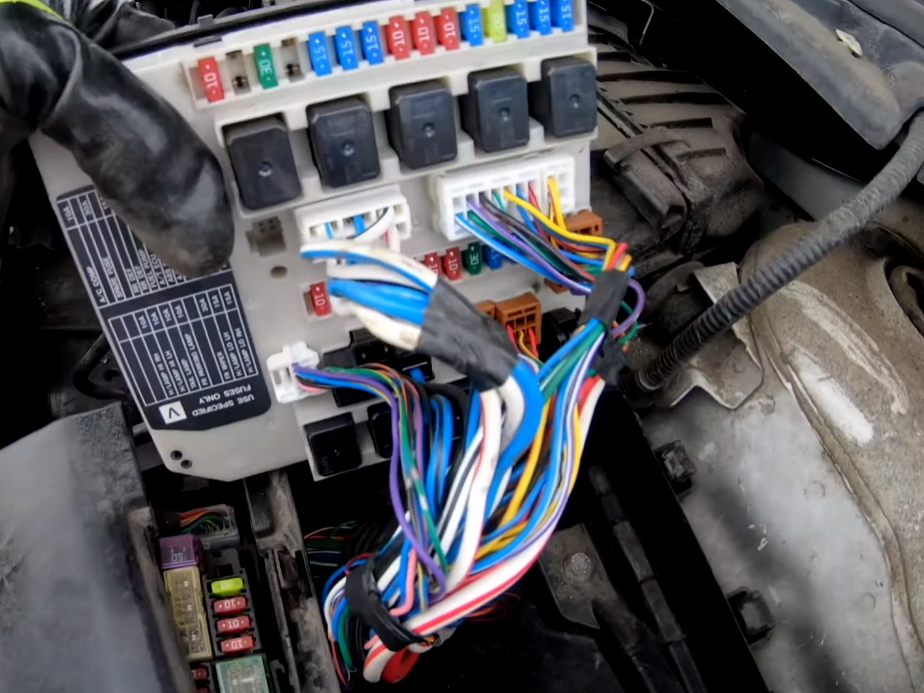

Engine compartment
Location
Layout
Designation
- Fuse Box 1
- Fuse Box 2
- Transmission Control Module (TCM)
- Engine Control Module (ECM)
- ABS Actuator and Control Unit
- Front Wiper Motor

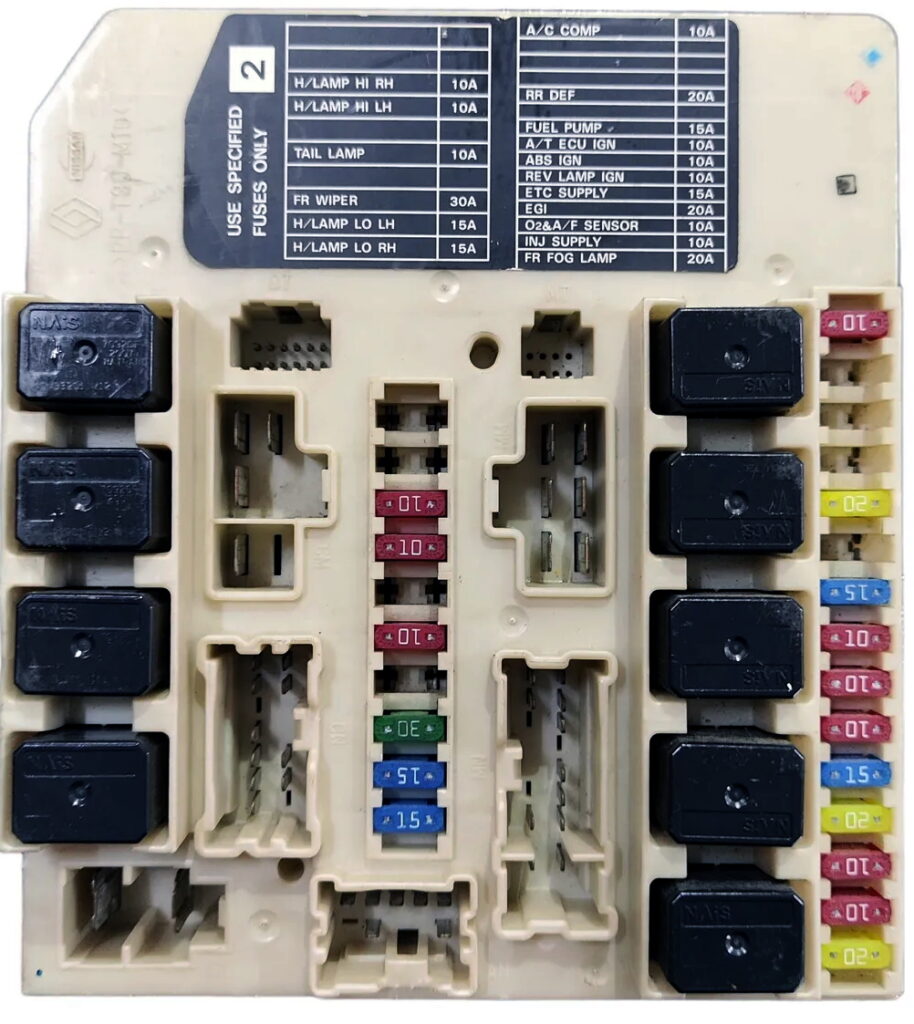

Fuse box 1
Diagram
Allocation
| 32 | – |
| 33 | – |
| 34 | 10A Headlamp High RH, Daytime Light System |
| 35 | 10A Headlamp High LH, Daytime Light System |
| 36 | 10A Parking Lamp, License Lamp, Tail Lamp, Illumination |
| 37 | 10A Parking Lamp, License Lamp, Tail Lamp |
| 38 | – |
| 39 | 30A Front Wiper Relay, Front Wiper High Relay |
| 40 | 15A Headlamp Low, Daytime Light System |
| 41 | 15A Headlamp Low, Daytime Light System |
| 42 | 10A A/C Relay |
| 43 | – |
| 44 | – |
| 45 | – |
| 46 | 15A Rear Window Defogger Relay |
| 47 | 15A Rear Window Defogger Relay |
| 48 | 15A Fuel Pump Relay |
| 49 | 10A Transmission Control Module (Power Supply), Secondary Pressure Sensor Solenoid Valve, CVT Indicator Lamp, Primary Speed Sensor CVT (Revolution Sensor) |
| 50 | 10A Anti-lock Brake System |
| 51 | 10A Heated Oxygen Sensor |
| 52 | 15A Throttle Control Motor Relay |
| 53 | 20A Engine Control Module (ECM) Relay, Nissan Anti-Theft System, Transmission Control Module (Power Supply), CVT Indicator Lamp, ECM Power Supply For Back-up |
| 54 | 10A Fuel Ignition System Function, Air Fuel Ratio Sensor |
| 55 | 10A Injector, Fuel Ignition System Function |
| 56 | 15A Front Fog Lamp |
| Relay | |
| R1 | Rear Window Defogger |
| R2 | Engine Control Module (ECM) |
| R3 | Headlamp Low |
| R4 | Front Fog Lamp |
| R5 | Starter |
| R6 | Cooling Fan 2 |
| R7 | Cooling Fan 3 |
| R8 | Cooling Fan 1 |
| R9 | Ignition |

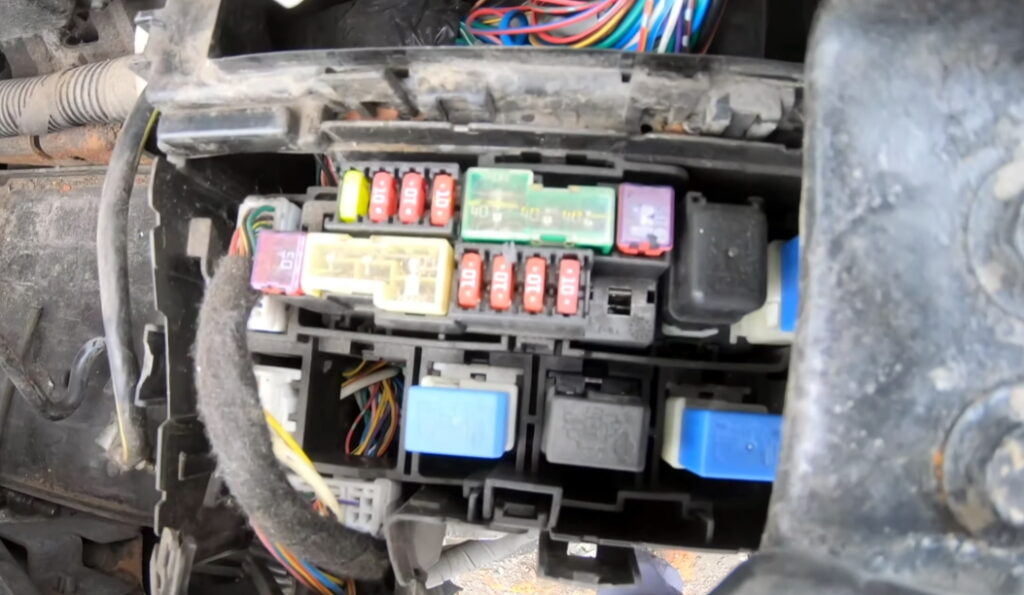

Fuse box 2

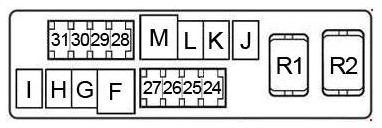

Diagram
Appointment
| 24 | – |
| 25 | 10A Horn, Remote Keyless Entry System, Intelligent Key System, Vehicle Security (Theft Warning) System |
| 26 | 10A Charging System |
| 27 | 10A Daytime Light System |
| 28 | 10A Rear Window Defogger |
| 29 | – |
| 30 | 20A Heated Seat |
| 31 | 20A Audio, Vehicle Information and Integrated Switch System, Audio Visual Communication System |
| F | 60A Electronic Controlled Power Steering |
| G | 30A Anti-lock Brake System |
| H | 30A Anti-lock Brake System |
| I | – |
| J | 50A Low Tire Pressure Warning System, Sunroof, Power Door Lock, Daytime Light System, Front Fog Lamp, Turn Signal and Hazard Warning Lamps, Combination Switch, Parking Lamp, License Lamp, Tail Lamp, Warning Chime, Illumination, Remote Keyless Entry System, Intelligent Key System, Trunk Lid Opener, Hands Free Telephone, Vehicle Security (Theft Warning) System, Nissan Anti-Theft System, Power Window, Rear Window Defogger, Room/Map Lamps, Vanity Lamp, Luggage Lamp, Front Wiper and Washer, Vehicle Information and Integrated Switch System, Audio Visual Communication System Fuse: “9” |
| K | 40A Cooling Fan |
| L | 40A Cooling Fan |
| M | 40A Starting System, Ignition Switch |
| Relay | |
| R1 | Horn |
| R2 | Daytime Light System 2 |
Additonal elements
Decoding
- R1 – Horn
- R2 – Daytime Light System 2
- R3 – Cooling Fan 5
- R4 – Daytime Light System
- R5 – Cooling Fan 4

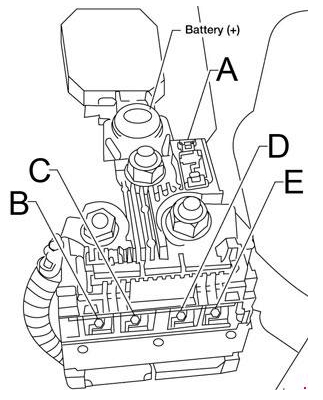

Fuse box 3
This block is attached to the positive terminal of the battery.
Diagram
Description
| A | 225A Starting System, Charging System, Fuse: “E”, “D” |
| B | 80A Ignition Relay (Fuse: “48”, “49”, “50”, “51”, “54”, “55”) |
| C | 100A Front Blower Motor Relay (Fuse: “10”, “11”), Accessory Relay (Fuse: “5”, “6”, “7”), Fuse: “17”, “18”, “19”, “20”, “21”, “22” |
| D | 60A Front Fog Lamp Relay (Fuse: “56”), Headlamp Low Relay (Fuse: “40”, “41”) Headlamp High Relay RH, Headlamp High Relay LH, Tail Lamp Relay, Fuse: “39”, “42” |
| E | 100A Fuse: “25”, “26”, “27”, “28”, “30”, “31”, “F”, “G”, “H”, “J”, “K”, “L”, “M” |
