The Nissan Ariya electric car went on sale in 2022 and is still in production today. In our article, you will find a description of the Nissan Ariya fuses and relays with fuse box diagrams, photos, and locations. Note the fuse responsible for the cigarette lighter.
The design of the units may differ from that shown and depends on the year of manufacture and the level of electrical equipment in your vehicle.
Passenger compartment
In the car interior, the fuse and relay box is located behind the glove compartment on the passenger side. To access it, open the glove compartment and remove the protective cover on the right side.

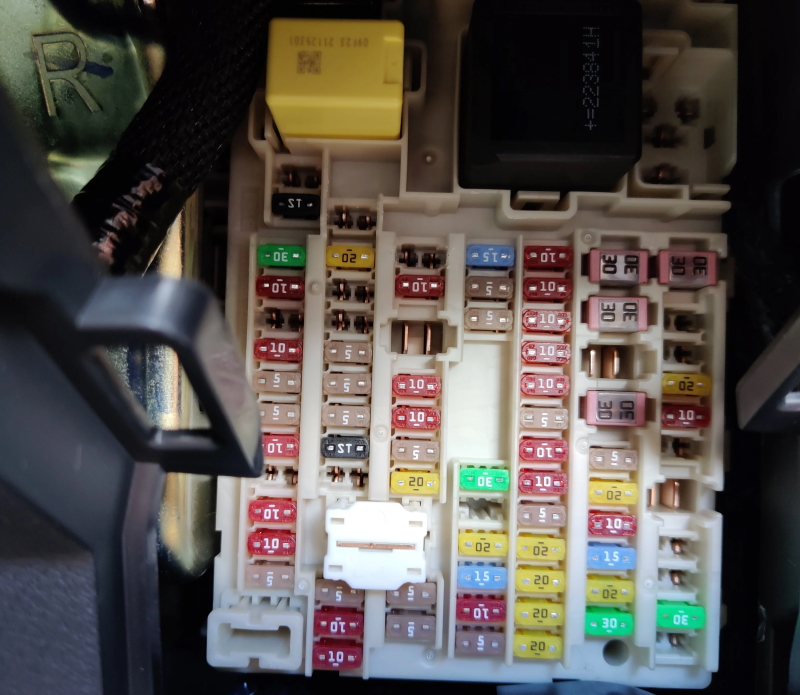

Photo example of the fuse box
Check the assignment of the elements against your diagram on the back of the block cover.
Diagram
Assignment
| 1 | Rear window defroster relay |
| 2 | Outside rearview mirror (left, right) |
| 3 | – |
| 4 | Wireless charger |
| 5 | Steering wheel angle sensor |
| 6 | Instrument cluster |
| 7 | Airbag diagnostic unit and passenger detection system control unit |
| 8 | – |
| 9 | 8-channel CAN gateway, auto-dimming mirror, AVAS control unit, drive mode selector, distance sensor, front camera unit, and side radar (left, right) |
| 10 | Data transfer connector |
| 11 | Chassis control module |
| 12 | Front door lock |
| 13 | – |
| 14 | Rear door lock |
| 15 | Charging equipment communication module and TCU |
| 16 | 8-channel CAN gateway |
| 17 | BCM |
| 18 | Starting system and starter |
| 19 | – |
| 20 | Parking brake switch |
| 21 | BCM and brake light switch |
| 22 | Intelligent driver assistance systems and their components |
| 23 | – |
| 24 | Luggage compartment light, map light, decorative lighting (left, right), additional connector (MDL, MDR, MFL, MFR), personal lighting, rear interior light, interior light (without sunroof) and sun visor (left, right) |
| 25 | AV control unit |
| 26 | Hands-free system Sensor control unit, without connection and seat position memory switch (driver, passenger) |
| 27 | Central display |
| 28 | BOSE AMP audio system |
| 29 | Instrument cluster |
| 30 | BCM |
| 31 | Light and rain sensor, sunroof motor and sunshade motor |
| 32 | ABS motor/electrical unit and brake light switch |
| 33 | Power steering control unit and EPS system |
| 34 | Spare |
| 35 | Spare |
| 36 | Spare |
| 37 | Spare |
| 38 | Spare |
| 39 | Spare |
| 40 | 8-channel CAN gateway, ADAS 2 control unit, surround view system control unit, chassis control module, sonar control unit, and spiral cable |
| 41 | Headlight (left, right) |
| 42 | Intelligent brake with electric drive |
| 43 | Adaptive Driving Beam left |
| 44 | Selector lever |
| 45 | Mirror control module on the passenger door and main window switch |
| 46 | USB charger |
| 47 | Adaptive Driving Beam right |
| 48 | Projection display unit |
| 49 | Right rear window electric drive |
| 50 | Left rear window electric drive |
| 51 | Window electric drive (passenger side) |
| 52 | Window electric drive (driver side) |
| 53 | Keyless entry key unit |
| 54 | Left front seat |
| 55 | Emergency alarm, turn signals |
| 56 | Rear wiper |
| 57 | Right front seat |
| 58 | Electric energy storage system |
| 59 | – |
| 60 | – |
| 61 | Power connector on the console (cigarette lighter) |
| 62 | Steering wheel heating relay |
| 63 | – |
| 64 | – |
| 65 | – |
| 66 | Second row seat heating (left, right) |
| 67 | First row seat heating (left, right) |
| 68 | – |
| 69 | Starting system and starter |
| 70 | – |
| FF | – |
| GG | Steering column adjustment |
| HH | Brake capacitor (recuperation) |
| II | – |
| J1 | Ignition relay 2 |
| J2 | Interior lighting relay |
| J3 | Ignition relay |
| J4 | Rear window heating relay |
| J5 | Additional equipment relay |
| J6 | Electric window relay |
| JJ | Electric rear door (trunk) drive |
| KK | Noise reduction |
| LL | Fan motor |
The front cigarette lighter is protected by fuse number 61 rated at 20A.
Engine compartment
Another fuse box is located under the hood on the right side.
Photo – diagram
Designation
- F01 –
- F02 BAT ABS VALVES – ABS valves
- F03 FUEL PUMP – Fuel pump
- F04 ACTUATOR1 – Actuator 1 (throttle valve, turbine control valve, etc., depending on configuration)
- F05 ACTUATOR3 – Actuator 3
- F06 ACTUATOR2 – Actuator 2
- F07 ACTUATOR4 – Actuator 4
- F08 ACTUATOR5 – Actuator 5
- F09 WIPER – Windshield wiper
- F10 WASHER MTR – Washer pump
- F11 AT/PG – Automatic transmission control unit
- F12 AIRBAG – Airbags
- F13 REV. LAMP / AC VALVE – Reverse lamps / air conditioning valve
- F14 –
- F15 ECM – Engine control unit
There may also be high-power fuses on the positive terminal of the battery.
If you have anything to add, write in the comments.
