Nissan Serena C26 (2011 – 2018) Fuse and Relay

Nissan Serena C26 represents the fourth generation of the Serena model line, produced in 2011, 2012, 2013, 2014, 2015, 2016, 2017, and 2018. During this time, the model received a facelift. In this article, we will describe the fuses and relays in the Nissan Serena C26, including fuse box diagrams, their locations, and photo examples. We will highlight the fuse responsible for the cigarette lighter.

The assignment of fuses and relays may differ from those shown and depends on the year of manufacture and the level of electrical equipment in your vehicle.

Passenger compartments

The vehicle’s passenger compartment contains two fuse boxes located on the left side behind the glove compartment.

Check the purpose of the elements against your diagrams on the back of the lid.

Diagram

Assignment

The fuse labeled “POWER SOCKET” controls the cigarette lighter.

There may be some relays located nearby, such as the gray power window relay.

Engine compartments

Under the hood in the engine compartment, next to the battery, under the air intake pipe, there are 2 blocks with fuses and relays.

To access the blocks, you must remove the air intake pipe.

Box A

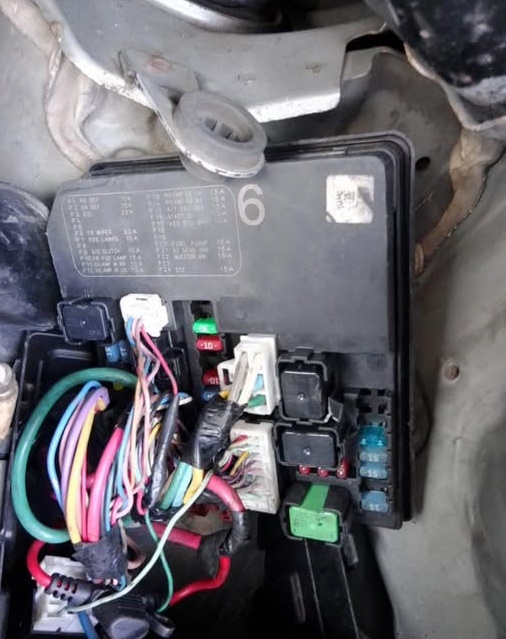

Example of designation on a block

Diagram

Circuits protected

Relay designation

• R8 Rear door heater relay
• R17 Relay for lowering (-) revolutions of the cooling fan
• R18 Relay for increasing (+) revolutions of the cooling fan
• R20 Ignition system relay

Box B

Consists of two sections.

Right section diagram

Allocation

Left section diagram

Appointment

That’s all, and if you have anything to add, please write in the comments.
