The Nissan Quest RE52 represents the fourth generation of the Quest model range, which was produced in 2011, 2012, 2013, 2014, 2015, 2016, 2017. During this time, the model underwent an update. In this post, you will find a description of the fuses and relays of the Nissan Quest 4G with fuse box diagrams, their locations, and photo examples. Let’s highlight the cigarette lighter fuse.
The purpose of fuses and relays may differ from that described and depends on the year of manufacture and the level of electrical equipment in your vehicle.
Passenger compartment

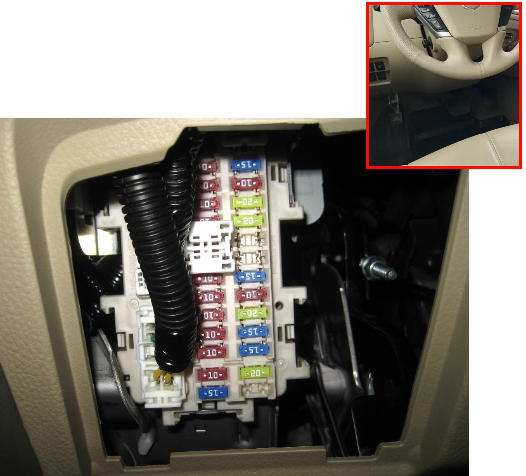

In the passenger compartment, the fuse box with fuses and relays is located at the bottom of the dashboard behind the glove compartment.
Check the assignment of the elements against your diagram on the back of the block cover.
Example diagram from the covery
Diagram
Assignment
| 1 | 15A Heated Seat Switch |
| 2 | 10A Air Bag Diagnosis Sensor Unit, Occupant Classification System Control Unit |
| 3 | 10A Air Conditioner Amplifier, Automatic Back Door Control Module, Sliding Door Control Unit, Power Steering Control Module, ASCD Brake Switch, Stop Lamp Switch, Exhaust Gas / Outside Odor Detecting Sensor, Electronic Controlled Engine Mount Control Solenoid Valve, Data Link Connector, AC 120V Outlet Main Switch, Steering Angle Sensor, Ionizer, Tel Adapter Unit, AV Control Unit, Rear Display Unit, Auto Anti-Dazzling Inside Mirror, Around View Monitor Control Unit, Rear Air Conditioning Control |
| 4 | 10A Combination Meter, Back-Up Relay |
| 5 | Not Used |
| 6 | 15A Intelligent Key Warning Buzzer, Data Link Connector, Air Conditioner Amplifier, Selective Unlock Relay, Auto Anti-Dazzling Inside Mirror, Combination Meter |
| 7 | 10A Stop Lamp Switch, Stop Lamp Relay, BCM (Body Control Module) |
| 8 | 20A Luggage Room Power Socket |
| 9 | 10A Automatic Back Door Control Module, Automatic Back Door Warning Buzzer, Automatic Sliding Door Warning Buzzer, Sliding Door Control Unit, Seatback Power Return Control Unit, Seatback Lock Release Actuator Relay |
| 10 | 10A BCM (Body Control Module), Seat Memory Switch, Remote Keyless Entry Receiver |
| 11 | 10A Transmission Control Module (TCM), Push-Button Ignition Switch |
| 12 | Not Used |
| 13 | 10A Door Mirror, Air Conditioner Amplifier |
| 14 | Not Used |
| 15 | 20A Rear Window Defogger |
| 16 | Not Used |
| 17 | Not Used |
| 18 | Not Used |
| 19 | 10A Air Conditioner Amplifier, Audio, Tel Adapter Unit, Multifunction Switch, Front Display Unit, AV Control Unit, Satellite Radio Tuner,, Rear Displa Unit, Door Mirror Remote Control Switch |
| 20 | 20A Front Power Socket |
| 21 | 15A Front Blower Motor |
| 22 | 15A Front Blower Motor |
| Relay | |
| R1 | Ignition |
| R2 | Rear Window Defogger |
| R3 | Accessory |
| R4 | Front Blower |
The fuse number 20 is responsible for the lighter.
Engine compartment

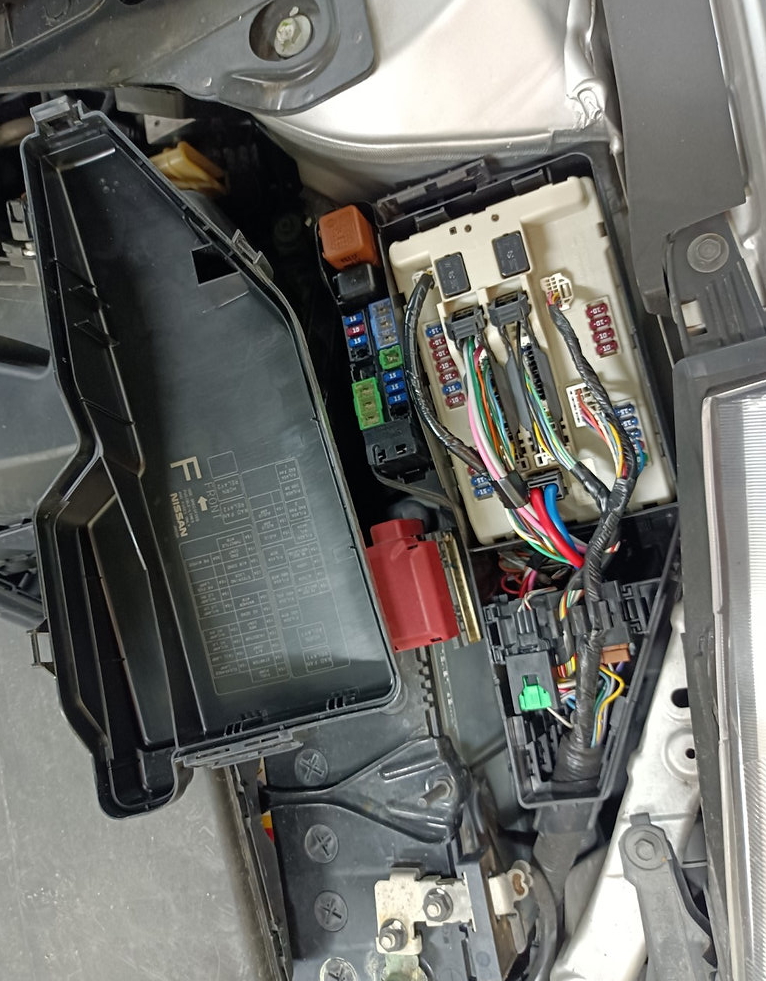

The two boxes with fuses and relays are located on the left side, under a protective cover.
The photo
Diagram from the block cover
Fuse Box 1
Diagram
Designation
| 1 | 15A Fuel pump relay, Fuel pump with fuel level sensor |
| 2 | 10A Cooling fan relay 2,3, Transmission selector |
| 3 | 10A Speed sensor (primary, secondary), Transmission control unit |
| 4 | 10A Engine control unit, Injectors |
| 5 | 10A Yaw rate sensor, ABS |
| 6 | 15A Lambda Sensor, Heated Oxygen Sensor |
| 7 | 10A Washer pump |
| 8 | 10A Steering column |
| 9 | 10A A / C relay, A / C fan |
| 10 | 15A Ignition coils, Solenoid valve 1,2 of VIAS system, Solenoid valve for timing control system, Condenser, Engine control unit, Mass air flow sensor, Canister purge solenoid valve |
| 11 | 15A Engine control unit, Throttle valve |
| 12 | 10A Headlight range control, Front side lights |
| 13 | 10A Tail lights, Interior lighting, License plate light, Glove compartment lamp, Rear curtain switch (front / rear), Rear passenger switch box, Seat ventilation switch, Heated seat switch, Door handle lights, VDC switch, Headlight range control switch, Air conditioning, Trunk release button, Multi function switch, Combination switch, Hazard switch, Audio system, AV module, Backlight control, DVD player, Headlight range control, Navigation unit, Mirror switch |
| 14 | 10A High beam on the left side |
| 15 | 10A High beam on the right side |
| 16 | 15A Low beam on the left side |
| 17 | 15A Dipped beam on the right side |
| 18 | 15A Front fog lights |
| 19 | Not used |
| 20 | 30A Windshield wiper |
- R1 – Cooling fan relay 1
- R2 – Starter relay
Fuse Box 2
Diagram
Allocation
| 31 | Not Used |
| 32 | Trailer |
| 33 | 30A Seatback Power Return Control Unit, Seatback Lock Release Actuator Relay |
| 34 | 30A Inverter Unit |
| 35 | 20A Audio, AV Control Unit, Satellite Radio Tuner, Display Unit (Front, Rear), Around View Monitor Control Unit, Tel Adapter Unit |
| 36 | Not Used |
| 37 | 15A Horn Relay |
| 38 | 10A Generator |
| F | 30A ABS |
| G | 20A ABS |
| H | 40A Ignition Relay (Fuse: “1”, “2”, “3”, “4”), IPDM E/R, Fuse: “6” |
| I | Not Used |
| J | 40A Circuit Breaker (Automatic Back Door Control Module), Circuit Breaker (Sliding Door Control Unit, Back Door Control Unit) |
| K | 40A Cooling Fan Relay 2, Cooling Fan Relay 3 |
| L | 40A BCM (Body Control Module), Circuit Breaker (Automatic Drive Positioner Control Unit, Driver Seat Control, Lumbar Support Switch) |
| M | 40A Cooling Fan Motor 1 |
| 41 | 15A Fuel Pump Relay |
| 42 | 10A Cooling Fan Relay 2, Cooling Fan Relay 3 |
| 43 | 10A Secondary Speed Sensor, Transmission Control Module (TCM) |
| 44 | 10A Injectors, Engine Control Module (ECM) |
| 45 | 10A ABS, BSW Switch, BSW Control Module, Side Radar |
| 46 | 15A Air Fuel Ratio Sensor, Heated Oxygen Sensor |
| 47 | 10A Combination Switch |
| 48 | Not Used |
| 49 | 10A Air Conditioner Relay |
| 50 | 15A Engine Control Module Relay (VIAS Control Solenoid, Intake Valve Timing Control Solenoid Valve, EVAP Canister Vent Control Valve, Condenser, Ignition Coils, Engine Control Module, Mass Air Flow Sensor, EVAP Canister Purge Volume Control Solenoid Valve) |
| 51 | 15A Throttle Control Motor Relay |
| 52 | 10A Front Combination Lamps, Front Side Marker Lamps, Headlamp Aiming |
| 53 | 10A Rear Combination Lamps, License Plate Lamps, VDC Off Switch, Headlamp Aiming Switch, Glove Box Lamp, AC 120V Outlet Main Switch, Automatic Door Main Switch, Combination Switch, Hazard Switch, Air Conditioner Amplifier, Meter Control Switch, Illumination Control Switch, BSW Switch, Automatic Back Door Switch, CVT Shift Selector Illumination, Foot Lamps, Sliding Door Open / Close Switch, Audio, Heated Seat Switch, Rear Air Conditioning Control, Map Lamp, Door Mirror Remote Control Switch, Disc Eject Switch, Multifunction Switch, Rear Display Unit |
| 54 | 10A Headlamp High (Left) |
| 55 | 10A Headlamp High (Right) |
| 56 | 15A Headlamp Low (Left) |
| 57 | 15A Headlamp Low (Right) |
| 58 | 15A Front Fog Light |
| 59 | 10A Daytime Running Light Relay |
| 60 | 30A Front Wiper Relay |
| R1 | Horn Relay |
| R2 | Fan relay |
High power fuses
They are located on the positive terminal of the battery.
Diagram
Functions
- A – 250A Starter, Alternator, Fuse No. B, C
- B – 100A Engine compartment fuse box (no. 2)
- C – 60A Front fog lights, High beam relay, Low beam relay, Side light relay, Fuses: 18 – front fog lights, 20 – wiper (engine compartment fuse box (# 1))
- D – 100A Heater relay, Heated rear window relay, Fuses: 5, 6, 7, 9, 10, 11 (passenger compartment fuse box)
- E – 80A Ignition relay, Fuses: 8, 9, 10, 11 (engine compartment fuse box (# 1))
There is also a video on this topic on our YouTube channel. If you have anything to add, please write in the comments.
