Chery Arrizo 7 / A4 (M16) was produced in 2013, 2014, 2015, 2016, 2017 and 2018. In this post you will find a description of the Chery Arrizo 7 fuses and relays, along with fuse box diagrams, their locations, and photo examples. We will highlight the cigarette lighter.
The purpose of fuses and relays, as well as their number, may differ from those shown and depend on the year of manufacture and the level of electrical equipment in your vehicle.
Engine compartment

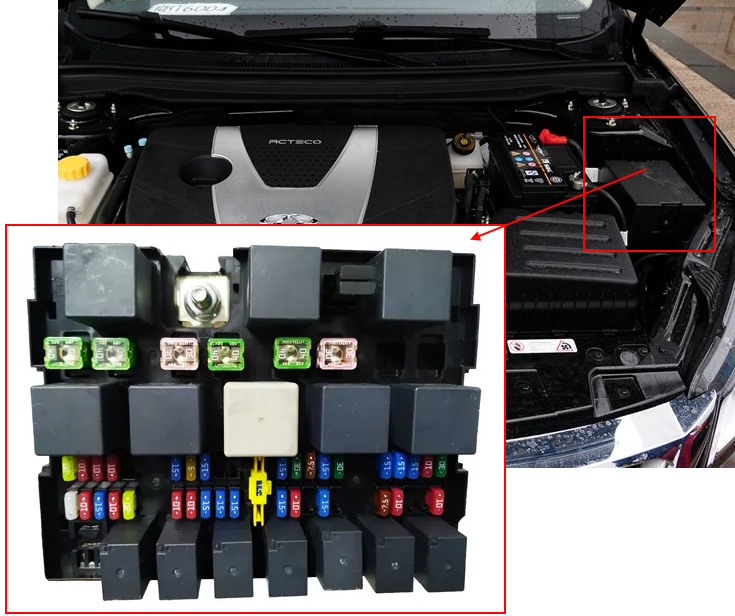

The main fuse and relay box is located under the hood of the car, in the engine compartment on the left side. To access it, lift the protective cover.

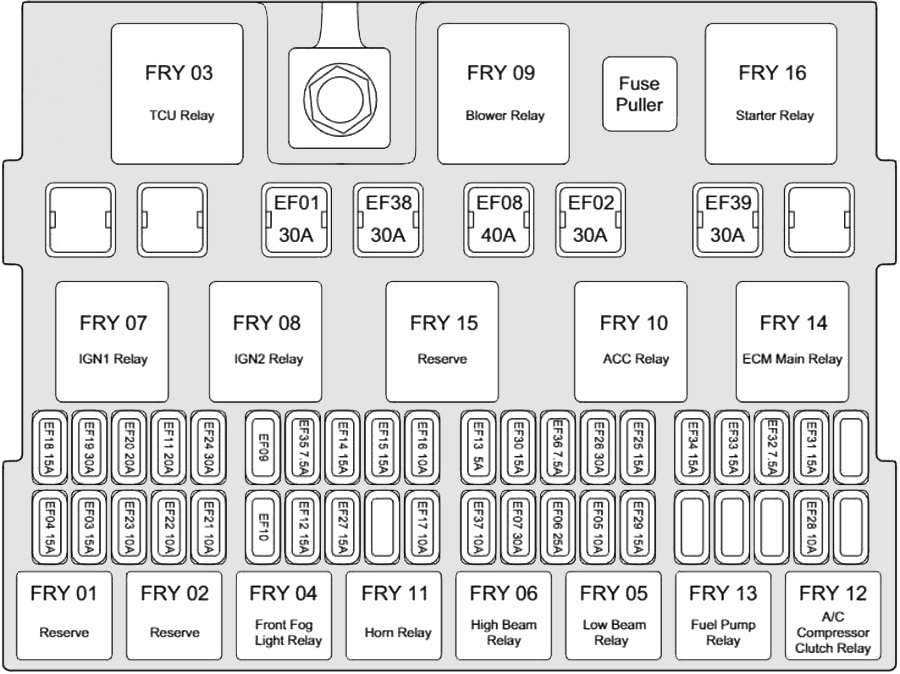

Diagram
Assignment
Fuses
| EF01 | Ignition Switch (w/o PEPS) |
| EF02 | Driver Seat Power Adjustment |
| EF03 | Immobilizer Control Module (w/o PEPS) / Brake Switch |
| EF04 | Ignition Switch (w/o PEPS) |
| EF05 | PEPS (w/ PEPS) / TCU / TCU Relay Coil (CVT) |
| EF06 | ESP (ABS) |
| EF07 | IP Fuse Box (B+) |
| EF08 | ESP (ABS) |
| EF09 | Reserve |
| EF10 | Reserve |
| EF11 | TCU / Gearbox / Gear Shift Mechanism (CVT) |
| EF12 | Front Fog Light |
| EF13 | Headlight Leveling Switch |
| EF14 | Right Headlight Low Beam / Right Headlight Adjustment Motor |
| EF15 | Left Headlight Low Beam / Left Headlight Adjustment Motor |
| EF16 | Right Headlight High Beam |
| EF17 | Left Headlight High Beam |
| EF18 | PEPS (w/ PEPS) |
| EF19 | IP Fuse Box (ON) |
| EF20 | Sliding Roof Motor |
| EF21 | Brake Switch / Sliding Roof Motor |
| EF22 | Back-up Light |
| EF23 | Reversing Radar Control Module |
| EF24 | Blower |
| EF25 | Backup Power Supply |
| EF26 | IP Fuse Box (ACC) |
| EF27 | Horn |
| EF28 | A/C Compressor Clutch Switch |
| EF29 | Fuel Pump Motor |
| EF30 | ECM |
| EF31 | Ignition Coil |
| EF32 | Upstream Oxygen Sensor |
| EF33 | Injector |
| EF34 | Variable Intake Valve / Canister Solenoid Valve / Variable Camshaft Timing (Intake/Exhaust) |
| EF35 | Cooling Fan Control Module |
| EF36 | Downstream Oxygen Sensor |
| EF37 | ECM |
| EF38 | Reserve |
| EF39 | Starter Control |
Relays
| FRY01 | Spare |
| FRY02 | Spare |
| FRY03 | TCU Relay (Powertrain Control Module) |
| FRY04 | Front fog lights |
| FRY05 | Headlight relay (low beam) |
| FRY06 | Headlight relay (high beam) |
| FRY07 | Ignition relay (IGN1) |
| FRY08 | Ignition relay (IGN2) |
| FRY09 | Fan |
| FRY10 | ACC relay (auxiliary) |
| FRY11 | Sound signal |
| FRY12 | A/C Compressor Magnetic Clutch Relay |
| FRY13 | Fuel pump relay Chery Arrizo 7 |
| FRY14 | ECU Relay (Engine Control Module) |
| FRY15 | Spare |
| FRY16 | Starter |
Power fuses
The power fuses are located at side of engine compartment fuse and relay box.

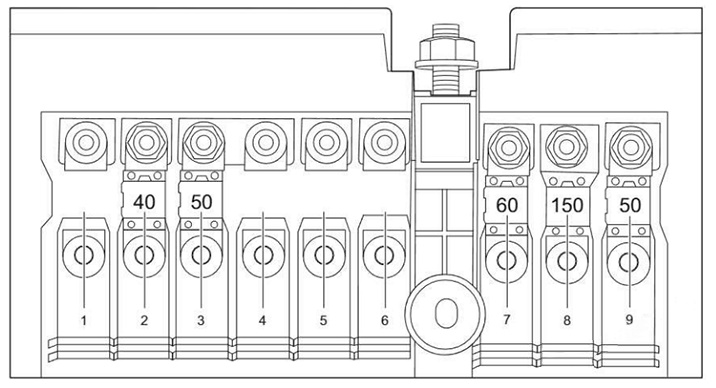

Diagram
Designation
- Trunk Fuse and Relay Box
- BCM
- EPS
- Alternator
- Cooling Fan
Passenger compartment

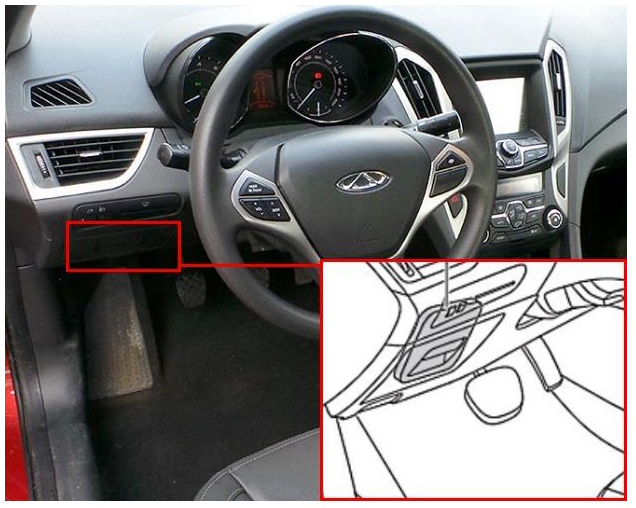

Inside the vehicle, the fuse box is located at the bottom of the dashboard on the driver’s side.

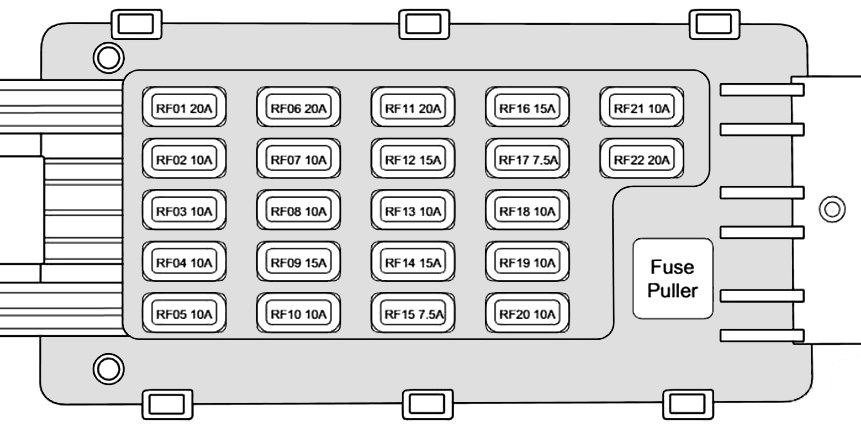

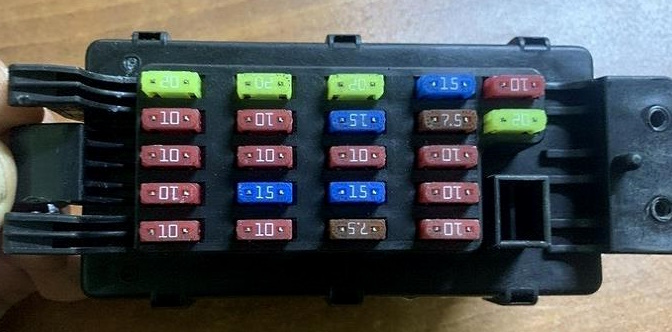

Diagram
Description
| RF01 | Reserve |
| RF02 | A/C System / Audio System / Shift Mechanism (CVT) / IGN2 Relay Coil (w/o PEPS) |
| RF03 | SRS Control Module |
| RF04 | ESP (ABS) / Steering Angle Sensor |
| RF05 | Instrument Cluster |
| RF06 | Reserve |
| RF07 | PEPS (w/ PEPS) / ECM/TCU (CVT) |
| RF08 | A/C Integrated Switch / BCM / EPS |
| RF09 | Cigarette Lighter |
| RF10 | A/C Integrated Switch / Audio System / BCM |
| RF11 | Reserve |
| RF12 | Reserve |
| RF13 | Power Outside Rear View Mirror Switch / Blower and ACC Relay Coil (w/o PEPS) |
| RF14 | Reserve |
| RF15 | Sliding Roof Switch / Diagnostic Interface |
| RF16 | Reserve |
| RF17 | Reserve |
| RF18 | A/C Control Panel and A/C High/Low Pressure Switch |
| RF19 | Audio System |
| RF20 | Instrument Cluster |
| RF21 | Spare |
| RF22 | Spare |
Fuse number 9 is responsible for the operation of the cigarette lighter.
Luggage compartment

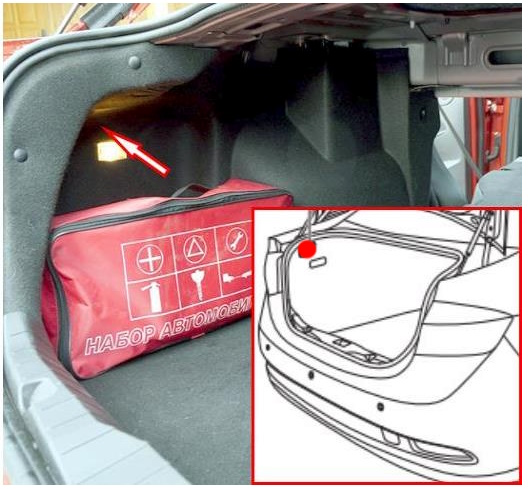

Location of fuse box

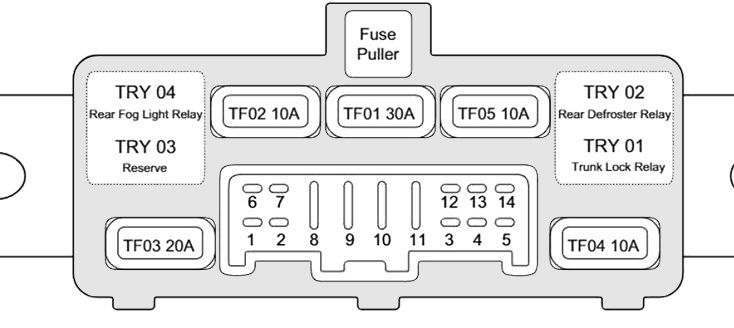

Diagram
Allocation
- TF01 – Rear Defroster
- TF02 – Rear Fog Light
- TF03 – Reserve
- TF04 – Trunk Lock
- TF05 – Antenna Amplifier
