The Omoda S5 was produced in 2021, 2022, 2023, 2024, 2025, 2026 and currently. The Omoda S5 GT represents the “high-performance” version of the model. It is also known as the Chery Arrizo 5 Plus and Chery Arrizo 6. In this article, you will find a description of the Omoda S5 fuses and relays, along with fuse box diagrams, their locations, and photo examples. We will highlight the cigarette lighter and USB charging fuses.
The purpose of fuses and relays, as well as their number, may differ from those shown and depend on the year of manufacture and the level of electrical equipment in your vehicle.
Engine compartment

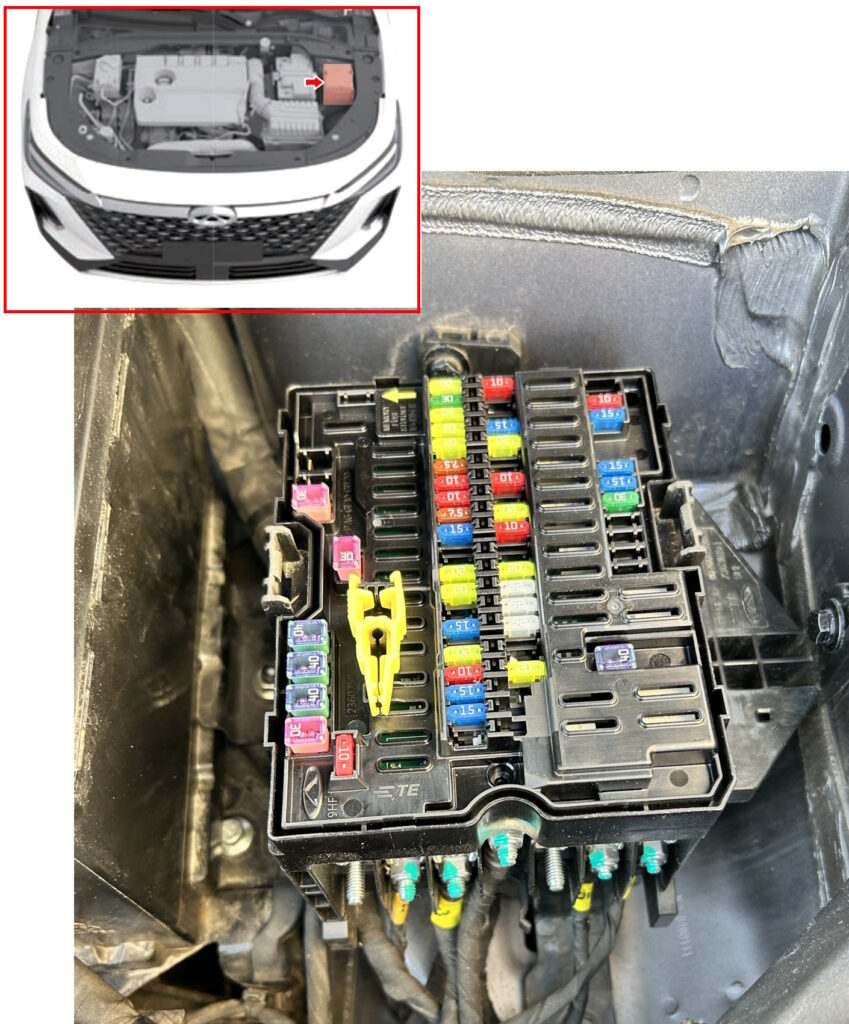

The main fuse and relay box is located under the hood of the car, in the engine compartment on the left side. To access it, lift the protective cover.

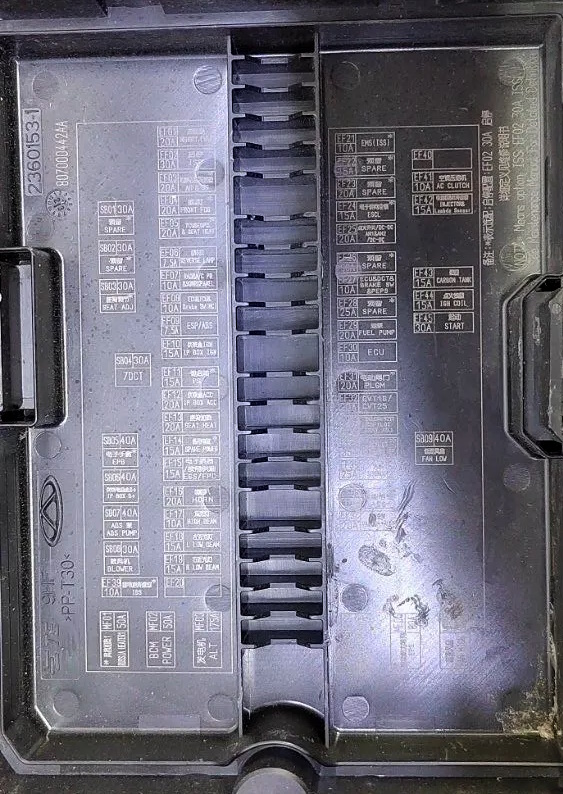

Check the description of the elements with your diagrams on the back of the protective cover.

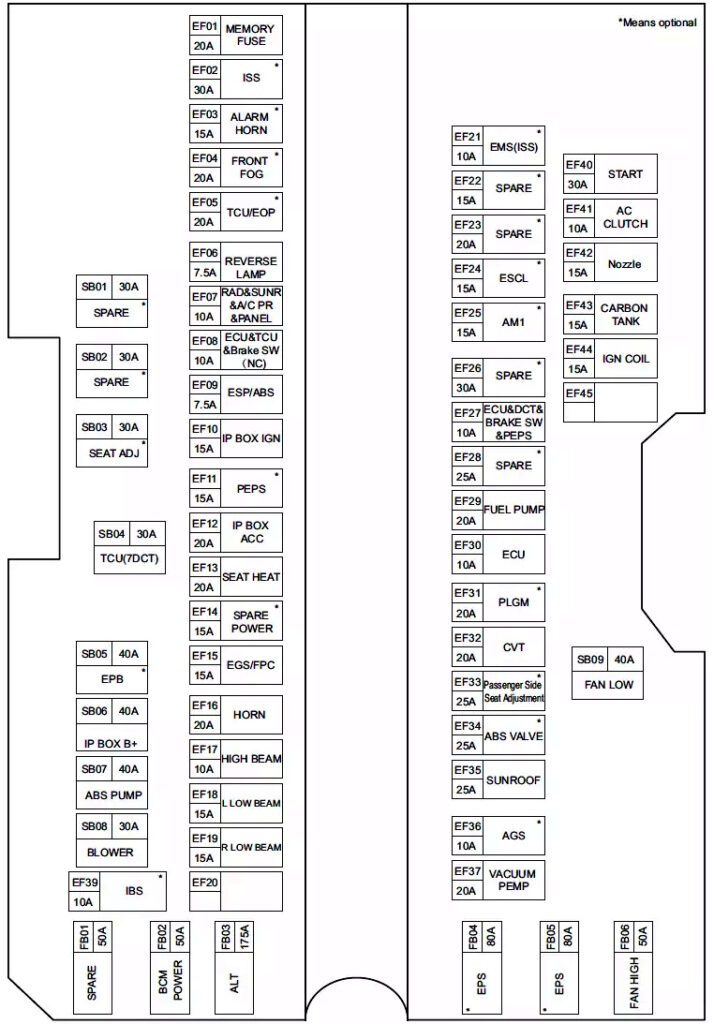

Diagram
Assignment
| FB01 | Reserve |
| FB02 | 50A Body Control Module (BCM) |
| FB03 | 150A Alternator |
| FB04 | 60A Variable Speed Cooling Fan |
| FB05 | 60A Electric Power Steering (EPS) |
| FB06 | Reserve |
| FB07 | 50A Cooling Fan No. 3 |
| SB01 | Reserve |
| SB02 | Reserve |
| SB03 | 30A Power Seat Adjustment |
| SB04 | Reserve |
| SB05 | 40A Electronic Parking Brake (EPB) Module / ABS Module |
| SB06 | 40A Instrument Panel Fuse and Relay Box Power Supply |
| SB07 | 40A Electronic Parking Brake (EPB) Module / ABS Module |
| SB08 | Reserve |
| SB09 | 40A Cooling Fan Low-Speed Relay (FRY15) |
| SB10 | 20A Tailgate Actuator |
| SB11 | 30A Power Seats |
| EF01 | 20A Instrument Panel Fuse and Relay Box (30IP) |
| EF02 | 15A Security Alarm Horn |
| EF03 | Reserve |
| EF04 | Reserve |
| EF05 | Reserve |
| EF06 | 7.5A Left / Right Cornering Lights |
| EF07 | 10A High/Low Pressure Switch 1#, 2# / Rear Radar Module 3# / Gear Indicator Panel 2# / Electronic Gear Selector Module 7# / Front Microwave Radar 6# / Multifunction Camera 6# / Gear Shift Mechanism 11# |
| EF08 | 10A Brake Switch 4# / Transmission Control Module (TCM) 28# / Engine Control Module (ECM) 35# |
| EF09 | 7.5A Electronic Parking Brake (EPB) |
| EF10 | 15A Instrument Panel Fuse and Relay Box |
| EF11 | 15A Keyless Entry System |
| EF12 | 20A Electronic Parking Brake (EPB) / Instrument Panel Fuse and Relay Box |
| EF13 | 20A Front Seat Heaters |
| EF14 | Reserve |
| EF15 | 15A Electronic Gear Selector Module |
| EF16 | 20A Horn |
| EF17 | 10A Front Position Lights |
| EF18 | 15A Left Position Lights |
| EF19 | 15A Right Position Lights |
| EF20 | Reserve |
| EF21 | Reserve |
| EF22 | Reserve |
| EF23 | Reserve |
| EF24 | Reserve |
| EF25 | Reserve |
| EF26 | Reserve |
| EF27 | 10A Brake Switch / Engine Control Module (ECM) / Keyless Entry System / Blind Spot Monitoring (BSM) / Anti-Theft Horn Relay (FRY01) |
| EF28 | Reserve |
| EF29 | 15A Fuel Pump |
| EF30 | 10A Engine Control Module (ECM) |
| EF31 | Reserve |
| EF32 | 20A Transmission Control Module (TCM) |
| EF33 | Reserve |
| EF34 | Reserve |
| EF35 | Reserve |
| EF36 | Reserve |
| EF37 | 20A Vacuum Pump |
| EF38 | Reserve |
| EF39 | Reserve |
| EF40 | 30A Starter Motor |
| EF41 | 10A Air Conditioning Compressor Clutch |
| EF42 | 15A Fuel Injectors |
| EF43 | 7.5A Variable Valve Timing (VVT) System / Solenoid Valve |
| EF44 | 15A Ignition Coils |

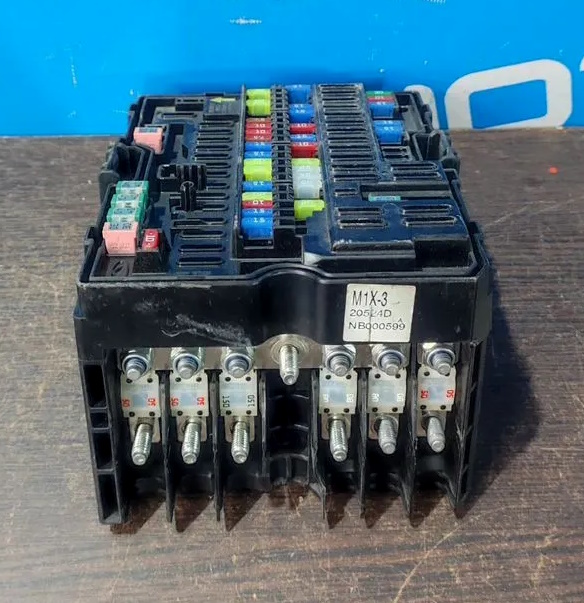

High-power fuses FB01 – FB06 are located on the side of the block.
Passenger compartment

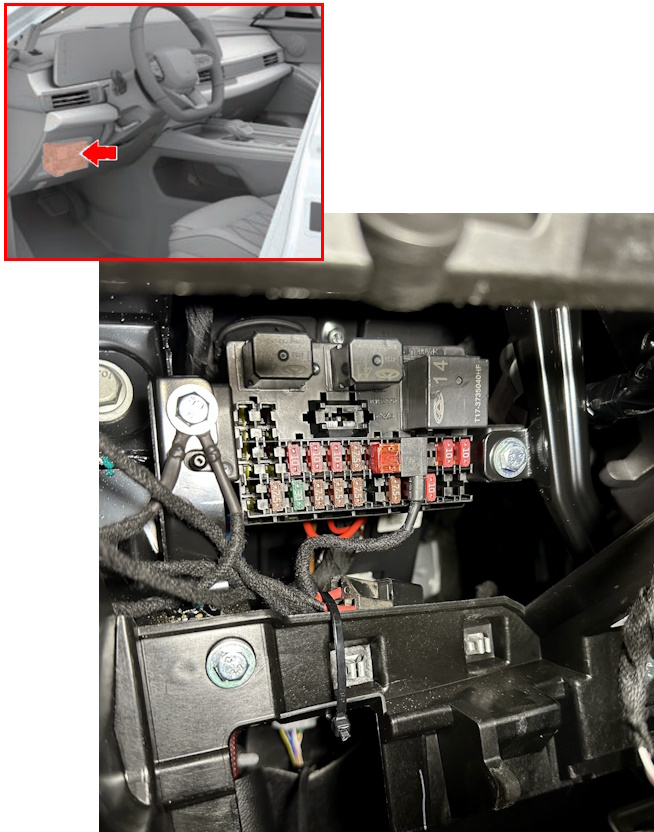

Inside the vehicle, the fuse box is located at the bottom of the dashboard on the driver’s side.

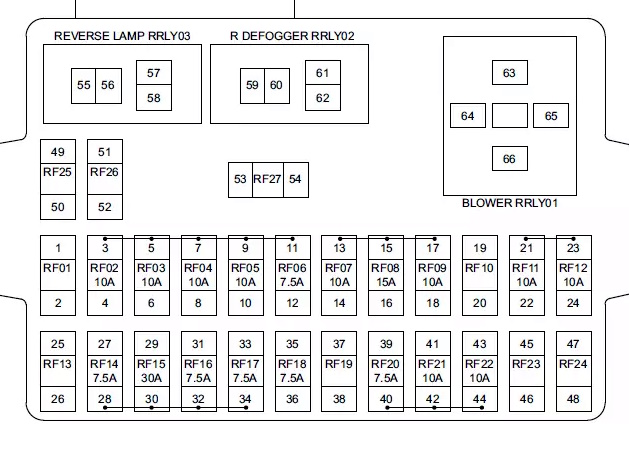

Diagram
Designation
| RF01 | Reserved |
| RF02 | 10A Steering Angle Sensor |
| RF03 | 10A Instrument Cluster |
| RF04 | 10A Airbag System, B1 Module |
| RF05 | 10A Blind Spot Monitoring (BSM), Electric Power Steering (EPS) |
| RF06 | 7.5A Electronic Traction Control (ETC) |
| RF07 | 10A Body Control Module (BCM), Audio System, USB Charging, Wireless Charging Module |
| RF08 | 15A Spare Fuse |
| RF09 | 10A Auto-Dimming Rearview Mirror |
| RF10 | 10A No Circuit |
| RF11 | 10A Climate Control Panel, HVAC Control Module, Air Ionizer, Audio System, T-BOX Telematics Module, Backup Light Relay (RRLY03), Headlight Leveling System |
| RF12 | 10A Central Locking System, Passive Entry Passive Start (PEPS) (1.5T + CVT Luxury Trim) |
| RF13 | Reserved |
| RF14 | 7.5A T-BOX Telematics Module, Front Overhead Console Lamp, Dashcam USB Power Outlet, Passive Entry Passive Start (PEPS), Central Locking System, Electronic Traction Control (ETC) |
| RF15 | 30A Rear Window Defogger Relay |
| RF16 | 7.5A Rear Window Defogger Relay Control Circuit |
| RF17 | 7.5A Left/Right Ambient Footwell Lighting, Wireless Charging Module |
| RF18 | 7.5A HVAC Control Module, Climate Control Panel, Air Ionizer, Power Mirror Control, Rear Window Defogger |
| RF19 | Reserved |
| RF20 | 7.5A OBD-II Diagnostic Connector, HVAC Control Module, Climate Control Panel, Air Mode Selection Actuator, Air Inlet Recirculation Actuator |
| RF21 | 10A Instrument Cluster, Driving Recorder (Dashcam) |
| RF22 | 10A Audio System, Center Console Control Buttons |
| RF23 | Reserved |
| RF24 | Reserved |
Relays
- RRLY01 Blower Relay — controls the heating, ventilation, and air conditioning (HVAC) blower motor
- RRLY02 Rear Defogger Relay — activates the rear window defroster
- RRLY03 Reverse Lamp Relay — controls the reversing lights when the vehicle is in reverse.
