Toyota Highlander 3rd generation was produced in 2014, 2015, 2016, 2017, 2018, 2019 with the designation XU50. In some countries it is sold under the name Toyota Kluger 3. During this time, the model received a facelift. In this article we will present a description of fuses and relays Toyota Highlander Kluger 3 with fuse box diagrams, their locations and photo examples of performance. Let’s highlight the cigarette lighter fuse.
Fuse and relay assignments may differ from those shown and depend on the year of manufacture and the level of electrical equipment in your vehicle.
Passenger compartment

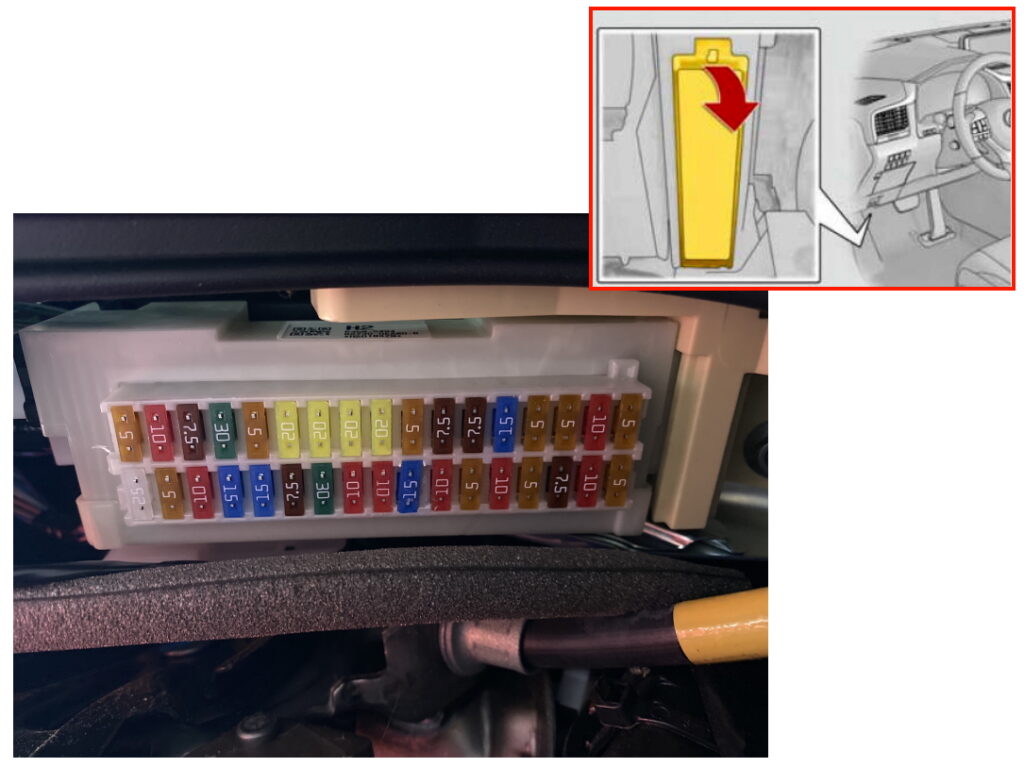

In the passenger compartment, the fuse and relay box is located under the dashboard on the driver’s side. The protective cover must be removed for access.
Check the element assignments against your schematics on the cover of the units.
Diagram
Assignment
| TAIL | Tail lights |
| ECU-ACC | Engine control unit |
| SFT LOCK-ACC | AT Shift lock control system |
| P/OUTLET NO. 1 | Cigar lighter / power outlet |
| A/BAG-IG | Airbag |
| IG2 | Protects several circuits |
| METER | Instrument cluster |
| P/W R/L | Power windows rear left |
| P/W F/L | Power windows front left |
| P/W F/R | Power windows front right |
| P/W R/R | Power windows rear right |
| AM1 | Starter system |
| S/ROOF | Sunroof |
| OBD | On-board diagnostics |
| DOOR BACK | DOOR BACK |
| A/C | Air conditioning |
| DSS-IG | DSS-IG |
| IG1 NO. 3 | Protects several circuits |
| IG1 NO. 2 | Protects several circuits |
| IG1 NO. 1 | Protects several circuits |
| BKUP LP | Backup lights |
| EPS-IG | Electric power steering |
| ECU-IG | Engine control unit |
| P/OUTLET NO.2 | Cigar lighter / power outlet |
| WASHER | Windshield washer |
| WIPER RR | Rear wiper |
| WIPER FR | Front wiper |
| AM2 | Starter system |
| STRG LOCK | Steering lock |
| HAZ | Hazard light |
| DOME | Dome light and interior light |
| MPX-B NO. 3 | MPX-B NO. 3 |
| D/L | Power door lock system |
The fuses labelled P/OUTLET are responsible for the operation of the cigarette lighters.
Engine compartment
The main fuse box is located in the engine compartment, under the bonnet, next to the battery, on the left-hand side.
Photo and diagram
Designation
| P/OUTLET NO.4 | Cigar lighter / power outlet |
| MIR HTR | Mirror heater |
| STOP | Stop lights |
| FOG RR | Rear fog lights |
| INV | DC/AC inverter |
| FAN NO.1 [2GR-FE, 1AR-FE] | Electric cooling fan |
| PBD | Power back door |
| A/C RR | Rear air conditioning system |
| PTC HTR NO.3 | Additional heater |
| IG1 NO.4 | Protects several circuits |
| FAN | Electric cooling fan |
| HTR | Air conditioning system |
| ALT | Battery and charging system |
| ABS NO.2 | Anti-lock braking system |
| ST | Starter system |
| ST NO.2 | Stop & Start System |
| BBC | Stop & Start system |
| J/B-B | Junction box bus |
| EPS | Electric power steering |
| RADIO | Radio and audio system |
| FUEL PMP | Fuel pump |
| A/F HTR NO.2 | Air fuel ratio sensor |
| EFI NO.4 | Multiport fuel injection system |
| WIPER-S | Wipers |
| A/C W/PMP | Air conditioning |
| AMP | Audio system |
| MAYDAY | Data communication module (telematics system) |
| ODS | Occupant detection system (airbag) |
| EDU | Emissions control system |
| ETCS | Electronic throttle control system |
| ALT-S | Battery and charging system |
| TOWING | Trailer lights |
| S-HORN | Horn / anti-theft deterrent |
| HORN | Horn |
| H-LP LO LH | Left-hand headlight low beam |
| H-LP LO RH | Right-hand headlight low beam |
| IG2-MAIN | Protects several circuits |
| IG2-EFI | Multiport fuel injection system |
| A/F HTR | Air fuel ratio sensor |
| EFI-MAIN | Multiport fuel injection system |
The optional relay unit can be installed separately.
