Renault Clio 4 th generationwas produced in 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019 as a hatchback and station wagon (Renault Clio Sports Tourer) with both petrol and diesel engines. During this time, the model has been updated. In this post, we will present a description of the Renault Clio 4 fuses and relays with fuse box diagrams, their locations and photo examples of performance. Select the fuse responsible for the cigarette lighter.
The purpose of the fuses and relays may be different depending on the year of manufacture, the region of delivery and the level of electrical equipment of your car.
Passenger compartment
In the passenger compartment, the fuse and relay box is located under the instrument panel on the left side behind the protective cover. To access, remove the protective cover.
The fuse box itself will look something like this.
Diagram
Assignment
| 1 | Windshield wiper, steering column switches |
| 2 | Front left daytime running lights, right side lights, left high beam, right low beam, front fog lights |
| 3 | Interior lighting, license plate lighting, fog lights |
| 4 | Right side lights, rear side lights |
| 5 | Left side lights, front side lights |
| 6 | Low Beam, Front Right Daytime Running Light, Left Side Lights, Right High Beam |
| 7 | low beam headlight |
| 8 | Right high beam headlight |
| 9 | Left High Beam Headlight, Steering |
| 10 | Steering column controls, speed limiter/cruise control, interior rearview mirror, belt warning module, parking sensor, auxiliary heating, headlight beam leveling, rear window defroster |
| 11 | Central door lock, rain and light sensor, steering wheel angle sensor, car start button, electric rear windows |
| 12 | Interior lamp, trunk light, air conditioning, power windows |
| 13 | ABS-ESC, brake switch |
| 14 | Steering column controls, brake switch |
| 15 | Horn |
| 16 | Rear fog lights |
| 17 | Cigarette lighter fuse |
| 18 | Radio and multimedia, diagnostic socket |
| 19 | Power steering |
| 20 | GPL |
| 21 | Airbag, electric steering column lock |
| 22 | Injection, start, fuel module (fuel pump fuse Renault Clio 4) |
| 23 | Brake switch, rear window wiper, passenger compartment ECU |
| 24 | Daytime Running Lights |
| 25 | Electric headlight adjustment, rear window, heating, parking aid, cruise control, radio, heated seats, seat belt warning |
| 26 | Automatic transmission |
| 27 | Reversing lamp, rear wiper, interior ECU, automatic transmission |
| 28 | Dashboard |
| 29 | Steering column controls, Alarm |
| 30 | Air Conditioning, Steering Column Control, Energy ECU |
| 31 | Wipers, rear reversing lights, energy ECU |
| 32 | Central locking opening elements |
| 33 | direction indicators |
| 34 | Interior ECU, hands free access |
| 35 | interior lighting, power windows, air conditioning, power mirrors, brake lights, ABS system, ECU |
| 36 | Towbar connector – depends on the configuration |
| 37 | Heated seats – depending on equipment |
| 38 | Heated rear window – depends on the configuration |
| 39 | Electric drive of rear-view mirrors – depends on the configuration |
The fuse 17 to 15A is responsible for the operation of the cigarette lighter.
Some relays can be installed from the bottom, for example, power windows.
Engine compartment

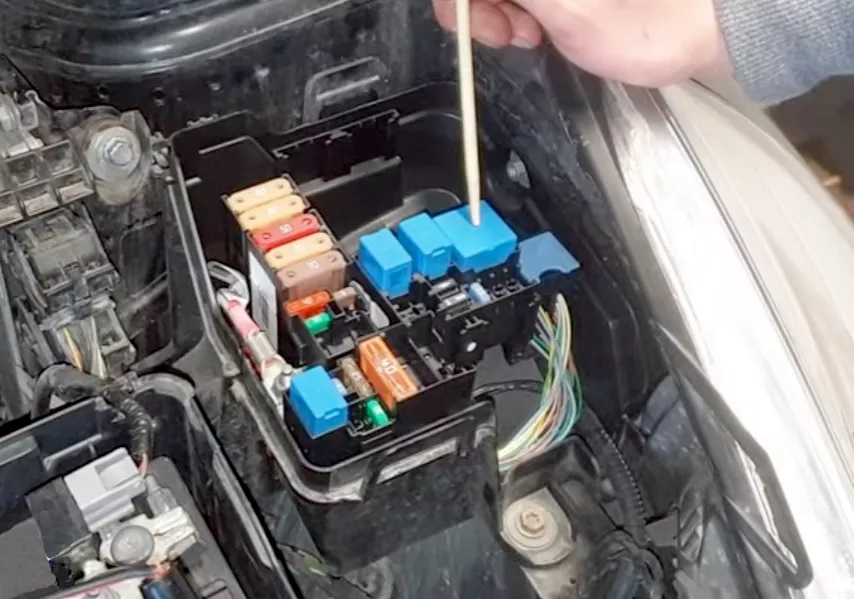

In the engine compartment, under the hood, the fuse and relay box is installed on the left side and is also closed with a protective cover.
Photo – example
Diagram
Designation
| Ef1 | 5A Heated washer nozzles 7.5A Electrical control unit |
| Ef2 | Reserve |
| Ef3 | 25/30A ABS/ESP control unit |
| Ef4 | 40A Rear defroster, exterior mirror defrosters, fuse circuits F38 and F47 |
| Ef5 | 20A/70A Passenger compartment fuse/relay box, fuse circuits F5/ F23/ F24/ F25/ F26/ F27/ F42/ F44 |
| Ef6 | 80A Fuse box and relay in the cabin, Heater heater relay |
| Ef7 | 50A ABS/ESP control unit / 50A Power supply for fuse F7, F9 in cabin unit |
| Ef8 | Reserve |
| Ef9 | 80A Additional heater |
| Ef10 | 40A Heated windshield, right side |
| Ef11 | 40A Heated windshield, left side |
| Ef12 | 30A Starter |
| Ef13 | 15A Automatic transmission control unit |
| Ef14 | 25A injection ECU and engine circuit protection, F5 fuse supply, engine injectors, fuel gauge, fuel pump, ignition coils |
| Ef15 | 15A A/C compressor clutch relay, A/C compressor clutch |
| Ef16 | 50A Cooling fan |
| Ef17 | 40A Automatic transmission fluid cooling fan*3 |
| Ef18 | 80A Electric power steering pump |
| Ef19 | Reserve |
| Ef20 | Reserve |
| Ef21 | Reserve |
| Ef22 | Reserve |
| Ef23 | 15A Engine management system, Fan control unit, A/C compressor relay control. |
| Ef24 | Reserve |
| Ef25 | Reserve |
| Ef26 | Reserve |
| D | AC compressor clutch diode |
Relay
| Er1 | Starter relay |
| Er1 | Reverse light relay |
| Er2 | Burglar Siren Relay |
| Er3 | Starter relay |
| Er3 | Fluid Cooling Fan Relay |
| Er3 | Reverse light relay |
| Er4 | Main relay of the engine management system |
| Er5 | A/C Compressor Magnetic Clutch Relay |
| Er6 | Fuel pump relay |
Check out our YouTube video for more on this topic. Don’t forget to subscribe!
There is something to add – write in the comments.
