Geely Monjaro is a mid-size crossover that was produced in 2022, 2023, 2024, 2025, 2026 and to the present. Also known as Geely Xingyue L. In this material you can find a description of Geely Monjaro fuses and relays with fuse box diagrams and their locations. Let’s highlight the cigarette lighter fuse.
The purpose of fuses and relays and their number may differ from those presented and depend on the year of manufacture and the level of electrical equipment of your car.
Passenger compartment

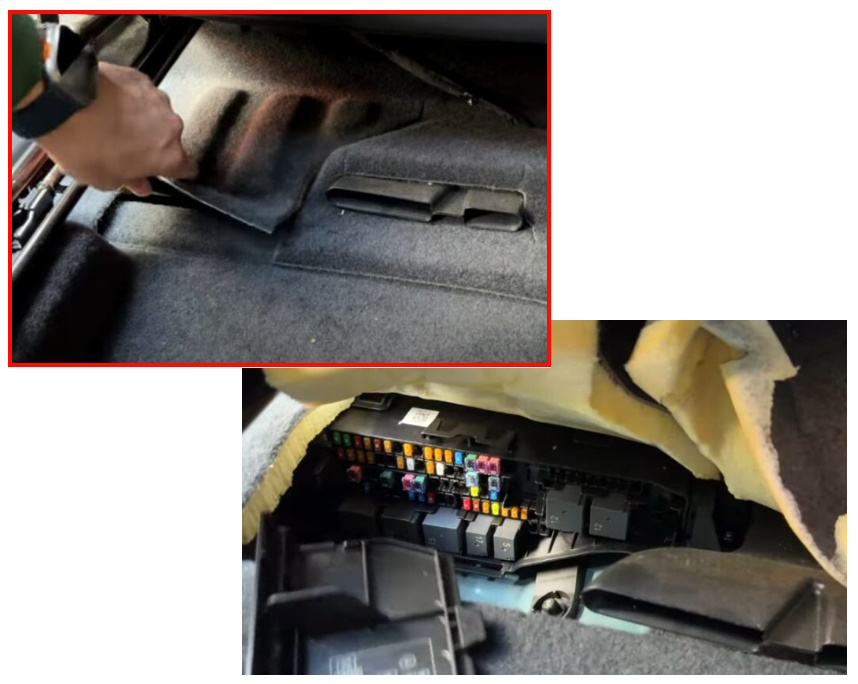

Inside the car, the fuse and relay box is located in an additional compartment under the driver’s seat. To gain access you need to remove the panel.
Diagram
Assignment
| CF01 | 30A Driver Door Module Fuse |
| CF02 | 30A Front Passenger Door Module Fuse |
| CF03 | 10A Temperature Control Unit Fuse |
| CF04 | 5A Tail light fuse |
| CF05 | 7.5A Fuse for center console switch assembly, center console display and passenger side display |
| CF06 | 5A Driver Information System Module, Driver Information System (DIS) Display Fuse |
| CF08 | 5A Fuse for Steering Wheel Module and BLE NFC Communication Module |
| CF10 | 5A Fuse for gear selector module, driving mode switch module and center console switch assembly |
| CF11 | 5A Fuse for telematics and communication antenna module, rain and light sensor and RF antenna |
| CF12 | 5A Vehicle Gateway Module Fuse |
| CF13 | 15A Infotainment system head unit fuse |
| CF14 | 40A Fan Module Fuse |
| CF15 | 30A Passenger Seat Connector Fuse |
| CF16 | 30A Driver’s Seat Connector Fuse |
| CF17 | 15A Steering Wheel Module Fuse |
| CF26 | 10A OBD II Diagnostic Connector Fuse |
| CF27 | 5A POC module fuse |
| CF27 | 10A PDC Module Fuse |
| CF28 | 5A Relay Coil Fuse |
| CF32 | 5A Fuse for left and right obstacle detection system control units |
| CF33 | 25A Left Rear Door Module Fuse |
| CF35 | 5A Active Safety Main Controller Fuse |
| CF36 | 25A Right Rear Door Module Fuse |
| CF39 | 20A Audio control unit fuse |
| CF43 | 30A Power Tailgate Module Fuse |
| CF44 | 30A Rear Seat Module Fuse |
| CF46 | 40A Central control unit fuse |
| CF48 | 30A Circuit Fuse + Filter Coil |
| CF49 | 40A Central control unit fuse |
| CF52 | 5A SRS Module Fuse |
| CF54 | 20A Fuel Pump Module Fuse |
| CF56 | 15A Rear Wiper Motor Fuse |
| CF59 | 15A Electronic Differential Control Module Fuse |
| CF63 | 15A Fuse for 12V socket in center console |
| CF64 | 15A Fuse for 12V socket in luggage compartment |
| CF65 | 10A Rear Seat USB Fuse |
| CF68 | 10A USB/Wireless Charging Fuse |
| CF69 | 7.5A Instrument Cluster Fuse |
| CF70 | 5A Rear Console Switch Box Fuse |
| CF71 | 20A Top Hatch Module Fuse |
| CF72 | 5A HUD Module Fuse |
| CF73 | 5A Front Camera Fuse |
Fuses CF63 and CF64 are responsible for the operation of the cigarette lighter.
Engine compartment

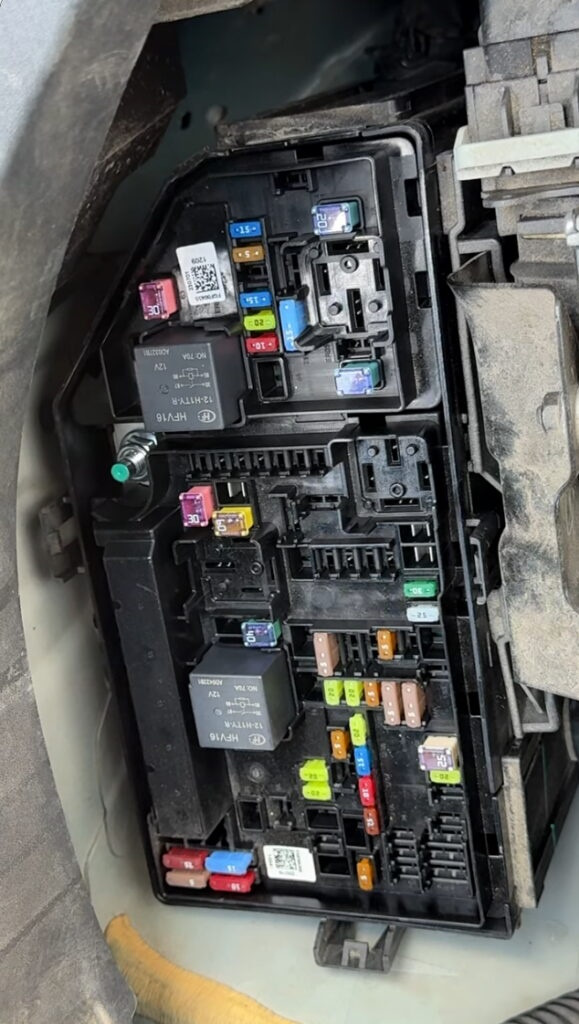

Under the hood, in the engine compartment, the fuse and relay box is located on the left side near the battery. To access the unit, you must remove the protective cover.
Diagram
Designation
| EF04 | 30A Front Wiper Motor Fuse |
| EF07 | 40A Main Engine Fuse (Vehicle Dynamics Control) |
| EF08 | 60A Main Engine Fuse (Vehicle Dynamics Control) |
| EF16 | 20A Right headlight fuse |
| EF17 | 20A Left headlight fuse |
| EF27 | 5A Front Radar Fuse |
| EF28 | 20A Left headlight fuse |
| EF29 | 5A Brake Light Switch Fuse |
| EF35 | 20A Right headlight fuse |
| EF41A | 5A Chassis Fuse |
| EF41B | 5A Parking Distance Control Output Power Fuse |
| EF42 | 5A Restraint System (SRS) Module Fuse |
| EF44A | 5A Fuse for headlight control sensor |
| EF44B | 5A Accelerator Pedal Position Sensor Fuse |
| EF51 | 20A Horn Power Fuse |
| EF52 | 25A Windshield Washer Motor Fuse |
| EF55 | 40A Heated windshield fuse |
| EF56 | 40A Heated windshield fuse |
| EF60 | 60A Engine Coolant Pump Fuse |
| EF61 | 60A Engine Cooling Fan Fuse |
| EF61 | 80A Engine Cooling Fan Fuse |
| EF63 | 30A Starter Motor Fuse |
| EF65 | 10A ECM Sensor Fuse |
| EF66 | 20A ECM Power Fuse |
| EF67 | 15A Engine Solenoid Valve Fuse |
| EF69 | 5A Engine Control Module Fuse |
| EF70 | 15A Transmission Control Module Fuse |
| EF71A | 15A Ignition Coil Fuse |
| EF71B | 15A Oxygen sensor fuse |
| EF74 | 30A Transmission actuator control unit fuse |
| EF76 | 30A Transmission actuator control unit fuse |
