The Chery Arrizo 8 was produced in 2022, 2023, 2024, 2025, 2026, and currently. It is also known as the Chery Fulwin A8. During this time, the model received an update. In this article, you will find a description of the Chery Arrizo 8 fuses and relays, including fuse box diagrams, their locations, and photo examples. We will highlight the fuse responsible for the cigarette lighter.
The purpose of fuses and relays, as well as their number, may differ from those shown and depend on the year of manufacture and the level of electrical equipment in your vehicle.
Engine compartment

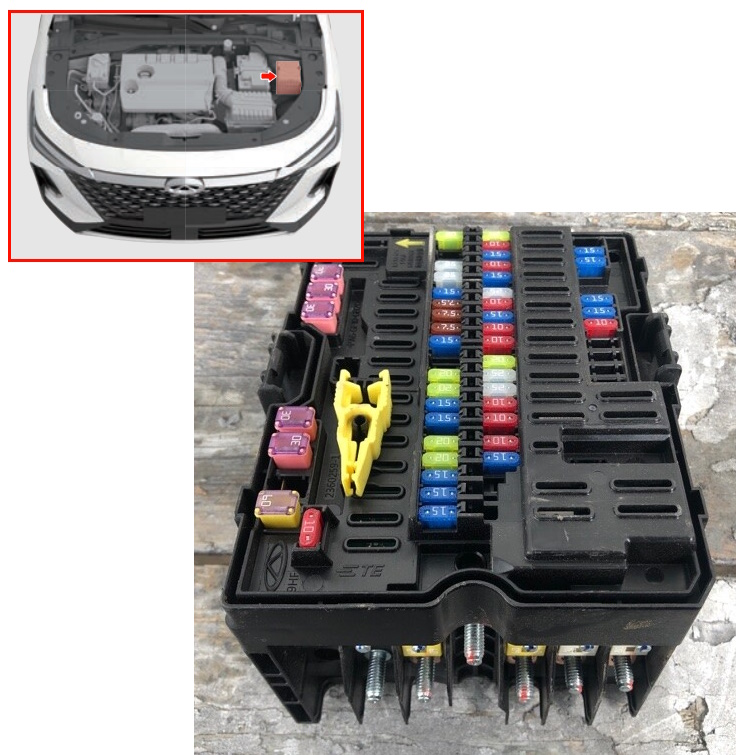

The main fuse box is located under the hood of the car, in the engine compartment on the left side. To access it, lift the protective cover.

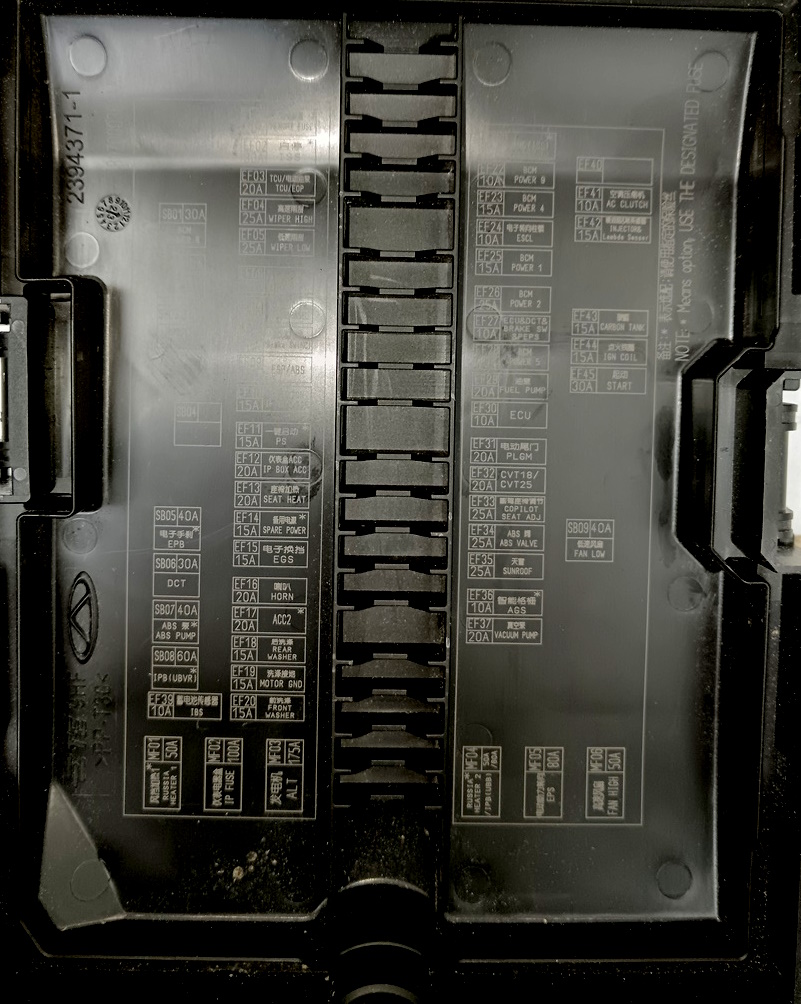

Check the purpose of the elements with your diagrams on the back of the protective cover.

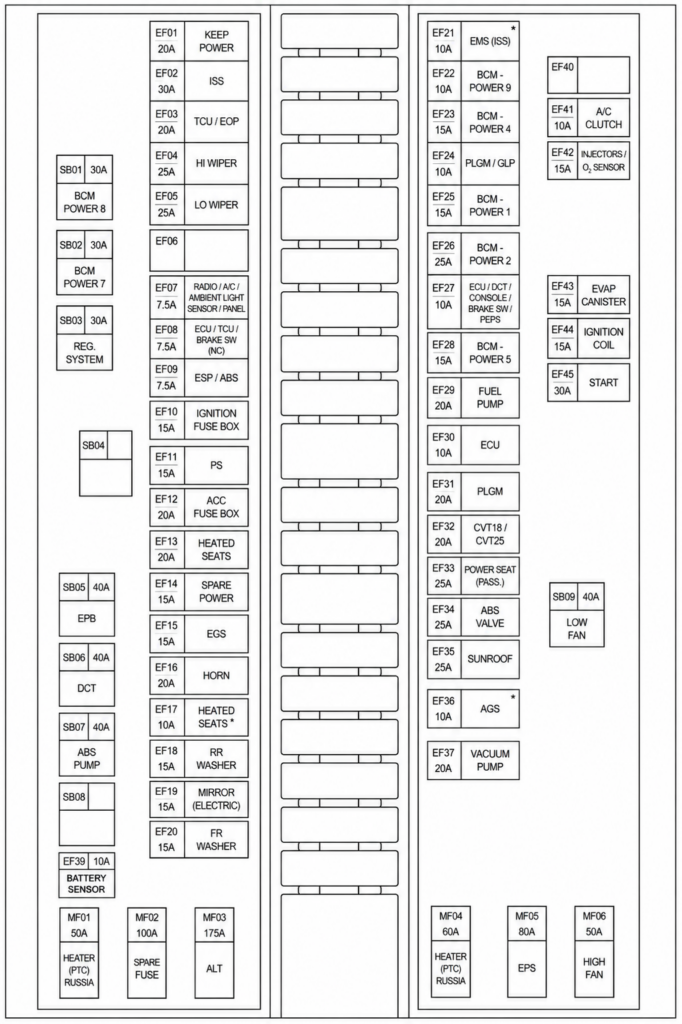

Diagram
Assignment
| EF01 | 20A — Fuse Configuration Memory. Supplies power to the fuse configuration memory and retained electrical settings. |
| EF02 | 30A — Idle Stop & Start (ISS). Supplies power to the automatic engine stop/start system. |
| EF03 | 20A — Transmission Control Unit (TCU) / Electric Oil Pump (EOP). Powers the transmission control module and electric transmission oil pump. |
| EF04 | 25A — High-Speed Windshield Wiper. Supplies power to the high-speed circuit of the front windshield wiper motor. |
| EF05 | 25A — Low-Speed Windshield Wiper. Supplies power to the low-speed circuit of the front windshield wiper motor. |
| EF06 | Not Used. |
| EF07 | 7.5A — Radio / A/C / Ambient Light Sensor / Control Panel. Supplies power to the infotainment system, climate control, ambient light sensor, and control panel. |
| EF08 | 7.5A — ECU / TCU / Brake Pedal Switch. Powers the engine control unit, transmission control unit, and brake pedal switch. |
| EF09 | 7.5A — Electronic Stability Program (ESP) / Anti-lock Braking System (ABS). Supplies power to the vehicle stability and anti-lock braking systems. |
| EF10 | 15A — IGN Fuse Block. Supplies power to ignition-switched electrical circuits. |
| EF11 | 15A — Power Steering (PS). Supplies power to the electric power steering system. |
| EF12 | 20A — ACC Fuse Block. Supplies power to accessory-mode electrical circuits. |
| EF13 | 20A — Heated Seats. Powers the seat heating elements. |
| EF14 | 15A — Spare Power Fuse. Reserved power circuit for optional electrical equipment. |
| EF15 | 15A — Electronic Gear Selector (EGS). Supplies power to the electronic transmission selector system. |
| EF16 | 20A — Horn. Supplies power to the vehicle horn. |
| EF17 | 10A — Heated Seats Control. Supplies power to the heated seat control circuit. |
| EF18 | 15A — Rear Washer Pump. Supplies power to the rear window washer pump. |
| EF19 | 15A — Outside Mirror Power Adjustment. Powers the exterior mirror adjustment motors. |
| EF20 | 15A — Front Washer Pump. Supplies power to the windshield washer pump. |
| EF21 | 10A — Engine Management System (EMS) / Idle Stop & Start (ISS). Supplies power to the engine management system supporting the Start/Stop function. |
| EF22 | 10A — Body Control Module (BCM) – Power Supply 9. Provides power to the BCM. |
| EF23 | 15A — Body Control Module (BCM) – Power Supply 4. Additional power circuit for the BCM. |
| EF24 | 10A — Parking Lamp Control Module (PLGM / GLP). Supplies power to the parking lighting control module. |
| EF25 | 15A — Body Control Module (BCM) – Power Supply 1. Main power circuit for the BCM. |
| EF26 | 25A — Body Control Module (BCM) – Power Supply 2. High-current power supply for the BCM. |
| EF27 | 10A — ECU / DCT / Center Console / Brake Pedal Switch / PEPS. Supplies power to the engine control unit, dual-clutch transmission controller, center console, brake pedal switch, and Passive Entry Passive Start system. |
| EF28 | 15A — Body Control Module (BCM) – Power Supply 5. Additional BCM power circuit. |
| EF29 | 20A — Fuel Pump. Supplies power to the electric fuel pump. |
| EF30 | 10A — Engine Control Unit (ECU). Supplies power to the engine control module. |
| EF31 | 20A — Parking Lamp Control Module (PLGM). Supplies power to the parking lighting control module. |
| EF32 | 20A — CVT18 / CVT25. Supplies power to the continuously variable transmission control system. |
| EF33 | 25A — Right Power Seat Adjuster. Powers the electric adjustment motors of the right front seat. |
| EF34 | 25A — ABS Solenoid Valve. Supplies power to the ABS hydraulic control valves. |
| EF35 | 25A — Power Sunroof. Supplies power to the sunroof motor. |
| EF36 | 10A — Active Grille Shutter (AGS). Supplies power to the active grille shutter system. |
| EF37 | 20A — Vacuum Pump. Supplies power to the electric brake vacuum pump. |
| EF38 | Not Used. |
| EF39 | 10A — Battery Sensor. Supplies power to the intelligent battery monitoring sensor. |
| EF40 | Not Used. |
| EF41 | 10A — A/C Compressor Clutch. Supplies power to the air conditioning compressor clutch. |
| EF42 | 15A — Fuel Injectors / Oxygen Sensors. Supplies power to the fuel injectors and oxygen sensors. |
| EF43 | 15A — EVAP Canister Purge Valve. Supplies power to the evaporative emissions system purge solenoid. |
| EF44 | 15A — Ignition Coil. Supplies power to the engine ignition coils. |
| EF45 | 30A — Starter System. Supplies power to the engine starting circuit. |
Passenger compartment

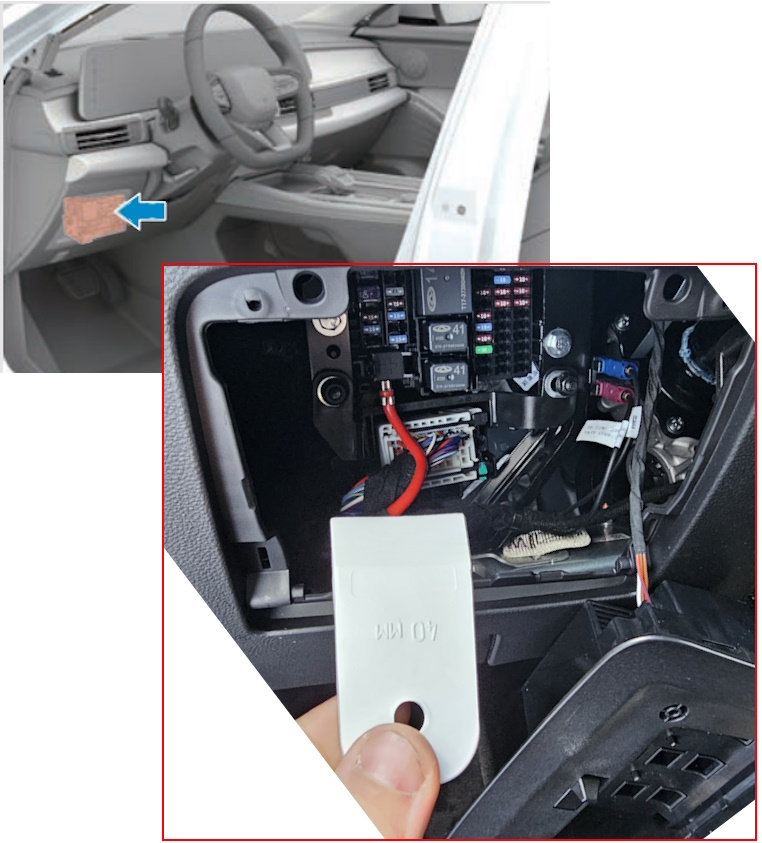

Inside the vehicle, the fuse and relay box is located at the bottom of the dashboard on the driver’s side.

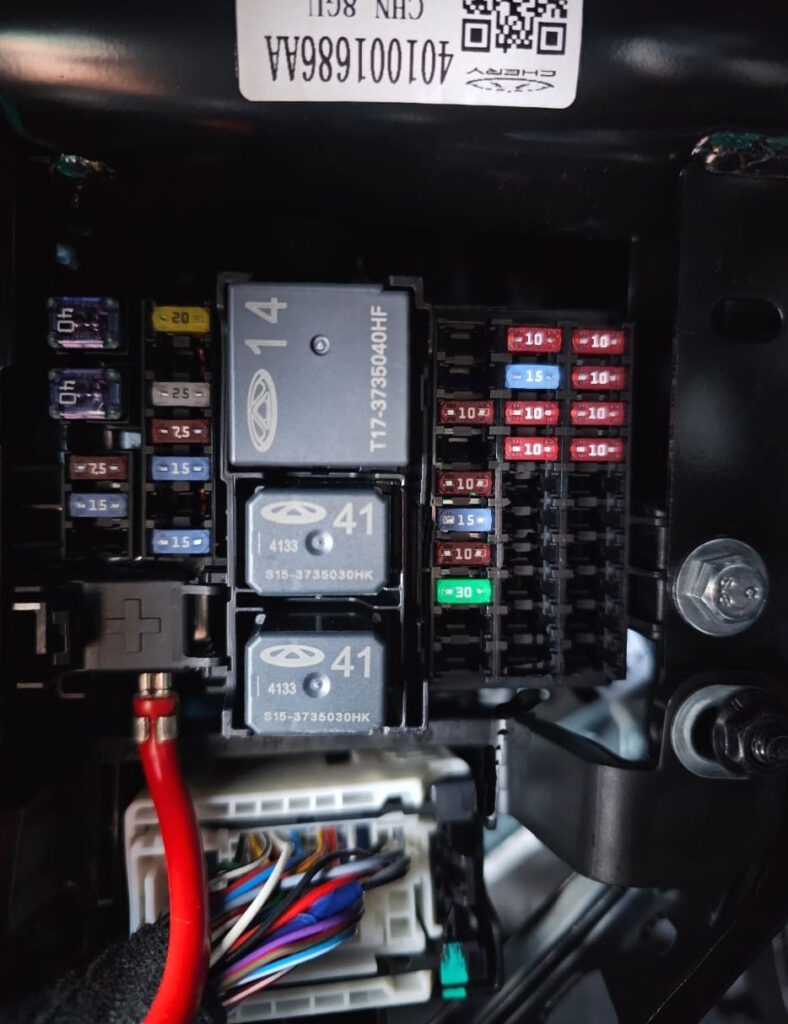

Photo of fuse box

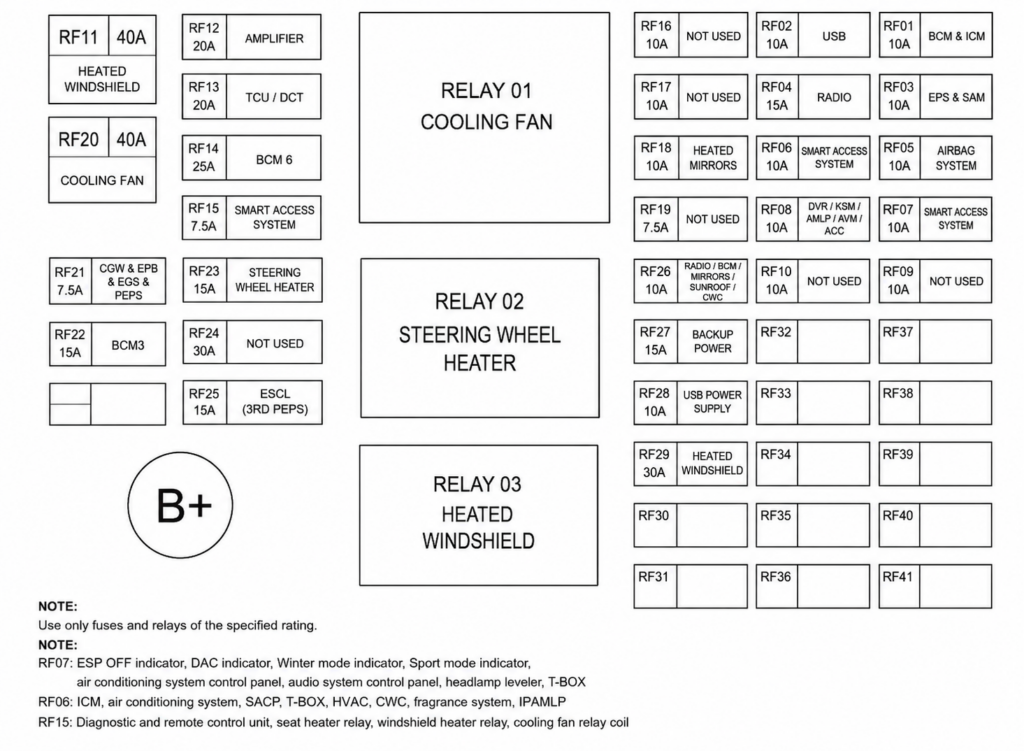

Diagram
Designation
| RF01 | 10A — BCM & ICM. Supplies power to the Body Control Module (BCM) and Integrated Control Module (ICM). |
| RF02 | 10A — USB. Supplies power to the vehicle’s USB charging and data ports. |
| RF03 | 10A — EPS & SAM. Supplies power to the Electric Power Steering (EPS) system and the Signal Acquisition Module (SAM). |
| RF04 | 15A — Radio. Supplies power to the infotainment system and radio receiver. |
| RF05 | 10A — Airbag System (SRS). Supplies power to the Supplemental Restraint System, including airbags and seat belt pretensioners. |
| RF06 | 10A — Smart Access System. Supplies power to the smart key, passive entry, and push-button start system. |
| RF07 | 10A — Smart Access System. Additional power circuit for the smart access and starting system. |
| RF08 | 10A — DVR / KSM / AMLP / AVM / ACC. Supplies power to the digital video recorder, key system module, ambient lighting module, Around View Monitor, and Adaptive Cruise Control. |
| RF09 | 10A — Not Used. |
| RF10 | 10A — Not Used. |
| RF11 | 40A — Heated Windshield. Supplies power to the electric windshield heating system. |
| RF12 | 20A — Audio Amplifier. Supplies power to the premium audio amplifier. |
| RF13 | 20A — TCU / DCT. Supplies power to the Transmission Control Unit (TCU) and Dual-Clutch Transmission (DCT) control system. |
| RF14 | 25A — BCM Power Supply 6. Power circuit No. 6 for the Body Control Module. |
| RF15 | 7.5A — Smart Access System. Supplies power to the smart key and passive entry/start system. |
| RF16 | 10A — Not Used. |
| RF17 | 10A — Not Used. |
| RF18 | 10A — Heated Outside Mirrors. Supplies power to the exterior mirror heating system. |
| RF19 | 7.5A — Not Used. |
| RF20 | 40A — Cooling Fan. Supplies power to the engine cooling fan motor. |
| RF21 | 7.5A — CGW / EPB / EGS / PEPS. Supplies power to the Central Gateway, Electronic Parking Brake, Electronic Gear Selector, and Passive Entry Passive Start system. |
| RF22 | 15A — BCM Power Supply 3. Power circuit No. 3 for the Body Control Module. |
| RF23 | 15A — Heated Steering Wheel. Supplies power to the steering wheel heating element. |
| RF24 | 30A — Not Used. |
| RF25 | 15A — Electronic Steering Column Lock (ESCL, 3rd Generation PEPS). Supplies power to the electronic steering column locking mechanism. |
| RF26 | 10A — Radio / BCM / Mirrors / Sunroof / CWC. Supplies power to the radio, Body Control Module, outside mirrors, power sunroof, and climate comfort system. |
| RF27 | 15A — Backup Power Supply. Reserved power circuit for optional electrical equipment. |
| RF28 | 10A — USB Power Supply. Supplies power to the vehicle’s USB ports. |
| RF29 | 30A — Heated Windshield. Additional high-current circuit for the windshield heating system. |
| RF30 | Not Used. |
| RF31 | Not Used. |
| RF32 | Not Used. |
| RF33 | Not Used. |
| RF34 | Not Used. |
| RF35 | Not Used. |
| RF36 | Not Used. |
| RF37 | Not Used. |
| RF38 | Not Used. |
| RF39 | Not Used. |
| RF40 | Not Used. |
| RF41 | Not Used. |
| Relay 01 | Cooling Fan Relay. Controls power to the engine cooling fan motor. |
| Relay 02 | Heated Steering Wheel Relay. Controls power to the steering wheel heating system. |
| Relay 03 | Heated Windshield Relay. Controls power to the windshield heating system. |
Fuse 27, 15A, controls the cigarette lighter.
If you have any questions or want to add anything, please leave them in the comments.
