Nissan Navara 3 generation was produced in 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026, 2027 with the designation D23. During this time, the model received a facelift. In our post you can find a description of the fuses and relays Nissan Navara 3G with fuse box diagrams, their locations and photo examples of execution. Note the fuse responsible for the cigarette lighter.
Purpose of fuses and relays may differ from that described here and depends on the year of manufacture and the level of electrical equipment in your vehicle.
Passenger compartment
In the passenger compartment, the fuse box with fuses and relays is located at the bottom of the dashboard behind the glove compartment.
Photo for example
Check the actual description with yours on the back side of the protective cover.

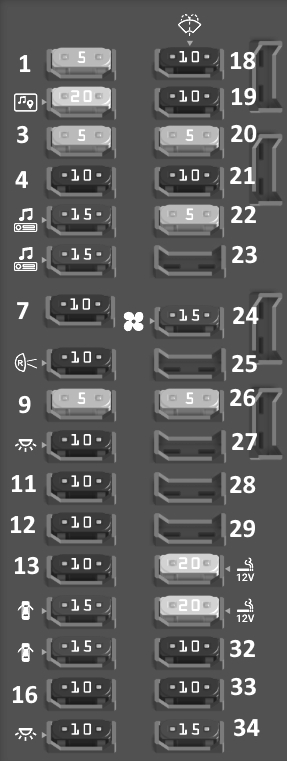

Diagram
Assignment
| 1 | Body Control Module, Power Distribution System |
| 2 | BASE Audio System, Display Audio System, Navigation System, Driver Assistance System |
| 3 | Electronic Parts (BAT CUT) |
| 4 | Meter (BAT) |
| 5 | Audio Amplifier |
| 6 | Audio Amplifier |
| 7 | Extended Storage SW |
| 8 | Back-up Lamp, Body Control Module, Brake Control System, CVT Shift Lock System, Engine Control System, Intelligent Key System, Power Distribution System, Stop Lamp, Intelligent Key System, NVIS, Power Distribution System |
| 9 | Push Engine Start |
| 10 | Cargo Lamp |
| 11 | Heated Steering (Wheel) |
| 12 | Electric Parts (BAT) |
| 13 | Dealer Optionals (BAT) |
| 14 | Body Control Module, Intelligent Key System, Power Door Lock System, Power Window System, Vehicle Security System |
| 15 | Body Control Module, Intelligent Key System, Power Door Lock System, Power Window System, Vehicle Security System |
| 16 | Automatic transmission system |
| 17 | Room Lamp |
| 18 | Washer Pump |
| 19 | SRS Air Bag Control System |
| 20 | Meter (IGN) |
| 21 | Electronic Parts (IGN PWR) |
| 22 | Electronic Parts (IGN SIG) |
| 24 | Blower Motor |
| 26 | Accessory Spare |
| 30 | Power Socket 1 |
| 31 | Power Socket 2 |
| 32 | Dealer Optionals (Acc) |
| 33 | Electronic Parts (Acc) |
| 34 | Blower Motor |
Fuse number 30 and 31 are responsible for the cigarette lighter.
Engine compartment
Under the hood, in the engine compartment of the car, on the left side, next to the battery, there are 3 blocks with fuses and relays.

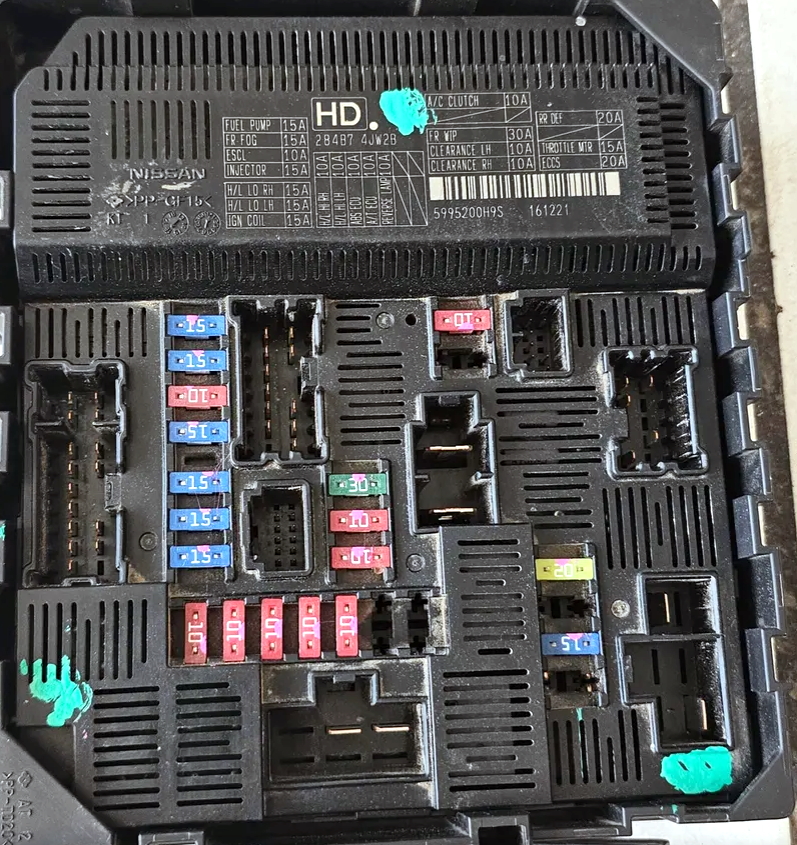

Fuse Box 1
Allocation from the block
Appointment
- (FUEL PUMP) – Fuel pump
- (FR FOG) – Front fog lights
- (ESCL) – Steering lock
- (INJECTOR) – Fuel injectors
- (H/L LO RH) – Right-hand headlight low beam
- (H/L LO LH) – Left-hand headlight low beam
- (IGN COIL) – Ignition coil
- (FR WIP) – Front wipers
- (CLEARANCE LH) – Lleft front/ side parking light
- (CLEARANCE RH) – Right front/ side parking light
- (H/L HI RH) – Right-hand headlight high beam
- (H/L HI LH) – Left-hand headlight high beam
- (ABS ECU) – Anti-lock braking system
- (A/C CLUTCH) – A/C magnetic clutch
- (RR DEF) – Rear window defogger
- (THROTTLE MTR) – Electronic throttle control
- (ECCS) – Air conditioning system
- (A/T ECU) – Automatic transmission controller
- (REVERSE LAMP) – Backup lights
Fuse Box 2
Diagram
Diagram
Description
| 24 | TRAILER TOW TURN |
| 25 | (DTRL) Daytime running lights |
| 27 | TRAILER TOW REV |
| 28 | (INJECTOR 2) Fuel injectors |
| 29 | (DIFF LOCK) Differential Lock |
| 30 | (HORN) Horn |
| 31 | (INJECTOR 1) Fuel injectors |
| G | (F/L INVERTER) Front Left Inverter |
| H | (F/L ELEC BRAKE) Electric trailer brake controller |
| I | F/L TF CONT (MTR) Transfer Case Control (Motor) |
| J | (IGN SW) Ignition switch |
| K | (F/L VDC) Vehicle Dynamic Control |
| L | (F/L ABS MTR) Anti-lock braking system |
| M | (F/L TRAILER TOW) Trailer lights |
| N | (F/L BCM) F/L BCM |
| R1 | (HORN RELAY) Horn |
Relay Box
Diagram
Appointment
| 1 | (VTC CONT 2) Variable Timing Control 2 |
| 2 | (VTC CONT 1) Variable Timing Control 1 |
| 3 | (Inverter) Power outlet (DC/AC inverter) |
| 5 | (H/SEAT) Heated Seat |
| R1 | (DTRL) Daytime Running Lights |
| R2 | (REVERSE LAMP) Reverse Lamp |
| R3 | (Inverter) Power outlet (DC/AC inverter) |
| R4 | (Injector) Fuel injectors |
| R5 | (VDC RLY STOP) Vehicle Dynamic Control Relay Stop |
| R6 | (TRAIL TURN LH) Trailer Turn Left Hand |
| R7 | (TRAIL TURN RH) Trailer Turn Right Hand |
| R8 | (ADAS) Advanced Driver-Assistance Systems |
A high-power fuse block is mounted on the positive terminal of the battery.
