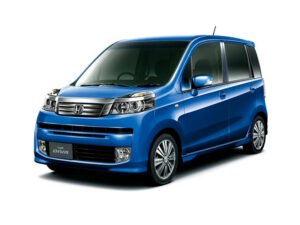

The fifth-generation Honda Life was produced in 2008, 2009, 2010, 2011, 2012, 2013, and 2014 with model code JC1-2. This article provides a description of the Honda Life 5G fuses, including fuse box diagrams and their locations. We’ll highlight the fuse for the cigarette lighter.
The purpose of the fuses and relays and their location may differ from those shown and depend on the year of manufacture, the level of electrical equipment and the region where your car was delivered.
Passenger compartment
Two fuse and relay boxes can be installed in the cabin, they are located under the instrument panel on the driver’s side.
The fuse box itself will look something like this. A diagram with numbers will be applied to it.
Assignment
| 1 | 7.5A Occupant Position Detection System – Passenger position detection system |
| 2 | 10A SRS Airbag System – Airbag system |
| 3 | 7.5A ABS / EPS – ABS and electric power steering control |
| 4 | 7.5A Meter – Instrument cluster |
| 5 | 7.5A Generator – Charging system |
| 6 | 7.5A VB SOL – Solenoid valve |
| 7 | 20A Front Wiper / Washer – Front windshield wiper and washer |
| 8 | 15A Ignition Coil – Ignition coils |
| 9 | 15A Ignition Coil – Ignition coils |
| 10 | 10A Rear Wiper – Rear windshield wiper |
| 11 | 15A Fuel Pump – Fuel pump |
| 12 | 15A Door Lock (Unlock) – Door lock (unlock) |
| 13 | 15A Door Lock (Unlock) – Door lock (unlock) |
| 14 | 15A Door Lock (Lock) – Door lock (lock) |
| 15 | 15A Door Lock (Lock) – Door lock (lock) |
| 16 | 7.5A Back-up Light – Reverse lights |
| 17 | Not used |
| 18 | 10A Heated Door Mirror – Heated side mirrors |
| 19 | 15A Right Headlight – Right headlamp |
| 20 | — Not used |
| 21 | 10A LAF Sensor – Air-fuel ratio sensor |
| 22 | 10A Clearance / Tail Light – Parking and tail lights |
| 23 | Not used |
| 24 | 15A Left Headlight – Left headlamp |
| 25 | 15A PGM-FI – Engine control (fuel injection) |
| 26 | Not used |
| 27 | 20A Driver Power Window – Driver’s power window |
| 28 | 15A Passenger Power Window – Front passenger power window |
| 29 | 15A Rear Right Power Window – Rear right power window |
| 30 | 15A Rear Left Power Window – Rear left power window |
| 31 | 30A Heater Motor – Blower motor |
| 32 | 20A Accessory Socket – Power outlet |
| 33 | 7.5A Accessory – Accessory circuit |
| 34 | Not used |
| 35 | 15A Rear Defogger – Rear window defogger |
| 36 | Not used |
| 37 | 7.5A Air Conditioner – A/C control |
| 38 | 7.5A Door Mirror – Power door mirrors |
| 39 | 30A Door Lock – Central door lock system |
Fuse 32, rated at 20A, controls the cigarette lighter.
Engine compartment
Under the hood the fuse and relay box is located on the left side next to the battery and is covered by a protective cover.
Designation
| 1 | 70A Battery – Main battery fuse |
| 2 | 50A Ignition Main – Main ignition circuit |
| 3 | 40A ABS Motor – ABS hydraulic motor |
| 4 | 20A ABS – ABS control unit |
| 5 | 10A Horn / Stop Light – Horn and brake lights |
| 6 | 10A Hazard Warning Light – Hazard lights |
| 7 | 40A EPS – Electric power steering |
| 8 | 30A Cooling Fan – Radiator cooling fan |
| 9 | Not used |
| 10 | 7.5A MG Clutch – A/C compressor clutch |
| 11 | 7.5A Honda Smart Parking Assist System – Parking assist system |
| 12 | 10A Fog Light – Front fog lights |
| 13 | 10A Back-up / Room Light – Reverse lights and interior lights |
