Toyota Land Cruiser 70 (1999 – 2018) Fuse and Relay

Toyota Land Cruiser 70 is a full-size SUV produced from 1984 to the present day with both petrol and diesel engines in various modifications and changes – LJ73, LJ76, LJ78, RJ73, RJ76 и RJ78. In this post you can find a description of fuses and relays Toyota Land Cruiser 70 with fuse box diagrams, their locations and photo examples of performance. We also highlight the fuse responsible for the cigarette lighter.

TLC 70

The purpose of some elements in the diagrams may differ from the one presented and depends on the year of manufacture, configuration and country of delivery. In case of difficulty, contact your nearest dealer.

Passenger compartment

Type 1

Up to 2009

The fuse box is mounted on the pillar under the instrument panel, on the driver’s side, and is covered with a protective cover.

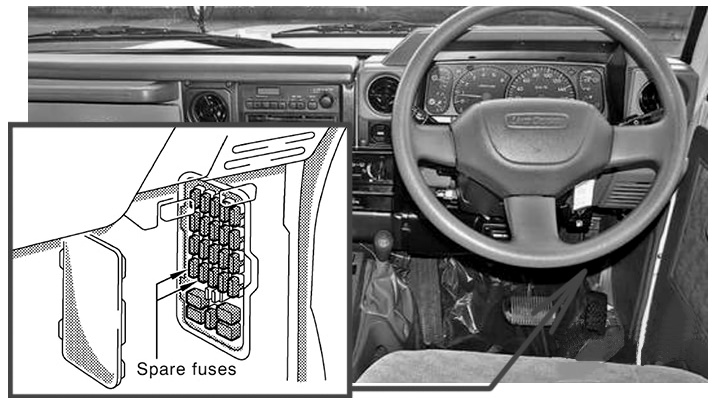

Location in salon

Photo for example

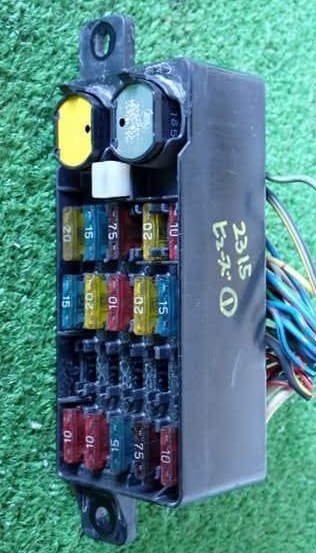

Fuse box Type 1

Diagram

Diagram Type 1

Assignment

1SPARE — 7.5A
2SPARE — 15A
3CHARGE / IGN — 7.5A — Gasoline: No circuit / Diesel: Electronically controlled fuel injection pump system
4CIG — 15A — Cigarette lighter, clock, radio
5EFI / ECD — 15A — Fuel injection system
6A.C — 10A — Air conditioning system
7TURN — 10A — Turn signal lights
8DEFOG — 15A — No circuit
9WIPER — 20A — Wipers, washers, back-up lights
10ENGINE — 15A — Charging system, gauges, warning system
11ST — 30A — Diesel starting system
12STOP — 10A — Brake lights
13DOME — 10A — Interior light, clock, radio
14RADIO — 10A — Diesel: No circuit
15ECU-B — 10A — Exhaust gas recirculation system
16TAIL — 20A — Tail / parking / plate / panel lights
17GLOW — 7.5A — Diesel: No circuit
18HAZ-HORN — 15A — Hazard lights, horn
19HEAD (LH) — 10A — Left headlight
20HEAD (RH) — 10A — Right headlight
21IGN / FUEL-HTR — 7.5A / 15A — Fuel injection / Fuel heater
22DOOR — 30A — Power door locks
23HEATER — 30A — Air conditioning system
24POWER — 30A — Power windows
25DIFF — 30A — Differential lock / 4WD system

Fuse number 4, 15A, is responsible for the operation of the cigarette lighter.

Type 2

From 2009

Fuse box 1

This fuse box is located on the left pillar under the dashboard on the passenger side.

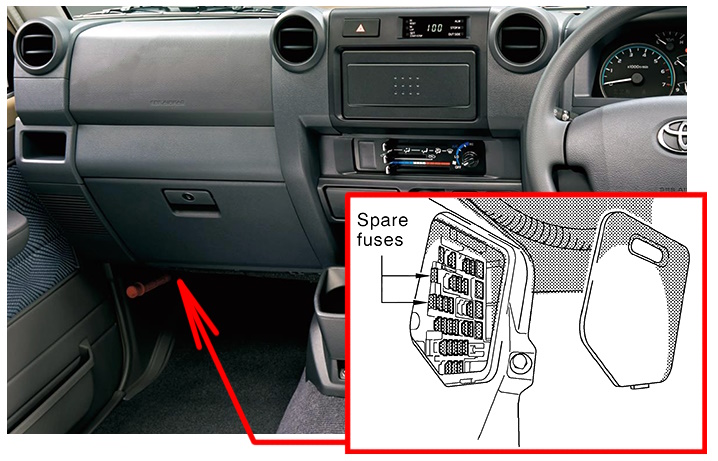

Location 2

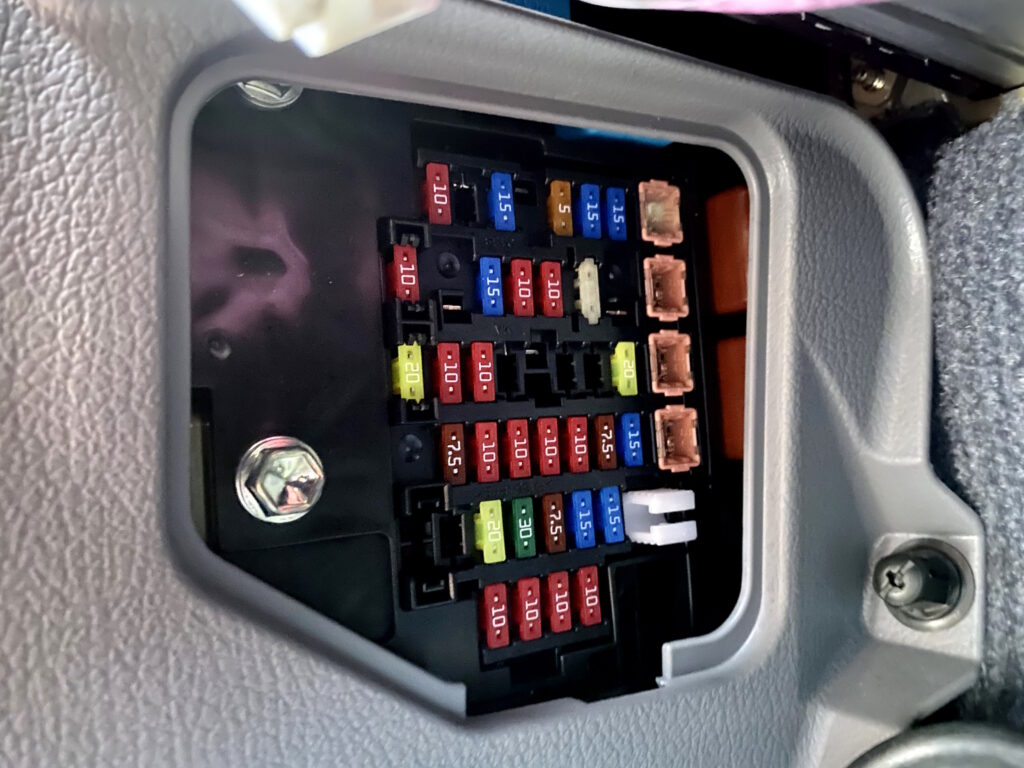

Fuse box photo

Check the current assignment of the elements with your diagrams on the back of the block cover.

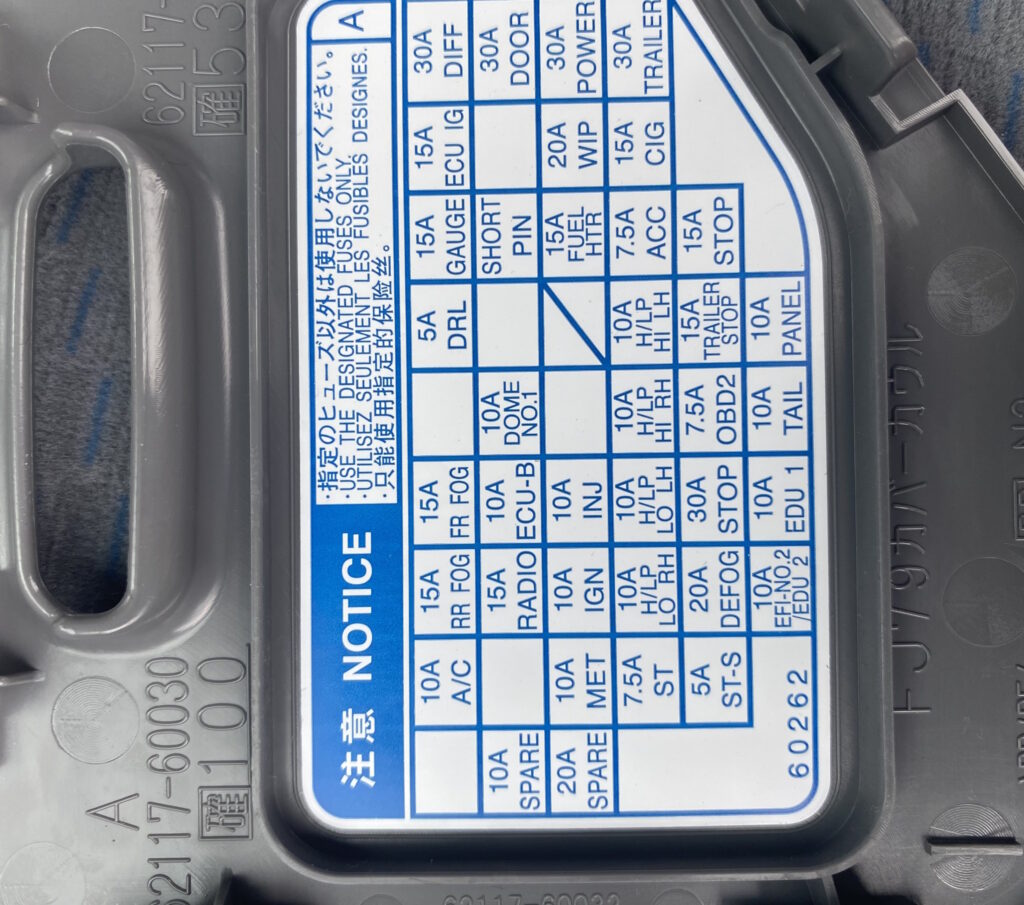

covery of fuse box

Diagram

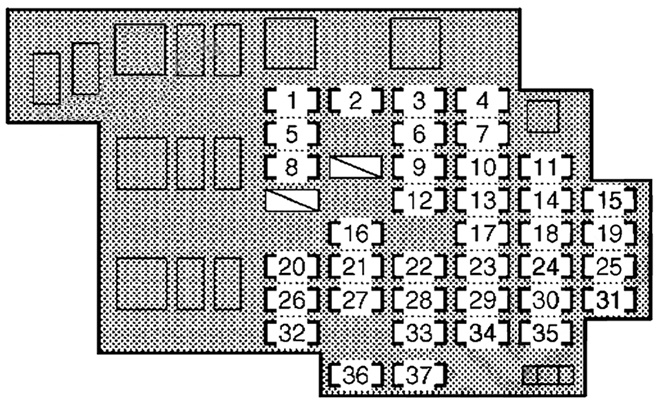

Diagram type 2

Designation

1DIFF — 30A — Differential lock system
2DOOR — 30A — Power door lock / remote control system
3POWER — 30A — Power windows
4TRAILER — 30A — Trailer tail / turn lights
5ECU IG — 15A — Fuel injection pump, charging, glow system, 4WD, wipers, antenna, ABS
6WIP — 20A — Windshield wipers and washer
7CIG — 15A — Cigarette lighter
8GAUGE — 15A — Back-up lights, A/C, defogger, clock, flashers
9FUEL HTR — 15A — Fuel heater
10ACC — 7.5A — Clock, audio system, power antenna
11STOP — 15A — Fuel injection system, brake lights
12DC/DC — 15A — DC/DC converter
13H/LP HI LH — 10A — No circuit
14TRAILER STOP — 15A — Trailer stop lights
15PANEL — 10A — Instrument panel, gauges, audio, A/C
16DOME №1 — 10A — Interior light, gauges
17H/LP HI RH — 10A — Right high beam headlight
18OBD2 — 7.5A — Diagnostic system
19TAIL — 10A — Parking / tail / plate lights
20FR FOG — 15A — Front fog lights
21ECU-B — 10A — Fuel injection system, clock, antenna
22INJ — 10A — Fuel injection system
23H/LP LO LH — 10A — Left low beam headlight
24STOP — 30A — STOP and TRAILER STOP circuits
25DOME №2 — 10A — Interior lights
26RR FOG — 15A — No circuit
27RADIO — 15A — Audio system
28IGN — 10A — Fuel injection system, SRS airbag
29H/LP LO RH — 10A — Right low beam headlight
30DEFOG — 20A — Rear window defogger
31EFI №2 — 10A — Fuel injection system
32A/C — 10A — Air conditioning system
33MET — 10A — Gauges and meters
34ST — 7.5A — Starting and glow system
35BLACK — 7.5A — No circuit
36SPARE — 10A — Spare fuse
37SPARE — 20A — Spare fuse

Fuse number 7, 15A, is responsible for the operation of the cigarette lighter.

Fuse box 2

The next fuse box is installed in newer models under the glove compartment.

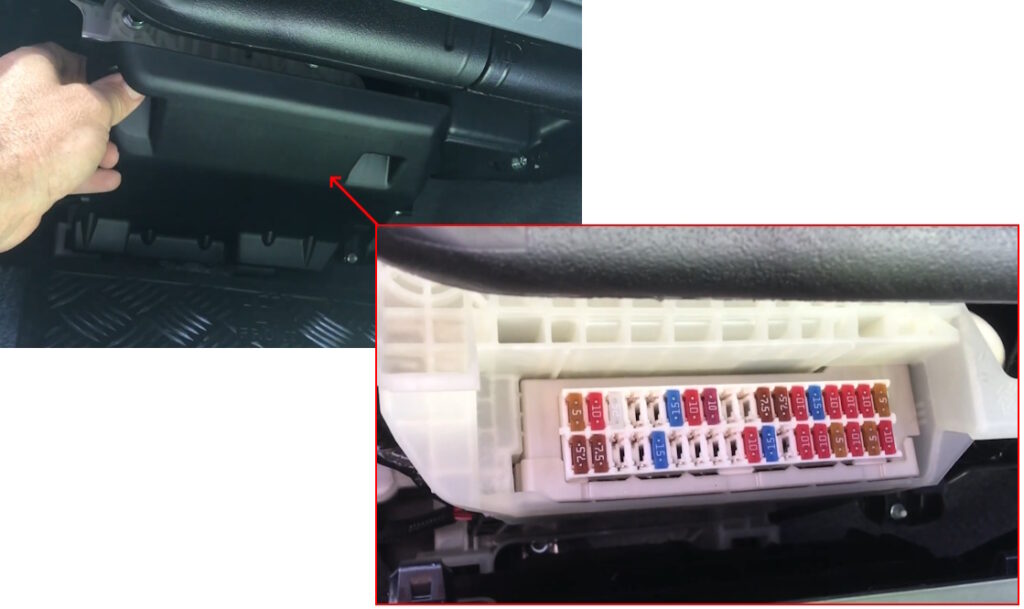

Location 3

The assignment of the fuses will be indicated on the cover of the unit.

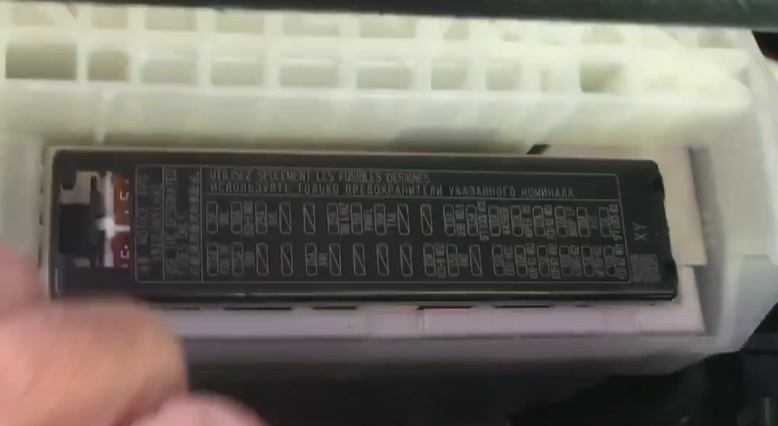

Diagram 2

The following fuses may be located here:

  • BCM
  • AUDIO
  • METER
  • ROOM LAMP
  • AIR BAG
  • WASHER
  • PWR SOCKET
  • BLOWER
  • IGN
  • ACC
  • TAIL

Engine compartment

Under the hood, the fuse boxes are located next to the battery.

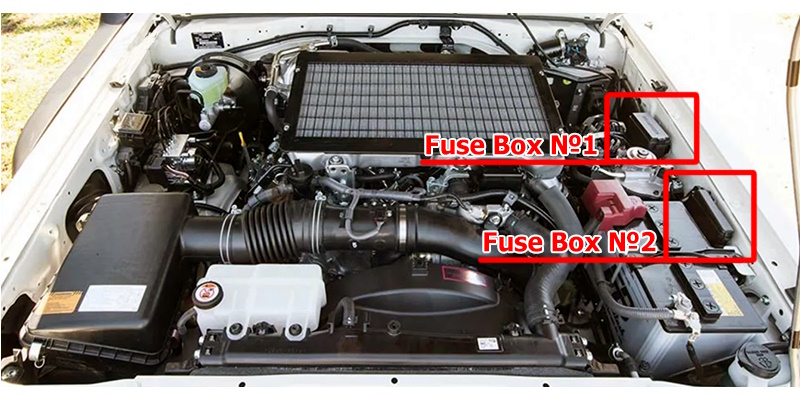

Location under the hood

Fuse box 1

Diagram

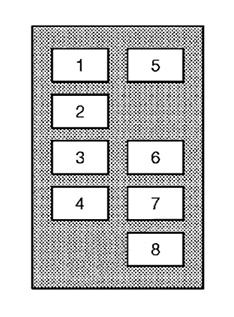

Diagram 3

Allocation

1HTR — 50A — Air conditioning system
2ALT — 140A — Main power supply for multiple fuse circuits
3GLOW1 — 80A — Engine glow system
4GLOW2 — 80A — Engine glow system
5AM1 №2 — 50A — ECU IG, GAUGE, WIP circuits, fog lights
6AM1 — 30A — Cigarette lighter, starting system, ST and ACC circuits
7AM1 №3 — 50A — Cigarette lighter, ACC circuits
8ALT MAIN — 50A — Stop lights, A/C, diagnostics, audio system

Fuse box 2

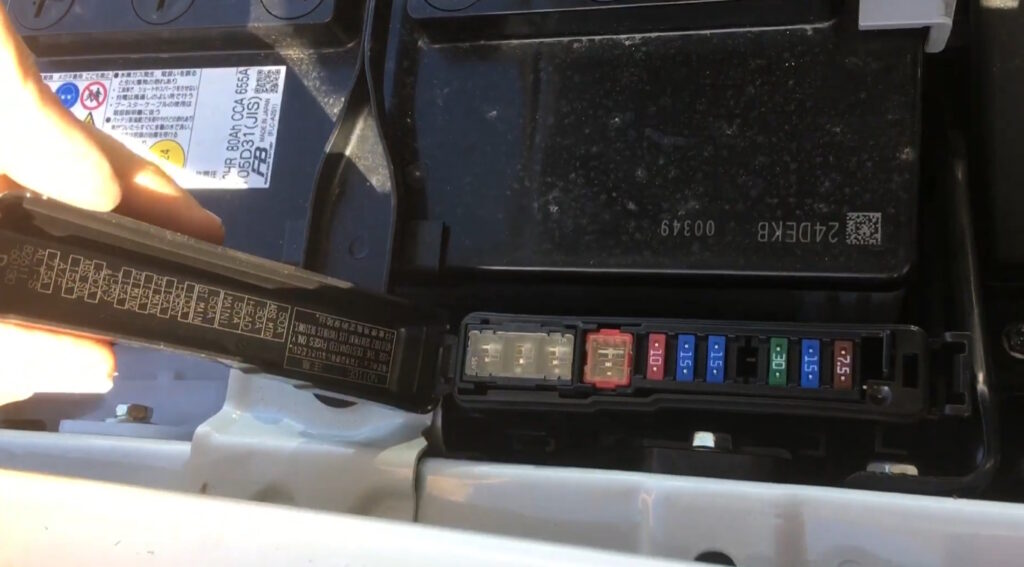

fuse box

Diagram

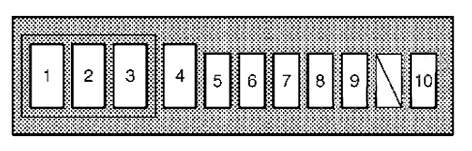

Diagram 4

Decoding

1MAIN2 / ABS MTR — 50A — Audio, ECU-B, DOME, DOOR circuits / ABS
2HEAD — 50A — Left/right low & high beam headlights
3MAIN1 — 50A — Tail lights, fog lights, PANEL circuits, trailer, audio
4AM2 — 50A — MET, IGN and INJ circuits
5HORN — 10A — Horns
6EFI MAIN — 15A — Electronically controlled fuel injection system
7EFI MAIN2 — 15A — Electronically controlled fuel injection system
8TURN&HAZ — 15A — Turn signals, hazard lights, trailer lights
9ABS SOL — 30A — ABS system
10ALT-S — 7.5A — Charging system
