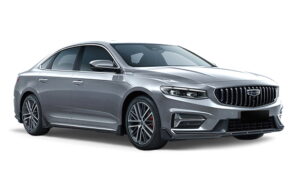

The first-generation Geely Preface was produced in 2021, 2022, 2023, 2024, 2025, 2026, and 2027. During this time, the model received an update. It is also known as the Geely Xingrui. In this article, you will find information describing the fuses and relays for the Geely Preface 1G, including block diagrams, their locations, and photo examples. We will highlight the cigarette lighter fuse.
The assignment of the fuses and relays in your car may differ from those shown and depends on the year of manufacture, the level of electrical equipment, and the region in which your vehicle is delivered.
Engine compartment
Under the hood, in the engine compartment, the fuse and relay box is located on the left side near the battery. To access the box, remove the protective cover.
Location
Diagram
Designation
| EF01 | 5A BRAKE LIGHT SWITCH |
| EF02 | 30A 7DCT1 TRANSMISSION |
| EF03 | 30A 7DCT1 TRANSMISSION |
| EF04 | 5A COIL RELAY |
| EF05 | 5A ENGINE CONTROL MODULE (ECM) |
| EF06 | 20A FUEL PUMP MODULE (PEM) |
| EF07 | 20A HORN |
| EF19 | 5A ENGINE CONTROL MODULE (ECM) AND 7DCT1 TRANSMISSION CONTROL MODULE*, POWERTRAIN CONTROL MODULE (PCM)* |
| EF20 | 5A ELECTRIC POWER STEERING (EPAS)*, VEHICLE DYNAMICS DEVICE CONTROL MODULE (VDDM)*, Gateway Module (BGM)*, Vehicle Computing Unit (VCU)* |
| EF21 | 5A Accelerator Pedal Sensor |
| EF22 | 10A Forward Looking Radar (FLR)* |
| EF23 | 20A Junction Block IGN Power |
| EF26 | 20A Left Headlamp |
| EF27 | 20A Right Headlamp |
| EF33 | 5A Relay Coil |
| EF34 | 15A Spark Plug and Coil |
| EF35 | 15A Oxygen Sensor 1 (Front Left), Rear Oxygen Sensor |
| EF36 | 20A Engine Control Module (ECM) |
| EF37 | 15A Valve and Sensor |
| EF40 | 25A Rear Lighting Control Module (RCM)* |
| EF41 | 30A Gateway Module (BGM) |
| EF43 | 30A Gateway Module (BGM) |
| EF46 | 30A Gateway Module (BGM) |
| EF47 | 30A Gateway Module (BGM) |
| EF48 | 60A Vehicle Dynamics Management (VDDM) Central Control Unit (VDDM) |
| EF49 | 40A Vehicle Dynamics Management (VDDM) Central Control Unit (VDDM) |
| EF50 | 40A Air Conditioning (HVAC) Main Control Unit (HVAC) |
| EF52 | 30A Wiper Motor (WWM) |
| EF53 | 40A Windshield Defogger (Left)* |
| EF54 | 30A Heater REAR WINDOW |
| EF56 | 30A 7DCT1 TRANSMISSION |
| EF57 | 30A STARTER (2.0TD) |
| EF58 | 30A 7DCT1 TRANSMISSION |
| EF61 | 40A WINDSHIELD DEHEATER (RIGHT)* |
| EF63 | 60A ELECTRONIC FANNING CONTROL MODULE (EFCM) |
Passenger compartment
In the car’s interior, the fuse box is located at the bottom of the instrument panel behind the protective cover, on the driver’s side.
Diagram
Assignment
| CF02 | 40A DRIVER POWER SEAT |
| CF03 | 30A ANTI-PINCH PROTECTION MODULE (RAPM) |
| CF04 | 30A AUDIO CONTROL MODULE (AUD)* |
| CF05 | 40A PASSENGER POWER SEAT |
| CF06 | 30A ANTI-PINCH PROTECTION MODULE (RAPM) |
| CF08 | 25A DISPLAY HEAD UNIT (DHU) |
| CF09 | 30A BGM (BGV) |
| CF10 | 5A ACTIVE SAFETY SYSTEM CENTRAL MODULE (ASDM)* |
| CF11 | 5A SIDE OBSTACLE DETECTION RADAR LEFT (SODL)*, SIDE OBSTACLE DETECTION RADAR RIGHT OBSTACLE DETECTION (SODR)* |
| CF12 | 5A RELAY COIL 3 |
| CF13 | 5A CENTER CONSOLE SWITCH ASSEMBLIES (CCSM), DRIVER DOOR SWITCH ASSEMBLIES (DDS) |
| CF16 | 5A POWER DRIVER SEAT* |
| CF17 | 5A EMERGENCY CALL SYSTEM ASSEMBLY (ERAM)* |
| CF19 | 10A DRIVER INFORMATION DISPLAY (DIS) |
| CF20 | 5A TELEMATICS AND COMMUNICATION SYSTEM ANTENNA ASSEMBLY (TCAM), RADIO FREQUENCY ANTENNA (RFA) |
| CF21 | 5A STEERING WHEEL SWITCH ASSEMBLIES (SWM) |
| CF22 | 5A CENTER CONSOLE DISPLAY (CSD) |
| CF23 | 5A SENSOR MODULE RAIN AND LIGHT SENSOR (RLSM), BLUETOOTH AND NFC COMMUNICATION MODULE (BNCM) |
| CF24 | 10A OBD II DIAGNOSTIC CONNECTOR |
| CF25 | 25A SUN ROOF CONTROL MODULE (SRM)* |
| CF26 | 5A FORWARD VIEW CAMERA (FLC)* |
| CF27 | 5A AMBIENT CABIN LIGHTS* |
| CF28 | 5A SWITCHES |
| CF29 | 5A CABIN LIGHTS |
| CF30 | 5A HEAD-UP DISPLAY (HUD)*, DRIVER IMPORTANT CAMERA* |
| CF31 | 15A WIRELESS MOBILE PHONE CHARGER (WPC)*, USB PORTS |
| CF32 | 10A REAR USB CHARGING PORTS CENTER CONSOLE |
| CF33 | 15A STEERING WHEEL SWITCH MODULE (SWM)* |
| CF35 | 20A PASSENGER COMPARTMENT POWER OUTLET |
| CF36 | 5A STEERING WHEEL SWITCH MODULE (SWM) |
| CF37 | 5A AIR FRAGRANCE UNIT (AFU)* |
| CF38 | 20A LEFT HEADLAMP |
| CF40 | 20A RIGHT HEADLAMP |
| CF46 | 30A BOX GATEWAY MODULE (BGM) |
| CF48 | 25A BOX GATEWAY MODULE (BGM) |
| CF49 | 20A REAR SEAT AIR BAG HEATER LEFT* |
| CF50 | 5A REAR SEAT AIR BAG HEATER LEFT* |
| CF52 | 5A SUPPORT RESTRAINT SYSTEM (SRS) |
| CF53 | 10A PAS/ADPU SYSTEM |
| CF54 | 5A EMERGENCY CALL SYSTEM (ERAM) UNIT* |
