The fourth-generation Nissan Micra was produced in 2010, 2011, 2012, 2013, 2014, 2015 and 2016 with the model code K13. During this time, the model received a facelift. In this post, you can find a description of the Nissan Micra 4G fuses and relays, along with block diagrams and their locations. We’ll highlight the cigarette lighter fuse.
The purpose of the elements of your boxes and their meaning may differ from the one presented.
Contents
Passenger compartment

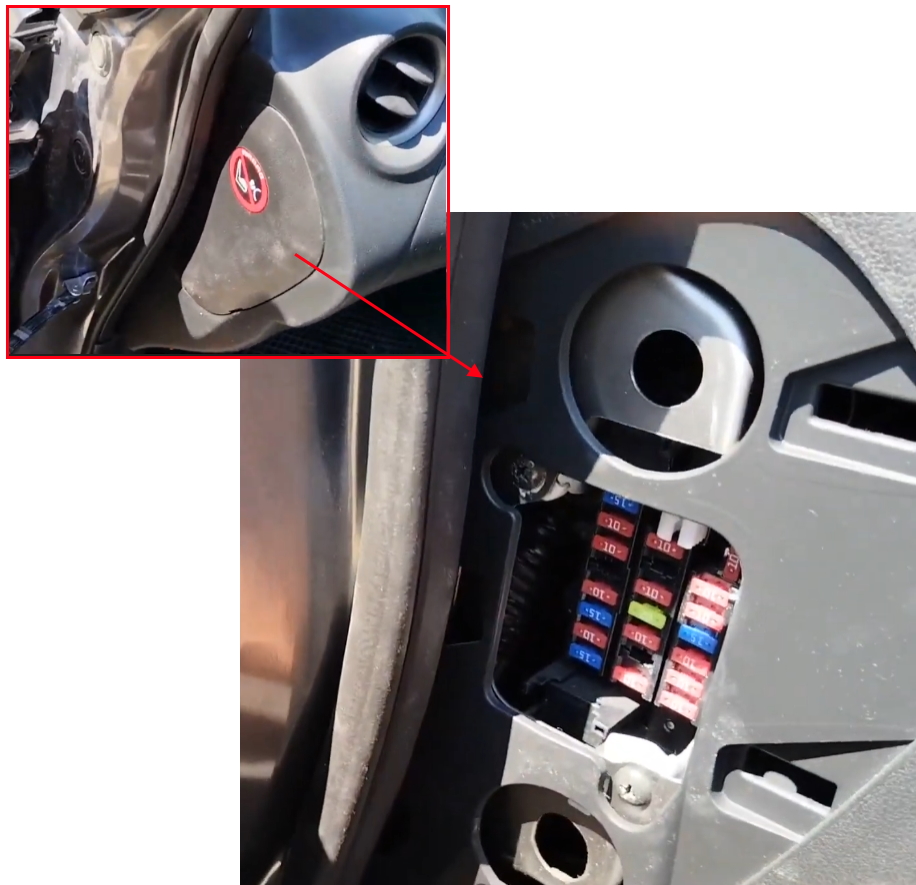

Located at the end of the dashboard, behind the side cover.

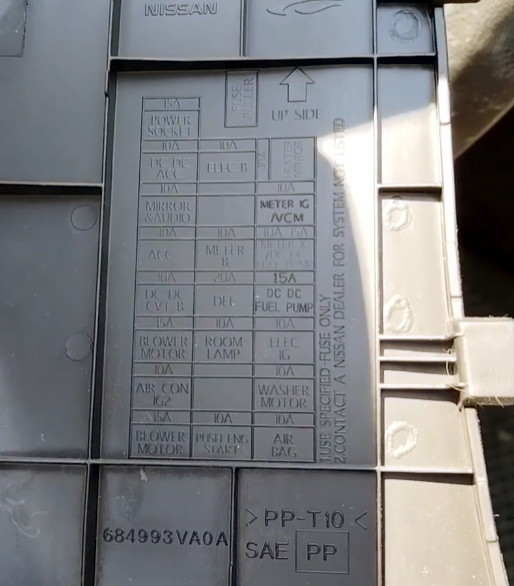

Check the assignment of the elements against your diagram on the back of the protective cover.
The photo
Diagram
Assignment
- 10A – Electrical equipment according to the diagram on the back of the cover
- 10A – Electrical equipment according to the diagram on the back of the cover
- 10A – Washers
- 10A – SRS, Airbags
- 10A – Electrical equipment according to the diagram on the back of the cover
- 20A
- 10A – Starting system, intel. key
- 20A – Heated rear window, BCM
- 10A – Electrical equipment according to the diagram on the back of the cover
- 15A – Cigarette lighter, front socket
- 10A – Mirrors, Audio display
- 10A – Audio system, Dashboard
- 15A – Air conditioning system
- 20A – Air conditioning system
- 15A – Air conditioning system
- R1 – relay of electrical equipment of the passenger compartment
- R2 – ignition system relay
- R3 – fan relay
The fuse number 15 at 15A is responsible for the cigarette lighter.
Engine compartment
Fuse and relay box

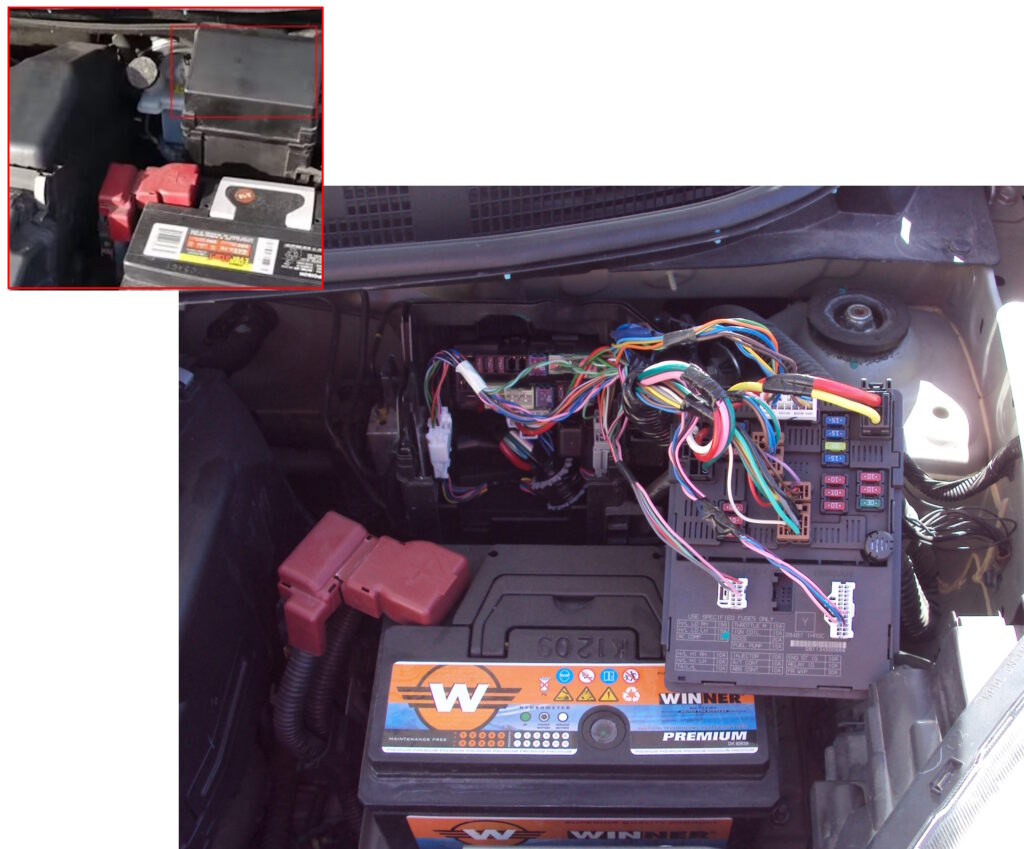

Location
The photo
Diagram
Designation
| 34 | 10A Headlights |
| 35 | 10A Headlights |
| 37 | 10A Lamps, dimensions, parking system |
| 38 | – |
| 39 | 30A Washer |
| 40 | 15A Low beam headlamps |
| 41 | 15A Low beam headlamps |
| 42 | 10A Air conditioner relay |
| 48 | 15A Fuel pump relay |
| 49 | 10A body and engine control module, intelligent key system, engine start function |
| 50 | 10A Brake control system |
| 51 | 10A Engine management system |
| 52 | 15A Throttle motor control relay |
| 53 | 20A Relay ECM, Engine management system, NVIS |
| 54 | 15A Engine management system |
| 55 | 10A Engine management system |
Fuse box
Located next to the mounting block.
Photo example
Block cover diagram
Description
| TAIL LAMP | Taillights (sidelights, brake lights, license plate light) |
| ALT S HORN | Alternator/Horn |
| AT CONT / PTC / HP FUEL | Automatic Transmission Control, PTC Heater, High-Pressure Fuel Pump |
| ESCL | Electronic Steering Column Lock |
| PTC / VINJ1 / GRILL SHUTTER | PTC Heater, VINJ1 Injector, Radiator Shutter |
| RAD FAN / ABS | Radiator Fan and ABS |
| EPS | Electric Power Steering |
| 4WD / HLC / DCDC B1 | All-Wheel Drive, Differential Lock, DC-DC Converter 1 |
| DCDC B2 / ABS | DC-DC Converter 2, ABS |
| ABS SOL / VDC SOL | ABS and VDC Solenoids |
| TAIL LAMP / HEATED SEAT | Taillights/Heated Seats |
| P/WDW BCM | Body Control Module (BCM) and Power Windows |
| IGN SW | Ignition Circuit (Ignition Switch) |
| ABS / VDC / RAD FAN | ABS, VDC Stability Control, Radiator Fan |
| AUDIO / VINJ2 | Audio System/VINJ2 Injector |
| STOP LAMP | Brake Lights |
| FR FOG | Front Fog Lights |
Diagram
Assignment
| 23 | |
| 24 | 10A charging system, horn, smart key system, car security system |
| 25 | 10A CVT control system |
| 26 | |
| 27 | |
| 28 | |
| 29 | 15A Audio / 20A Navigation, audio display |
| 30 | 10A body control module, brake control system, engine control system, intelligent key system |
| 31 | 15A Front fog lamp |
| F | 40A / 50A Cooling fan relay |
| G | 40A body control module, daytime running light system, front fog lamp, front wiper and washer system |
| H | 40A Starting system, ignition relay |
| I | 40A |
| J | 60A Electronically controlled power steering |
| K | |
| L | 30A Brake control system |
| M | 30A Brake control system |
Power fuse box
Located on the positive terminal of the battery.
- A – 120A – Generator
- B – 60A – Ignition, relay, fuses
- C – 80A – Accessories, relays, fuses
- D – 100A – Fuses
- E – 80A – Lamp relay, fuses
