Kia Magentis Optima (2001 – 2010) fuse and relay

The Kia Magentis, a mid-range car, was introduced in 2000. Delivered worldwide under various names Kia Optima, Kio K5 and Kia Lotze. The first generation was produced in 2001, 2002, 2003, 2004 and 2005. The second generation was assembled in 2006, 2007, 2008, 2009, 2010. Both generations have been restyled. In this article you will find a designation of the Kia Magentis fuses and relays with boxes diagrams and their locations. Note the cigarette lighter fuse.

Kia mandzhentis

The design and arrangement of boxes and the purpose of elements in them may differ and depends on the year of manufacture and the country of delivery. Check the description with your diagrams on the back of the protective cover.

Passenger compartment

Magentis 1

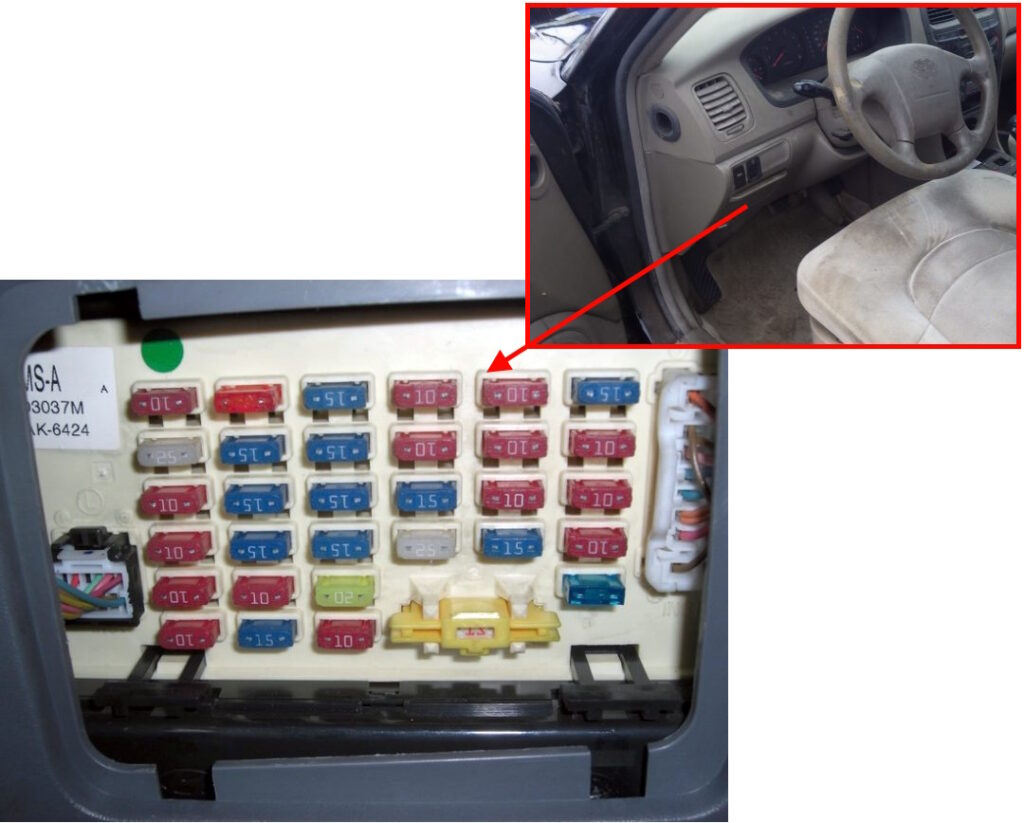

Located under the dashboard, on the driver’s side behind the protective cover.

magentis 1 fuse box in the passenger compartment

Legend

Block diagram in the cabin option 1

Designation

RR NTO IND10A Heated rear window, heated mirrors
HAZARD10A Hazard warning lights, direction indicators
RRFOG15A Rear fog lights
A / CON10A Air Conditioner
ETACS10A ETACS, door lock remote control system
DR LOCK15A Door lock actuator
P/SEAT25A Power Seat
T/LID OPEN15A Trunk lock actuator
STOP LP15A Stop lights
HL / P10A Headlights
AJBAG IND10A Airbag
T / SIG10A Direction indicators
A/COM SW10A Air conditioning wiring
ACC SOCKET15A Socket for additional equipment
S/HTR15A Heated seats
A/BAG15A Airbag
B/UP10A Reversing lights
CLUSTER10A Combi lamp
START10A Start switch
SP115A Reserve
SP215A Reserve
SP315A Reserve
SP415A Reserve
D/CLOCK10A Digital Clock
TAIL(LH)10A side lights, license plate lights, rear lights
AUDIO10A Audio system
WIPER20A wiper
ROOM LP10A Interior lights, front door opening lights
TAIL(RH)10A side lights, license plate lights, rear lights
C/LIGHTER 15A Cigarette lighter
EPS 10A EPS unit power supply

The fuse designated as C / LIGHTER 15A is responsible for the operation of the cigarette lighter.

On the back of the unit there may be some relays: a door lock relay, an excitation coil resistor, a rear size relay, a power window motor relay, a rear window heater relay and side mirror heaters.

Magentis 2

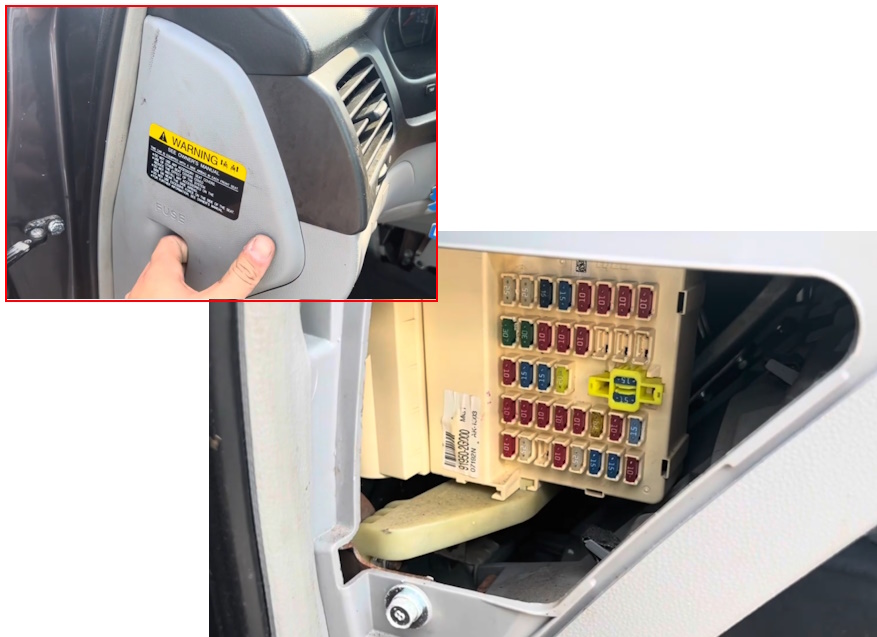

Located at the left side of the panel.

Location of the unit in the cabin 2

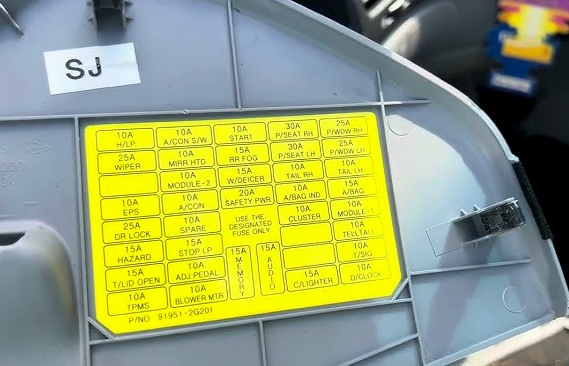

Photo for an example of execution

photo example of a block in the salon magentis

Diagram

Block diagram in the cabin option 2

Appointment

H/LP10A Headlights
A/CON SW10A Air conditioner
START10A Engine start
P/SEAT RH30A Power Seat (Right)
P/WDW RH25A Glass lifter (right)
WIPER25A Front wiper
MIRR HTD10A Heated outside rearview mirror
RR FOG15A Rear fog lamp
P/SEAT LH30A Power Seat (Left)
P / WDW LH25A Power window (left)
SPARE10A Spare fuse
MODULE-210A Cluster (fan relay, sunroof, wiper relay, panel, rain sensor, rheostat, heating relay)
W/DEICER15A De-icer
TAIL RH10A Rear light (right)
TAIL LH10A Rear light (left)
EPS10A Power steering
A / CON10A Air conditioner
SAFETY PWR20A Security window
A/BAG IND10A Airbag warning
A/BAG15A Airbag
DR LOCK25A Central locking
SPARE10A Spare fuse
CLUSTER10A Cluster
MODULE-110A Buzzer BWS, ESP switch
HAZARD15A Hazard warning light
STOP LP15A stop light
SPARE15A Spare fuse
TELL TALE15A Clock
T/LID OPEN15A Trunk lid opener
ADJ PEDAL10A Adjust Pedal Relay
SPARE15A Spare fuse
T / SIG10A Turn signal light
TPMS10А TPMS
BLOWER MTR10A Air conditioner ventilator
MEMORY15A Cluster (ETACS, A / C, Clock, Room Light)
AUDIO15A Audio
C/LIGHTER15A Cigarette lighter
D/CLOCK10A Clock

The cigarette lighter fuse is circled in the figure (C / LIGHTER). The fuse in the box under the hood is responsible for the additional socket.

Engine compartment

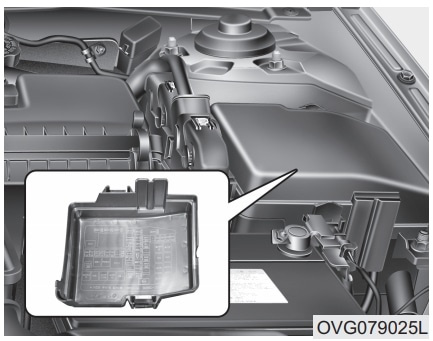

It is located on the left side of the engine compartment, next to the battery.

Magentis 1

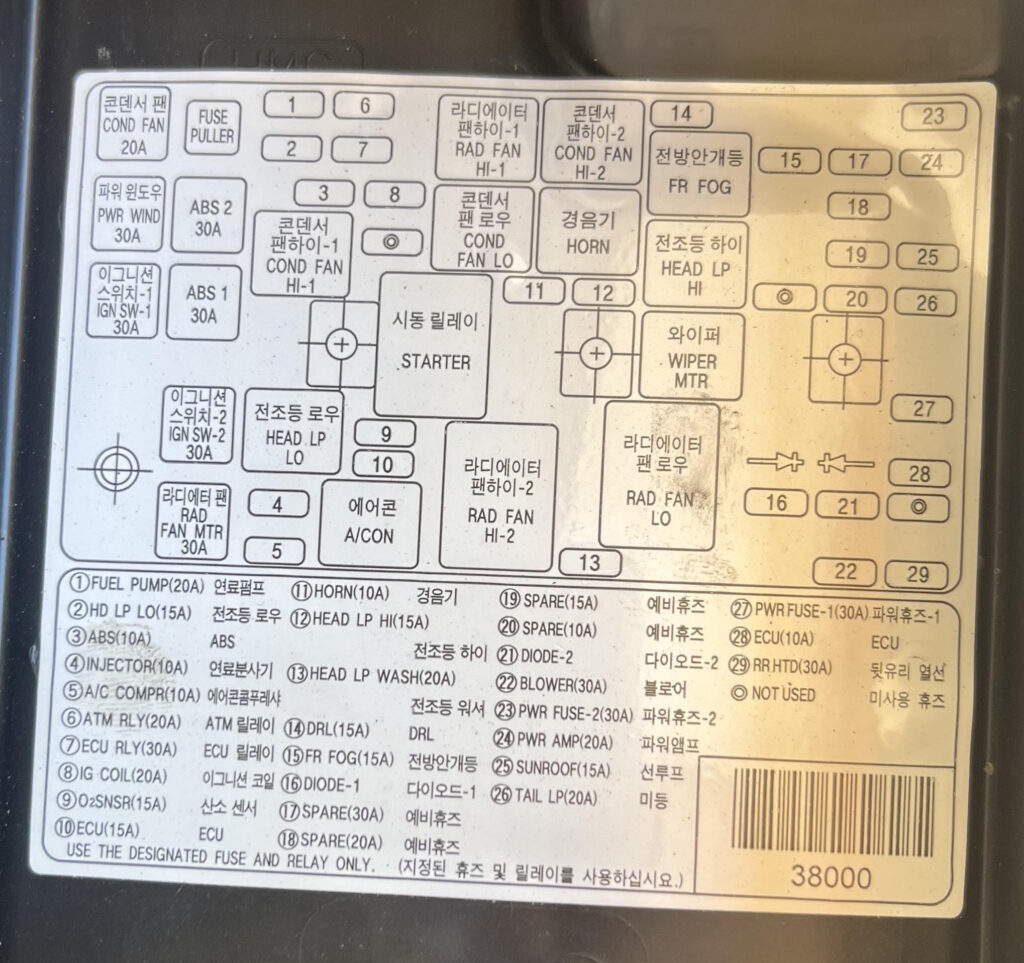

The photo

Photo of the block under the hood majentis 1

Legend

Block diagram under the hood option 1

Protected components

COMD FAN20A Air conditioner fan
PWRWIND40A Power windows
ABS 230A ABS
IGN SW-130A Ignition switch
ABS 130A ABS
IGN SW-230A Ignition switch
RAD FAN MTR30A Radiator fan motor
1 FUEL PUMP20A fuel pump
2 HD LP LO15A Low beam headlights
3 ABS10A ABS system
4 INJECTOR10A Injector
5 A / С COM PR10A A / C compressor
6 ATM RLY20A ATM Relay
7 ECURLY30A Relay, electronic engine control unit
8 IG COIL20A Ignition coil, ignition malfunction sensor
9 OZSNSR15A Oxygen sensor
10 ECU15A ECM, fuel pump relay, PCV solenoid valve, speed governor servo xx, dpkv
11 HORN10A Signal
12 HEAD LP HI15A High beam headlamps
13 HEAD LP WASH20A Headlight washer motor
14 DRL15A Anti-theft system
15 FRFOG15A Front fog lamps
16 HEAD LP LO RH15A Xenon headlights
17 SPARE30 A Spare fuse
18 SPARE20A Spare fuse
19 SPARE15A Spare fuse
20 SPARE10A Spare fuse
21 BLOWER30A heater fan
22 PWR FUSE-230A Power fuse 2
23 FWRAMP20A Audio amplifier
24 SUNROOF15A Hatch, diagnostic socket
25 VAIL LP20A Tailgate Relay
26 PWR FUSE-130A Power fuse 1, passenger compartment fuse box (fuses 2,3,7,8,9)
27 ECU10A Electronic engine control unit
28 RRHTD30A relay for heated rear window and side mirrors.

Relay

HORN RELAYSignal relay
HDLP_LOW RELAYHeadlight relay
RAD FAN_HI RELAYRadiator fan relay
RAD FAN_LOW RELAYRadiator fan relay
F/PUMP RELAYFuel pump relay
WIPER RELAYWiper relay
START RELAYStarter relay
ATM CONT RELAYAutomatic transmission control relay
A/CON RELAYAir conditioner relay

Magentis 2

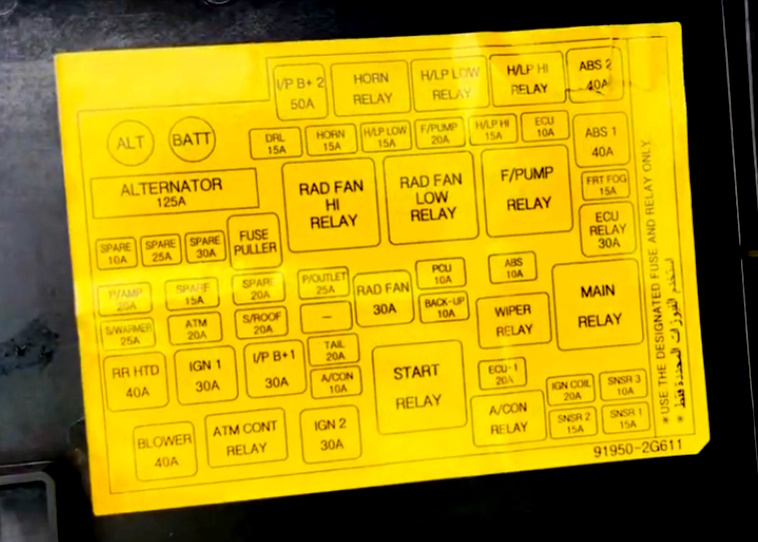

Photo of the block under the hood of Magentis 2

Diagram

Block diagram under the hood option 2

Appointment

I/P B+ 250A On panel B +
ABS 240А ABS
DRL15A Daytime running lights
HORN15A Signal
H/LP LOW15A Headlights
F/PUMP20A Fuel pump
H/LP HI15A Headlights
ECU10A Engine control unit
ABS 140А ABS
EVERYTHING125 / 150A Generator
SPARE10A Spare fuse
SPARE15A Spare fuse
SPARE20A Spare fuse
FRTFOG15A Front fog lamp
ECU RELAY30A Engine control unit
POWER AMP20A Sound amplifier
SPARE15A Spare fuse
SPARE20A Spare fuse
P/OUTLET25A Socket
RAD FAN30 / 40A Radiator fan
PCU10A Sensors of the power train control system, TCU
SECTION10А ABS
S/WARMER25A Heated seats
ATM20A Automatic transmission control
S/ROOF20A Sunroof
SPARE20A Spare fuse
BACK UP10A Reversing light
RR HTD40A Heated rear window
IGN 130A Ignition
B+30A B panel B +
TAIL20A Rear light
A / CON10A Air conditioner
ECU-120A Engine control unit
IGN COIL20A Ignition coil
SNSR 310A Sensors
BLOWER40A Fan
IGN 230A Ignition
SNSR 215A Sensors
HORN RELAYSignal relay
HDLP_LOW RELAYHeadlight relay
RAD FAN_HI RELAYRadiator fan relay
RAD FAN_LOW RELAYRadiator fan relay
F/PUMP RELAYFuel pump relay
WIPER RELAYWiper relay
MAIN RELAYMain relay
START RELAYStarter relay
ATM CONT RELAYAutomatic transmission control relay
A/CON RELAYAir conditioner relay

For the additional cigarette lighter socket in the armrest, there is a 25A P / OUTLET fuse .

Additional box

Installed in the front part under the soot space in Magentis models with diesel engines.

Additional block

Description

GLOW PLUG FUSIBLE LINK80A Plug pre-starting heating, Air heater
PTC HEATER #1 FUSIBLE LINK50A PTC Heater Relay 1
PTC HEATER #2 FUSIBLE LINK50A PTC Heater Relay 2
PTC HEATER #3 FUSIBLE LINK50A PTC Heater Relay 3
FUEL FILTER HEATER FUSIBLE LINK40A Fuel filter heater
GLOW PLUG RELAYPreheating plug relay
PTC HEATER RELAY #1PTC heater relay 1
PTC HEATER RELAY #2PTC heater relay 2
PTC HEATER RELAY #3PTC heater relay 3
FUEL FILTER HEATER RELAYFuel filter heater relay



That’s all. If you have any questions or want to supplement the material, write in the comments.
