Check the actual purpose of fuses and relays with your diagrams, there may be a difference in the presented material and your box.
Passenger compartment fuse box

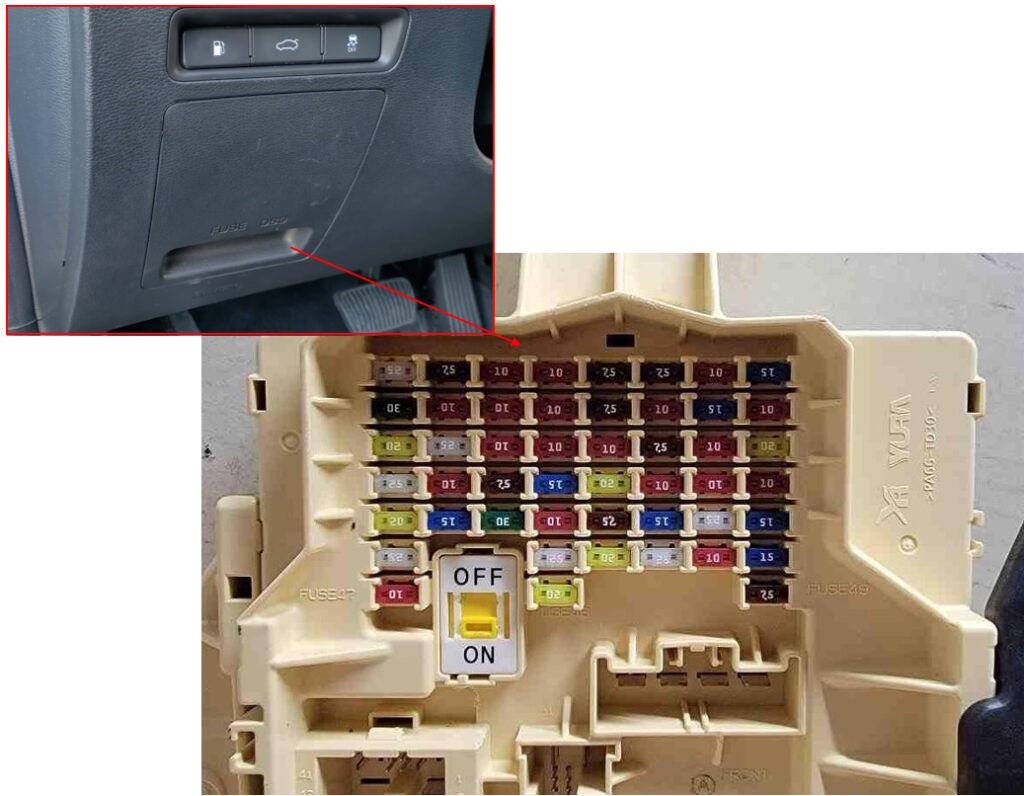

This box is located at the bottom of the dashboard, behind a protective cover.

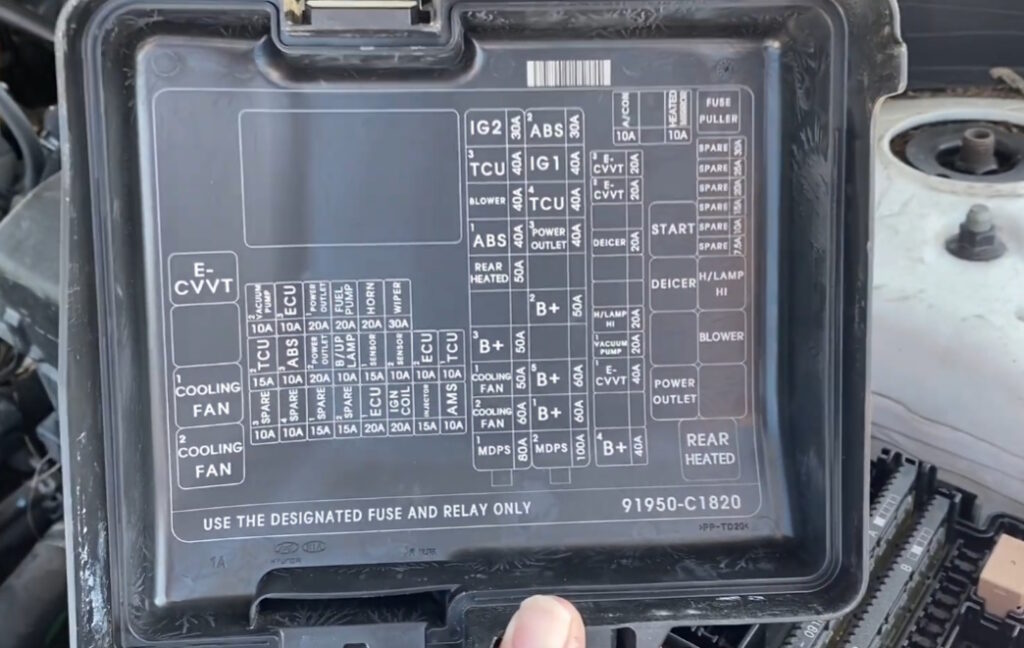

Legend from the box cover
Diagram
Protected components
| SAFETY WINDOW LH | 25A Module Electric Glass Lift Driver Safety |
| P/SEAT PASS | 30A Manual switch in passenger seat |
| P / WDW LH | 20A Main switch of electric glass lifter, rear left module of electric glass lifter |
| P/WDW RH | 25A Electric lift glass main switch, rear right electric lift glass module, passenger door module, electric passenger lift glass switch |
| DR LOCK | 20A Door lock relay, door unlock relay |
| S/HEATER FRT | 25A Seat module with front seat ventilation, Front seat heating module |
| BRAKE SWITCH | 10A Brake Light Switch, Immobilizer Module, Smart Key Control Module |
| 8 MODULE | 7.5A BCM Smart Key Control Module |
| SAFETY POWER WINDOW RH | 25A Passenger safety glass electric glass module |
| SMART KEY | 15A Smart key control module |
| TRUNK | 10A Trunk lid relay, fuel filler door and trunk lid switch |
| 7 MODULE | 10A Digital Clock Driver / Passenger Door Module |
| INTERIOR LAMP | 10A Ignition key III. & Door warning switch, Washbasin front lamp switch, L / R, Overhead console lamp, Interior lamp, L / R rear personal lamp, Luggage compartment lamp, Driver / passenger external smart key handle |
| 2 MEMORY | 7.5A Not used |
| P/SEAT DRV | 30A Driver seat manual control switch, driver IMS module |
| CLUSTER | 10A Instrument panel |
| 4 MODULE | 10A Immobilizer module, smart key control module |
| MULTI MEDIA | 15A Head audio / video and navigation device |
| 1 MEMORY | 10A Driver / Passenger Door Module, Driver IMS Module, Air Condition Control Module, Auto Light and Photo Sensor, Electrochromic Mirror, Instrument Cluster, Tire Pressure Monitoring Module, Digital Clock, Wireless Charger, Head Audio / Video and Navigation Device |
| S/HEATER RR | 25A Rear seat heating module |
| 2 SUN ROOF | 20A Panoramic sunroof motor |
| 9 MODULE | 7.5A Seat module with front seat ventilation, Front seat heating module, Rear seat heating module |
| MDPS | 7.5A MDPS unit (column type / rack type) |
| 3 MODULE | 10A BCM, sport mode switch, brake light switch |
| 1 MODULE | 7.5A Key solenoid valve, driver / passenger door module |
| 1 SUN ROOF | 20A [Panoramic] Sunroof motor with panoramic [No panorama] Sunroof motor |
| A / CON | 7.5A A / C Control Module, E / R Junction Box (Fan Relay) |
| 2 MODULE | 10A A / V & Navigator Head Unit, Digital Clock, USB Charger, BCM, AMP, Power Mirror Switch, Wireless Charger, Smart Key Control Module, Ceiling Console Lamp, E / R Junction Box (Power Outlet Relay) |
| A/BAG IND | 7.5A Instrument panel |
| 6 MODULE | 10A Multipurpose Test Connector, A / C Control Module, A / V & Navigation Head Unit, Ventilated Front Seat Module, Front Seat Heater Module, Rear Seat Heating Module, Driver IMS Module, Left / Right Headlight (DBL), ATT Shift Lever IND. |
| AMP | 25A Amplifier AMP (JBL / MOBIS) |
| HTD STRG | 15A Heated steering wheel, BCM |
| 5 MODULE | 10A Front Console Switch, Tire Pressure Monitor Module, Lane Keeping Assist Module, Intelligent Cruise Control Unit, Fuel Cap / Trunk Lid Switch, AEB Module, Headlight Left / Right (DBL), Rear Left / Right Assist Sensor when parking, rear parking aid LH / RH sensor (center), blind spot detection radar left / right |
| IG1 | 25A PCB block (fuse – VACUUM PUMP2 / TCU2 / ECU3 / ABS3) |
| WASHER | 15A Multi function switch (wiper lower friction switch and washer switch) |
| POWER OUTLET | 20A front socket |
| A/BAG | 15A SRS control module, presence sensor |
| START | 7.5A [Without Smart Key and IMMO.] ICM Relay Box (Burglar Alarm Relay) [With Smart Key / IMMO.] Transmission Range Switch, PCM (G4KJ / G4KH) |
| 10 MODULE | 10А BCM |
For the front cigarette lighter, there is a 20A POWER OUTLET fuse. Elements in the boxes under the hood are responsible for the rest of the sockets.
Engine compartment fuse box

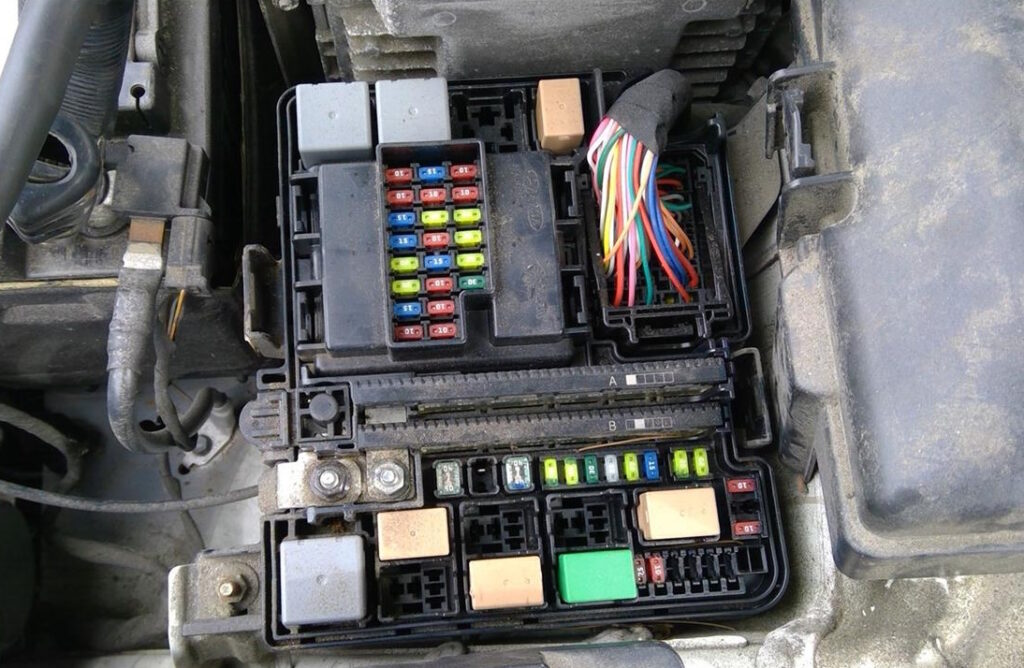

Located on the left side of the engine compartment, next to the battery.
Diagram
Designation
| IG2 | 30A [Without smart key] (start relay), ignition switch, [with smart key] (start relay), PCB assembly (IG2 relay) |
| 3 TCU | 40А [G4FJ – DCT] TCM |
| BLOWER | 40A Fan relay |
| 1 Para | 40A ESC Module |
| REAR HEATED | 50A Rear heating relay |
| 1 B+ | 50A Intelligent junction box (IPS2 (4CH), IPS3 (4CH)) |
| 1 COOLING FAN | 50A [G4KH / G4FJ] (cooling fan relay), [G4KJ] (cooling fan relay) |
| 2 COOLING FAN | 60A [G4KH / G4FJ] (cooling fan relay) |
| 1 MDPS | 80A MDPS Block (Column Type) |
| 2 ABS | 30A ESC module, multipurpose control connector |
| IG1 | 40A [Without smart key] Ignition switch, [With smart key] PCB assembly (IG1 / ACC relay) |
| 4 TCU | 40А [G4FJ – DCT] TCM |
| 3 POWER OUTLET | 40A (Socket relay) |
| 2 B+ | 50A Intelligent junction box (IPS1 (4CH), IPS4 (4CH), IPS5 (4CH), IPS6 (2CH), IPS7 (1CH), Fuse – AMP) |
| 5 B+ | 60A PCB block (engine control relay, fuse -TUC1, ECU1, HORN, AMS, WIPER) |
| 1 B+ | 60A Intelligent connection box (electric lift glass relay, fuse – LEFT SAFETY GLASS, P / SEAT PASS, RIGHT SAFETY WINDOW, P / SEAT DRV, MODULE1, P / WDW LH, P / WDW RH, TRUNK, S / HEATER RR, SUNROOF2 , LUX1) |
| 2 MDPS | 100A MDPS unit (rack type) |
| 3 E-CVVT | 20А [G4KJ / G4KH] PCM |
| 2 E-CVVT | 20А [G4KJ / G4KH] PCM |
| FUEL PUMP | 20A (Fuel pump relay) |
| H/LAMP HI | 20A headlamp high beam relay |
| 1 VACUUM PUMP | 20A [G4KH / G4FJ] Vacuum pump |
| 1 E-CVVT | 40A [G4KJ / G4KH] (E-CVVT relay) |
| 4 B+ | 40A Intelligent connection block (fuse for device with automatic leakage current cut-off – INTERNAL LAMP, MULTIMEDIA, MEMORY1, Fuse – DOOR LOCK, S / FRONT HEATER, BRAKE SWITCH, SMART KEY, MODULE10) |
| A / CON | 10A Air conditioning control module |
| HEATED MIRROR | 10A ECM (G4FJ), A / C control module, power rearview mirror in driver’s seat / front seat |
| 2 VACUUM PUMP | 10A [G4KH / G4FJ] Vacuum pump, vacuum switch |
| 3 ECU | 10А PCM / ECM |
| 1 POWER OUTLET | 20A Front cigarette lighter and socket # 2 |
| FUEL PUMP | 20A Fuel pump relay |
| HORN | 20A Horn Relay, ICM Relay Box (Burglar Alarm Horn Relay) |
| WIPER | 30A Front wiper relay (low), front wiper relay (high) |
| 2 TCU | 15A Transmission Range Switch, TCM (G4FJ-DCT) |
| 3 ABS | 10A ESC module |
| 2 POWER OUTLET | 20A Rear socket |
| B/UP LAMP | 10A Transmission range switch, PCM (G4KJ / G4KH-A / T), TCM (G4FJ-DCT), electrochromic mirror, rear combination lamp (IN), left / right |
| 1 SENSOR | 15A Oxygen sensor (up / down) |
| 2 SENSOR | 15A Purge Control Solenoid Valve, Canister Close Valve, RCV Control Solenoid Valve, Fuel Pump Relay, E / R Junction Box (Cooling Fan High Relay, Fuel Pump Relay), [G4KJ / G4KH] Regulated Intake Solenoid Valve, Oil Control Valve ( outlet), [G4FJ] Oil control valve # 1 / # 2 (inlet / outlet) |
| 1 ECU | 10А PCM / ECM |
| 1 TCU | 10А PCM (G4KJ / G4KH-A / T), TCM (G4FJ-DCT) |
| 1 ECU | 10А PCM / ECM |
| IGN COIL | 20A Ignition coil # 1 / # 2 / # 3 / # 4 |
| INJECTOR | 15A Engine management |
| AMS | 10A Battery Gauge |
If the cigarette lighter does not work, check the items marked as POWER OUTLET.
And if you have any questions, write in the comments.
