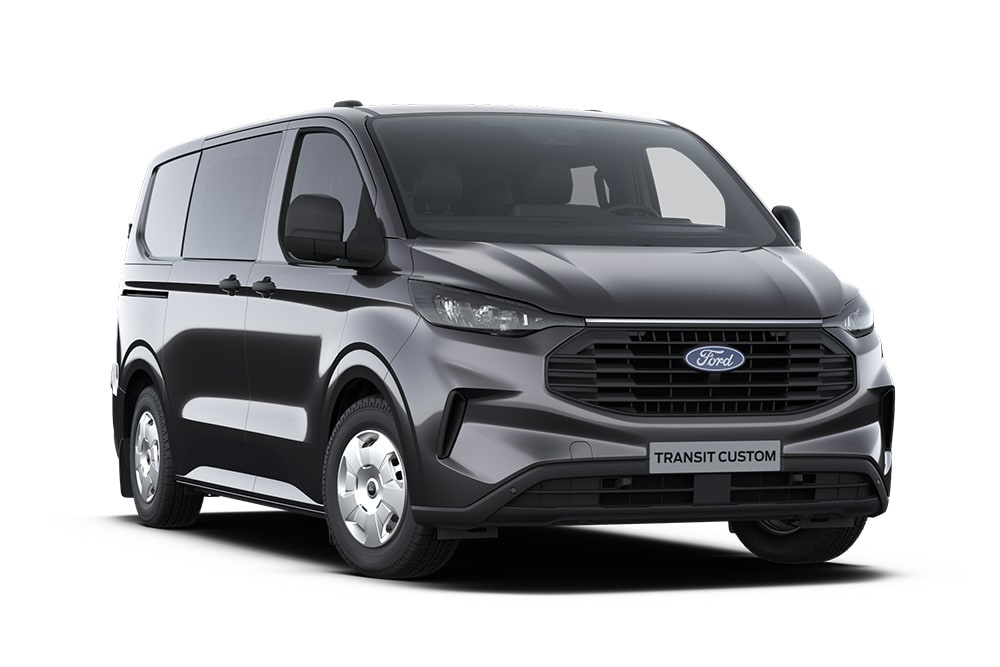

New Ford Transit was produced in 2024, 2025, 2026, 2027, 2028 and 2028. Ford Transit Custom / Tourneo Custom provides the mid-size light-duty Ford Transit series. Also includes the E-Transit as a battery-electric panel van variant announced in 2021. In this post you will find a designation of the Ford Transit 2024 – 2029 fuse and relay boxes, boxes diagrams and their location. Also we highlight the fuse responsible for the cigarette lighter.
The purpose of the fuses and relays may differ from that shown and depends on the year of manufacture and the level of electrical equipment of your vehicle.
Passenger compartment
In the passenger compartment, the fuse box is located under the instrument panel, on the left side. Ffor the RHD van – the interior fuse box is behind the glove box.
To access the fuses, you need to rotate the fuse box. Disconnect four connectors: three regular ones on the fuse box and the large connector on top (otherwise, the fuse box won’t come out). Next, release only the two clips on the sides (the one on the left is almost invisible; pry it out with a flathead screwdriver). Remove the fuse box from the back plate; it should now come off easily.
Photo for example
Diagram
Assignment
| 1 | 5A — Inclination sensor, Intrusion sensor, Handsfree, Rear climate control module |
| 2 | 5A — Climate control electronic control unit |
| 3 | 7.5A — Integrated rear view mirror display and camera |
| 4 | 5A — Headlamp assembly switch |
| 5 | — |
| 6 | 40A — Body control module 1 |
| 7 | — |
| 8 | 40A — Body control module 2 |
| 9 | — |
| 10 | 20A — Advanced driver assistance system module |
| 11 | 40A — Trailer tow control module |
| 12 | 30A — Right-hand power sliding door 2 |
| 13 | 30A — Left-hand power sliding door 2 |
| 14 | 40A — Body control module 3 |
| 15 | 15A — Smart fuse box, Upfitter connector |
| 16 | 40A — Body control module 4 |
| 17 | — |
| 18 | 7.5A — Wireless charger control module, Power mirror switch |
| 19 | 7.5A — Brake on/off switch |
| 20 | 7.5A — Instrument cluster, Steering column control module |
| 21 | 10A — Upfitter switched ground |
| 22 | 15A — Electric steering column lock |
| 23 | — |
| 24 | 40A — Driver power window (RHD), Right door control module |
| 25 | 40A — Trailer tow battery charge |
| 26 | 10A — Smart fuse box, Upfitter connector |
| 27 | 10A — Upfitter interface control module |
| 28 | 15A — Amplifier 1 |
| 29 | 30A — Right-hand power sliding door |
| 30 | 10A — Wireless buckle monitoring |
| 31 | 15A — Amplifier 2 |
| 32 | 10A — Enhanced central gateway electronic control unit |
| 33 | 5A — Fuel-fired heater remote control |
| 34 | — |
| 35 | 5A — Alcohol interlock |
| 36 | 30A — Passenger seat control module |
| 37 | 20A — Radio |
| 38 | 5A — Instrument cluster display |
| 39 | 15A — Voice control module, Phone |
| 40 | 5A — Headlamp leveling control |
| 41 | — |
| 42 | 30A — Left-hand power sliding door |
| 43 | 15A — Right-hand heated front seat |
| 44 | 10A — Power window switch |
| 45 | 15A — Right-hand power sliding door latch |
| 46 | 10A — Navigation display, Integrated control panel |
| 47 | 15A — Left-hand heated front seat |
| 48 | — |
| 49 | 20A — Retractable towbar module |
| 50 | — |
| 51 | 30A — Driver seat control module |
| 52 | 15A — Left-hand power sliding door latch |
| 53 | 10A — On-board diagnostic port connector |
| 54 | 30A — Front passenger power window |
| 55 | 40A — Driver power window (LHD), Left door control module |
| 56 | 20A — Fuel-fired heater module |
| 57 | 10A — Telematics control unit |
| 58 | 5A — Mirror display |
| 59 | — |
| 60 | — |
| 61 | 20A — Left cargo latch release, Left bottom release |
| 62 | 20A — Right cargo latch release, Right bottom release |
Engine compartment
Under the hood in the engine compartment, the fuse box is located on the left side, next to the headlight. To access it, you need to remove the protective cover.
Diagram
Description
| 1 | 15A — Rear washer motor |
| 2 | 15A — Left rear heated seat |
| 3 | 40A — Left front window defrost |
| 4 | 40A — Auxiliary blower |
| 5 | — |
| 6 | 10A — Inverter system controller (BEV/PHEV) |
| 7 | 15A — Power folding mirrors |
| 8 | 40A — Blower motor |
| 9 | 5A — Rain sensor |
| 10 | 15A — Right rear heated seat |
| 11 | 7.5A — Tachograph |
| 12 | 5A — USB smart charger 3 |
| 13 | 10A — Positive temperature coefficient heater (BEV/PHEV) |
| 14 | 10A — Traction battery control module (BEV/PHEV) |
| 15 | 40A — PTC heater bank 3 |
| 16 | 30A — Upfitter 1 electronic control unit |
| 17 | 7.5A — Tachograph |
| 18 | — |
| 19 | 5A — USB smart charger 1 |
| 20 | 10A — Coolant valve (BEV) |
| 21 | 20A — Rear wiper |
| 22 | 10A — Power steering module |
| 23 | 20A — Right heated backlight |
| 24 | 60A — ABS valve / Electric brake booster valve |
| 25 | 20A — Power point 1, Cigar lighter |
| 26 | 5A — USB smart charger 2 |
| 27 | 40A — Right front window defrost |
| 28 | 5A — Interior power distribution box run/start relay coil |
| 29 | 10A — Heated mirror |
| 30 | 5A — All-wheel drive control module (Diesel) |
| 31 | 25A — Front wiper motor |
| 32 | 15–20A — Transaxle transmission oil pump (Diesel / PHEV / BEV) |
| 33 | 30A — Left heated backlight |
| 34 | 60A — ABS control module / Electric brake booster pump |
| 35 | 5A — USB smart charger 6 |
| 36 | 5A — USB smart charger 5 |
| 37 | 5A — USB smart charger 4 |
| 38 | 10A — Anti-theft horn / Battery backup alarm sounder |
| 39 | 40A — PTC heater bank 2 |
| 40 | 30A — Upfitter 4 electronic control unit |
| 41 | 10A — Headlamp leveling motors |
| 42 | 10A — Generator / Battery charger control module |
| 43 | 5A — Fuel door motor (PHEV) |
| 44 | 20A — Power point 2 rear outlet / DC-DC converter (PHEV) |
| 45 | 5A — — |
| 46 | 50A — Electric water pump (PHEV) |
| 47 | 10A — ABS control module |
| 48 | 15A — Heated steering wheel / Steering control module |
| 49 | — |
| 50 | 40A — Fuel filter heater (Diesel) |
| 51 | 40A — All-wheel drive electronic control unit |
| 52 | 10A — Transmission / Inverter controller |
| 53 | — |
| 54 | 60A — DC/AC 400W inverter |
| 55 | 20A — Traffic horn |
| 56 | 30A — Fuel pump / Fuel pump control module |
| 57 | 40A — PTC heater bank 1 |
| 58 | — |
| 59 | — |
| 60 | — |
| 61 | 15A — Glow dosing module / Low voltage service disconnect / Battery energy control module |
| 62 | 10A — Powertrain control module |
| 63 | 5A — Glow dosing module |
| 64 | 25A — Transaxle oil pump |
| 65 | 15A — Fuel injectors (PHEV) |
| 66 | 30A — Upfitter 2 electronic control unit |
| 67 | — |
| 68 | 15A — Glow dosing module / Cooling pump / AVAS / Charge status indicator |
| 69 | 5A — Charge status indicator |
| 70 | 20A — Powertrain control module / Power supply voltage 1 |
| 71 | 30A — Starter motor (Diesel) |
| 72 | 15A — Reductant tank heater / HV battery cooling pump |
| 73 | 5A — Keep-alive power |
| 74 | 15–20A — Power supply voltage 2 |
| 75 | 15A — Power supply voltage 5 |
| 76 | — |
| 77 | — |
| 78 | — |
| 79 | — |
| 80 | — |
| 81 | 30A — Upfitter 3 electronic control unit / Lift gate |
| 82 | — |
| 83 | 15–20A — Power supply voltage 4 |
| 84 | 15A — Power supply voltage 3 |
| 85 | — |
| 86 | — |
Fuse number 25 for 20A is responsible for the operation of the cigarette lighter.
