The fourth-generation Dodge Ram Truck Pickup, produced in 2012, 2013, 2014, 2015, 2016, 2017, 2018 and 2019 with model code DS DJ D2. In our post you can find a description of fuses and relays RAM 1500 2500 3500 4G with fuse box diagrams, their locations and photo examples of performance. We also highlight the fuse responsible for the cigarette lighter.
The purpose of some elements in the diagrams may differ from the one presented and depends on the year of manufacture, configuration and country of delivery. In case of difficulty, contact your nearest dealer.
Fuse Box Location

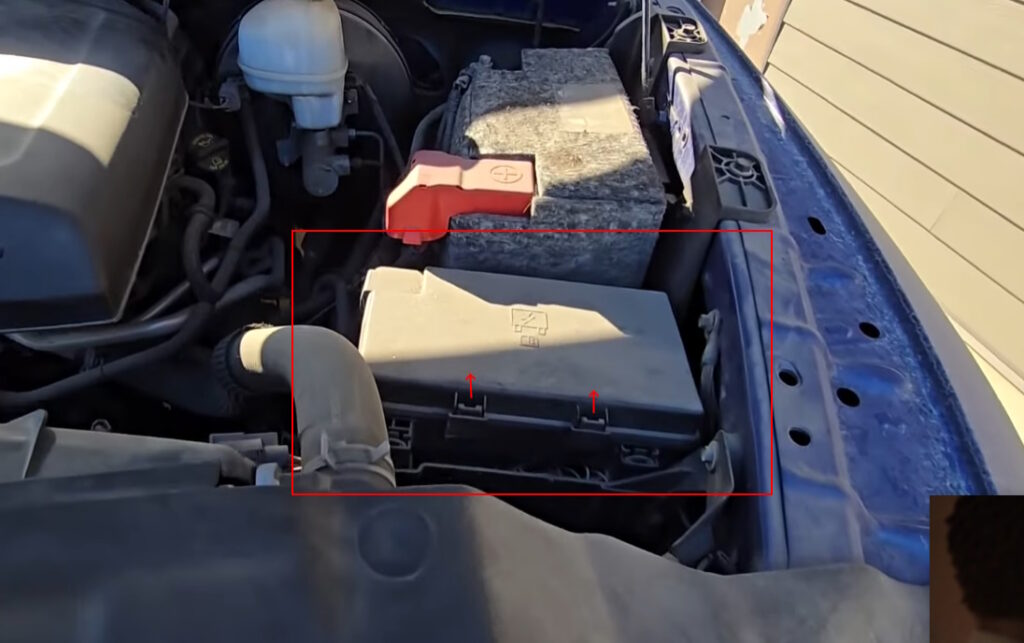

Fuse and Relay box is located in the engine compartment near the battery.

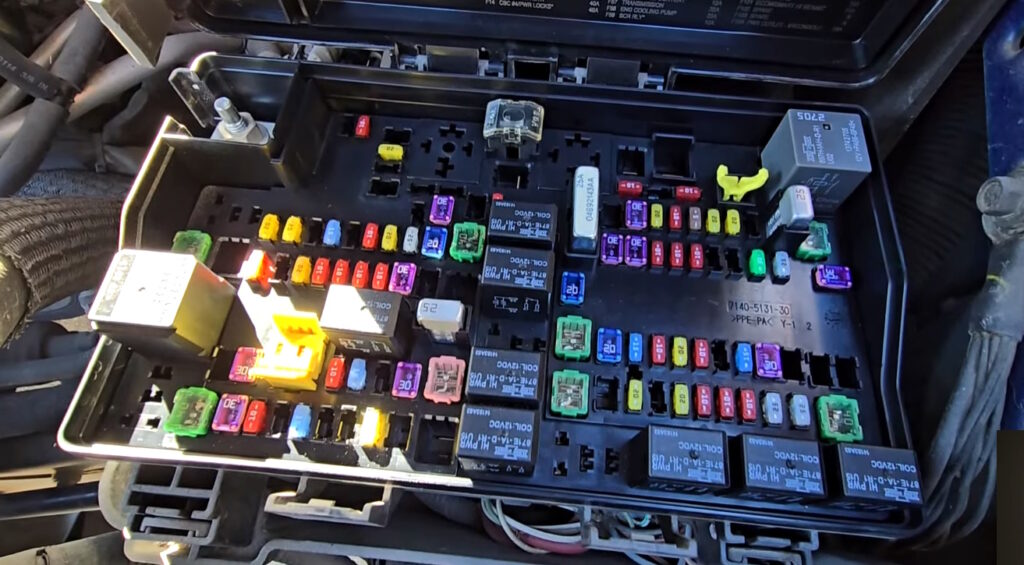

Photo for example

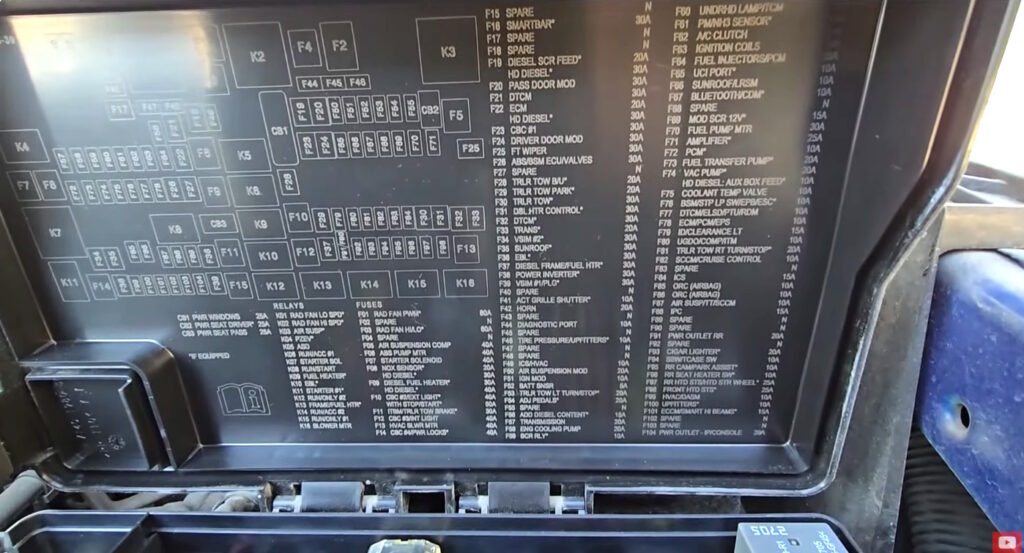

Check the purpose of the elements with your diagram on the back of the block cover.
Diagram
Assignment
| F01 | 80A — Rad Fan Control Module |
| F03 | 60A — Radiator Fan |
| F05 | 40A — Compressor for Air Suspension |
| F06 | 40A — ABS / ESP Pump |
| F07 | 40A — Starter Solenoid |
| F08 | 20A — Diesel Emissions |
| F09 | 40A — Diesel Fuel Heater |
| F10 | 40A / 50A — Body Controller / Exterior Lighting #2 |
| F11 | 30A — Trailer Brake Module |
| F12 | 40A — Body Controller #3 / Power Locks |
| F13 | 40A — Blower Motor |
| F14 | 40A — Body Controller #4 / Interior Lighting |
| F16 | 30A — Smart Bar |
| F19 | 20A / 30A — SCR System |
| F20 | 30A — Passenger Door Module |
| F21 | 30A — Drive Train Control Module |
| F22 | 20A / 30A — Engine Control Module |
| F23 | 30A — Body Controller #1 / Interior Lighting |
| F24 | 30A — Driver Door Module |
| F25 | 30A — Front Wiper |
| F26 | 30A — ABS / ESP Module |
| F28 | 20A — Trailer Backup Lights |
| F29 | 20A — Trailer Parking Lights |
| F30 | 30A — Trailer Tow Receptacle |
| F31 | 30A — Urea Heater Control |
| F32 | Spare |
| F33 | 20A — Special Services Vehicle |
| F34 | 30A — Vehicle System Interface Module #2 |
| F35 | 30A — Sunroof |
| F36 | 30A — Rear Defroster |
| F37 | 30A — Diesel Fuel Heater #2 |
| F38 | 30A — Power Inverter 115V |
| F39 | 20A — Power Outlet |
| F41 | 10A — Active Grill Shutter |
| F42 | 20A — Horn |
| F44 | 10A — Diagnostic Port |
| F46 | 10A — Upfitter |
| F49 | 10A — Instrument Cluster |
| F50 | 20A — Air Suspension Module |
| F51 | 10A — Ignition Node / Keyless |
| F52 | 5A — Battery Sensor |
| F53 | 20A — Trailer Left Turn/Stop |
| F54 | 20A — Adjustable Pedals |
| F56 | 15A — Diesel Systems |
| F57 | 20A — Transmission |
| F58 | 20A — Spare |
| F59 | 10A — SCR Relay |
| F60 | 15A — Underhood Lamp |
| F61 | 10A — PM Sensor |
| F62 | 10A — AC Clutch |
| F63 | 20A — Ignition Coils / Urea Heater |
| F64 | 25A — Fuel Injectors / Powertrain |
| F65 | Spare |
| F66 | 10A — Sunroof / Windows / Rain Sensor |
| F67 | 10A — Multimedia / Bluetooth |
| F69 | 15A — SCR 12V |
| F70 | 30A — Fuel Pump |
| F71 | 25A — Amplifier |
| F72 | 10A — PCM |
| F73 | 20A — Fuel Transfer Pump |
| F74 | 20A — Brake Vacuum Pump |
| F75 | 10A — Coolant Valve Actuator |
| F76 | 10A — ABS / ESP |
| F77 | 10A — Drivetrain Control |
| F78 | 10A — ECM / EPS |
| F79 | 15A — Clearance Lights |
| F80 | 10A — Garage Door Opener / Compass |
| F81 | 20A — Trailer Right Turn/Stop |
| F82 | 10A — Steering Column / Cruise |
| F84 | 15A — Switch Bank / Cluster |
| F85 | 10A — Airbag |
| F86 | 10A — Airbag |
| F87 | 10A — Air Suspension / Trailer / Steering |
| F88 | 15A — Instrument Cluster |
| F90/F91 | 20A — Rear Power Outlet |
| F93 | 20A — Cigar Lighter |
| F94 | 10A — Shifter / Transfer Case |
| F95 | 10A — Rear Camera / Park Assist |
| F96 | 10A — Rear Seat Heater Switch |
| F97 | 25A — Heated Seats & Steering Wheel |
| F98 | 25A — Front Heated Seats |
| F99 | 10A — Climate Control |
| F100 | 10A — Upfitters |
| F101 | 15A — Mirror / Auto High Beam |
| F104 | 20A — Power Outlets |
