Buick Encore GX was produced in 2019, 2020, 2021, 2022, 2023, 2024. After this the module received an update. In this publication you can find a description of Buick Encore GX fuses and relays with fuse box diagrams, their locations and photo examples of execution. Let’s highlight the cigarette lighter fuse.
The purpose of fuses and relays in boxes may differ from that shown and depends on the year of manufacture and the country of delivery. Check the assignment with the description on the back of the protective cover, and in case of difficulty, contact your nearest dealer.
Engine compartment

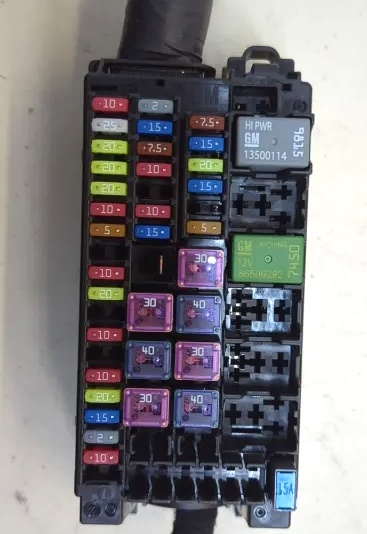

Fuse and relay box is located next to the battery under the protective cover.
Diagram
Assignment
Micro Fuses | |
F02 | CLSTR |
F03 | N/A |
F06 | OSRVM DEFOG |
F07 | L/GATE RELSE |
F08 | AHL AFL MTR1 |
F09 | VENT SEAT |
F10 | N/A |
F11 | AHL AFL MTR2 |
F12 | N/A |
F14 | ISRVM REAR VIEW CAMERA |
F15 | DEFC MDL RUN/CRNK |
F16 | HDLP LVL |
F17 | N/A-DSL |
F18 | FTZM |
F19 | N/A |
F20 | N/A |
F22 | TRLR ST/TRN LT – TRLR |
F24 | ESCL |
F25 | ECM TCM RUN/CRNK |
F26 | FRT/REAR WSW PUMP |
F27 | IGN COIL-GAS ECM PT3-DSL |
F28 | AERO SH |
F29 | AHL AFL MDL |
F31 | ECM PT2 |
F32 | ENG COMP2 |
F33 | RVC |
F34 | FRT FOG LP |
F35 | ENG COMP1 |
F36 | ECM PT1 |
F38 | TRLR PRK LAMP – TRLR |
F40 | AUX WATER PUMP |
F41 | REAR WPR |
F42 | HORN |
F44 | REAR WPR PRK |
F45 | A/C CLTCH |
F46 | N/A |
F47 | ECM BATT-GAS ECM BATT-DSL |
F49 | HDLP HI LH |
F50 | N/A |
F51 | HDLP HI RH |
F52 | NOX SOOT SNSR – DSL TRLR ST/TRN RT – TRLR |
F53 | N/A |
F54 | PEPS |
F56 | CNSTR VENT SOL-GAS/DEFC MDL-DSL |
F57 | DEFC MDL-DSL |
F58 | TCM BATT |
SF01-SF06 | Spare Fuses |
ET Fuses | |
F48 | GLOW PLUG |
J-Case Fuses | |
F01 | N/A |
F05 | N/A |
F13 | REAR WNDW DEFOG |
F21 | E-BOOST PWR1 |
F23 | STRTR PINION |
F59 | N/A |
F62 | FUEL HTR DSL |
F63 | N/A |
M-case Fuses | |
F04 | FRT WPR |
F30 | STRTR SOL |
F37 | AUX OIL PUMP |
F39 | N/A |
F43 | PWR WNDW RT |
F55 | PWR WNDW LT |
F60 | DEF HTR |
F61 | N/A |
Relays | |
K01 | N/A |
K02 | N/A |
K03 | RUN/CRNK |
K04 | REAR DEFOG |
K05 | STRTR SOL |
K06 | STRTR PINION |
K07 | A/C CNTRL |
K08 | PT RLY |
K09 | FUEL HTR DSL |
K10 | N/A |
K11 | N/A |
Passenger compartment
Fuse box is located under the dash on the driver’s side. To get to the fuses, you need to remove the box for small items.
Diagram
Designation
F01 | LUMBAR |
F02 | SUNROOF |
F03 | VBAT_3 |
F04 | VBAT_7 |
F05 | VBAT_6 |
F06 | AUTO HVAC |
F07 | CGM |
F08 | ST_WHL_HTR |
F09 | DISPLAY |
F10 | RADIO |
F11 | ONSTAR (ERA) |
F12 | PARKASSIST |
F13 | MAN. HVAC |
F14 | WL CHARGER |
F15 | VBAT_2 |
F16 | VBATJ |
F17 | SWC BKLT |
F18 | N/A |
F19 | N/A |
F20 | CLOCK SPRING |
F21 | OCC SEN |
F22 | DLC |
F23 | SDM |
F24 | IGNSW/ESCL |
F25 | PWR L-GATE MDL |
F26 | SEC FUSE-2 |
F27 | PWR SEAT CO-DR |
F28 | VBAT_8 |
F29 | DC-DC AT |
F30 | PWR L-GATE MDL |
F31 | OSRVM |
F32 | FRT HS PWR-1 |
F33 | VBAT_4 |
F34 | FRT HS PWR-2 |
F35 | AMPLIFIER |
F36 | ONSTAR (TCP) |
F37 | PWR SEAT DR |
F38 | DC-DC_400W |
F39 | SEC FUSE-1 |
F40 | HVAC_BLOWER |
Circuit Breaker | |
CB1 | N/A |
CB2 | APO |
Relays | |
K01 | i-RAP_ACC |
K02 | RUN |
K03 | LOGISTICS |
K04 | N/A |
K05 | N/A |
K06 | N/A |
Luggage compartment
Another box with fuses and relays is located in the luggage compartment.
Diagram
Allocation
F01 | N/A |
F02 | RDCM ELEC |
F03 | N/A |
F04 | N/A |
F05 | DC/AC INVERTER |
F06 | N/A |
F07 | RDCM |
F08 | RR SEAT HEAT PWR1 |
F09 | N/A |
F10 | RR SEAT HEAT PWR2 |
F11 | N/A |
F12 | N/A |
F13 | N/A |
F14 | N/A |
F15 | N/A |
F16 | N/A |
F17 | N/A |
F18 | N/A |
F19 | N/A |
F20 | N/A |
F21 | N/A |
Circuit Breakers | |
CB1 | N/A |
Relays | |
K01 | N/A |
K02 | N/A |
K03 | N/A |
K04 | N/A |
K05 | N/A |
