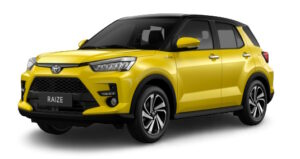

The Toyota Raize was produced in 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026, and 2027. This post describes the Toyota Raize’s fuses and relays, including fuse box diagrams, their locations, and photo examples. We’ll highlight the fuse for the cigarette lighter.
The purpose of fuses and relays may differ from that described and depends on the year of manufacture and the level of electrical equipment in your vehicle.
Passenger compartment
For right-hand drive vehicles, remove the glove box in the leg-room of the passenger’s seat.
- Push the left side inward and disengage the upper claw
- Push the right side inward and disengage the upper claw
- Disengage the lower claws.
For left-hand drive vehicles, dis-engage the claws at 8 locations and remove the lower cover in the legroom of the driver’s seat.
Photo for example
Check the purpose of the elements with your diagram on the back of the block cover.
Allocation
| FOG RH | 10A – Front fog light (right) |
| FOG LH | 10A – Front fog light (left) |
| A/C | 7.5A – Air conditioning system |
| HORN | 10A – Horn |
| WASHER | 15A – Windshield washer |
| ACC | 10A – Accessory circuit (radio, etc.) |
| PWR SEAT | 20A – Power seat system |
| DEF NO.2 | 10A – Rear window defogger (secondary) |
| ECU-IG1 | 7.5A – Engine control unit (ignition 1) |
| METER-IG1 | 10A – Instrument cluster / meter power |
| STOP | 10A – Stop lamps (brake lights) |
| OUTLET | 15A – Power outlet / cigarette lighter |
| DOME | 10A – Interior light circuit |
| TAIL | 10A – Tail and parking lights |
| AM2 | 7.5A – Ignition power supply (AM2 relay) |
| OBD | 7.5A – Diagnostic connector / OBD port |
| WIPER | 25A – Front windshield wiper |
| P/W | 20A – Power windows |
| AM1 | 5A – Ignition main circuit |
| STRG LOCK | 20A – Steering lock system |
| SPARE | 5A / 10A / 20A / 15A – Reserved spare fuse slots |
Engine compartment
The fuse box is located near the battery.
Diagram from the covery
Diagram
Description
| HTR | 40A – Heater (blower motor) |
| RDI | 30A – Radiator fan motor (primary) |
| ST | 30A – Starter motor |
| ABS | 40A – Anti-lock brake system |
| EPS | 50A – Electric power steering |
| ABS NO.2 | 30A – ABS secondary circuit |
| BKUP LP | 15A – Back-up / tail lamps |
| FUEL PMP | 10A – Fuel pump |
| H-LP RH | 10A – Headlamp right |
| H-LP LH | 10A – Headlamp left |
| HAZ | 10A – Hazard / turn signal |
| EFI | 15A – Electronic fuel injection |
| ETCS | 10A – Electronic throttle control |
| ENG | 10A – Engine control circuit |
| ECU-IG2 | 5A – ECU ignition feed |
| TAIL | 10A – Tail lights |
| RR FOG | 5A – Rear fog light |
| ACC RR | 15A – Rear accessory power |
| IG MAIN | 20A – Ignition main |
| SPARE | 5A / 10A / 15A – Spare slots |
| ST Relay | Starter relay |
| RDI Relay | Radiator fan relay |
| RDI NO.2 Relay | Secondary radiator fan relay |
