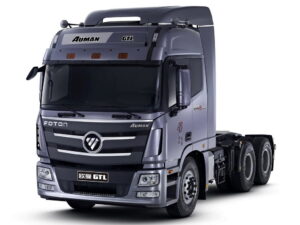

Foton Auman is a family of truck, dump trucks and flatbed trucks produced from 2003 to the present day in various modifications and versions. In this article we will present a description of fuses and relays Foton Auman with schematics of blocks, their locations and photo examples of performance. Let’s highlight the cigarette lighter fuse.
Fuse and relay assignment may differ from the one shown and depends on the year of manufacture and the level of electrical equipment.
Fuse box in the passenger compartment
In the passenger compartment, the main fuse and relay box is mounted under the instrument panel on the passenger side and is covered with a protective cover. It consists of a main section and additional sections (LR LL and RL RR).
General diagram
Diagram
Main section of the unit
Description
| Fuses | |
| F1 | 5A Compressor |
| F2 | 7,5A Lights |
| F3 | 20A Heater fan motor |
| F4 | 15A Coarse filter heating |
| F5 | 15A CBCU |
| F6 | 5A Headlight dimmer, auxiliary equipment |
| F7 | 20A CBCU |
| F8 | 20A CBCU |
| F9 | 15A CBCU |
| F10 | 15A CBCU |
| F11 | 30A Engine control unit |
| F12 | 20A CBCU |
| F13 | 7,5A Cigarette lighter |
| F14 | 15A 12V power sockets |
| F15 | 15A 24 V power sockets |
| F16 | 15A Wiper |
| F17 | 15A Signal |
| F18 | 10A Ignition switch |
| F19 | 30A Electric lift, cabin lift |
| F20 | 5A Tachograph |
| F21 | 5A Instrument cluster |
| F22 | 20A Ignition switch 1 |
| F23 | 20A Right door controller, PCM unit |
| F24 | 20A Left door controller, DCM unit |
| F25 | 7.5A Diagnostic connector |
| F26 | 5A Differential lock |
| F27 | 15A Ignition, washers |
| F28 | 5A Power take-off |
| F29 | 5A ECU 15, ECAS |
| F30 | 5A ABS |
| Relay | |
| K1 | Compressor relay |
| K2 | Reserve |
| K3 | Reserve |
| K4 | ST air conditioner shutdown relay |
| K5 | 24V socket |
| K6 | Motor washer relay |
| K7 | 12V socket |
| K8 | Start protection relay K8 |
| K9 | Start relay with remote control |
| K10 | Cigarette lighter relay |
| K11 | Signal relay |
| K12 | Electric horn relay |
| K13 | Wiper motor 1 |
| K14 | Wiper motor 2 |
| K15 | Excitation genitor and diode |
| K16 | Wiper low speed relay |
| K17 | Heater fan relay |
| K18 | Reserve |
| K19 | A/C IG power relay |
| K20 | Reserve |
| K21 | Wiper high speed relay |
| K22 | Ignition relay 2 |
| K23 | Ignition relay 1 |
Additional sections
Schematic
Designation
| LL | |
| F1 | 7.5A Electric rear view mirror |
| F2 | 7.5A Audio system battery power supply |
| F3 | 5A Radio and CD player |
| F4 | |
| F5 | |
| F6 | 5A Refrigerator |
| F7 | 5A Remote start |
| LR | |
| F1 | 5A Air valve fuse 10A Ignition switch and ACC fuse |
| F2 | 5A Ignition |
| F3 | 15A Auxiliary heater (autonomous) |
| F4 | 15A Seat heating |
| F5 | 5A GLONASS |
| F6 | 20A Fuel heating |
| F7 | 10A Fuel heating |
Diagram
Allocation
| RL | |
| K1 | Rear lamp spotlight relay |
| K2 | Autonomous heater relay |
| K3 | Low beam relay |
| K4 | ACC relay |
| K5 | Air conditioner forced start relay |
| RR | |
| F1 | 10A Left door (lock and window) |
| F2 | 10A Right door (lock and window) |
| F3 | 20A Nox sensor |
| F4 | 5A Reverse |
| F5 | 15A ABS |
| F6 | 5A Sunroof |
| F7 | 10A Low beam |
| F8 | 10A Heated mirrors |
| F9 | 5A Optional equipment, Telephone |
| F10 | 30A Radiator (for mixer) |
Fuse box behind the cab
Behind the cab, on the frame, there is another block with fuses and relays.
Photo – diagram
Appointment
| F1 | IGN ECM A01a |
| F2 | Fuel filter heater R05 |
| F3 | NOx sensor B83 |
| F4 | IGN TPMS A51 |
| F5 | MBO heating R08 |
| F6 | |
| F7 | SCR air valve Y08 |
| F8 | IGN Trailer socket X03.2 |
| F9 | |
| F10 | TPMS A51 |
| F11 | ECM A01 |
| F12 | TCM A02 |
| F13 | Fuel pump M02 |
| F14 | |
| F15 | Remote start M01 |
| F16 | |
| F17 | TCM A02 |
| F21 | Trailer socket X03.2 |
| F22 | Trailer lights, on-board lights, tail lights |
| Relay | |
| К1 | Remote start relay |
| К2 | Ignition relay #1 on ECM, TPMS, NOx, fuel pump |
| К3 | Ignition relay #2 on TCM, filter heating and MBO |
| К4 | Ignition relay #2 to TCM, filter heating and MBO |
| К5 | Starter lock relay |
| К6 | Frame and trailer clearance relay |
Check the element assignments against your schematics on the back of the unit cover.
Fuse box on the battery
The high power fuse box is located on the plus terminal of the battery.
Diagram
Decoding
- Non-disconnectable power supply of frame mounting block (SCR valve, trailer, TPMS, ECM)
- Non-disconnected power supply of the cabin mounting block (relays K21, K22, DCM, PCM, Tachograph, GLONASS, IMMO, central heating, autonomous heater, CBCU, instrument cluster, stereo, relays of sound signals K11 K12, sunroof, mirror adjustment).
- Generator
- Preheating
- Disconnectable power supply to cab wiring block (Ignition lock, cabin heater motor, cigarette lighter, drawer lights, sleeper lamps, spotlight, OBD, 24V socket, cab lift pump, windscreen wipers, heated mirrors, heated seat, ECAS, reverse, climate control)
- Trailer ABS socket; ABS unit
- Disconnectable power supply to frame mounting unit (TCM, trailer, trailer and frame lights)
- Standby
If you have something to add or found a mistake, write in the comments.
