Hyundai Sonata 6 (YF) was produced in 2010, 2011, 2012, 2013 and 2014. In this publication you will find an assignment of fuses and relays Hyundai Sonata 6 with box diagrams, photo examples of execution and locations. Let’s highlight the fuse responsible for the cigarette lighter.
Check the purpose of the elements and their characteristics in the boxes with your diagrams or other technical documentation.
Contents
Passenger compartment fuse box

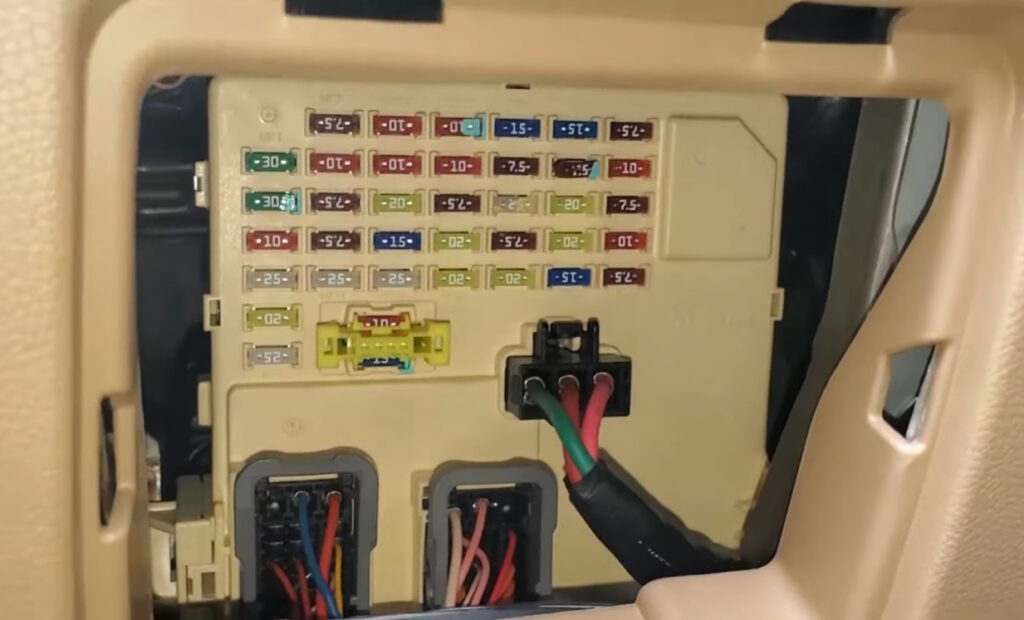

Located under the dashboard behind a protective cover.
Type 1
legend
Diagram

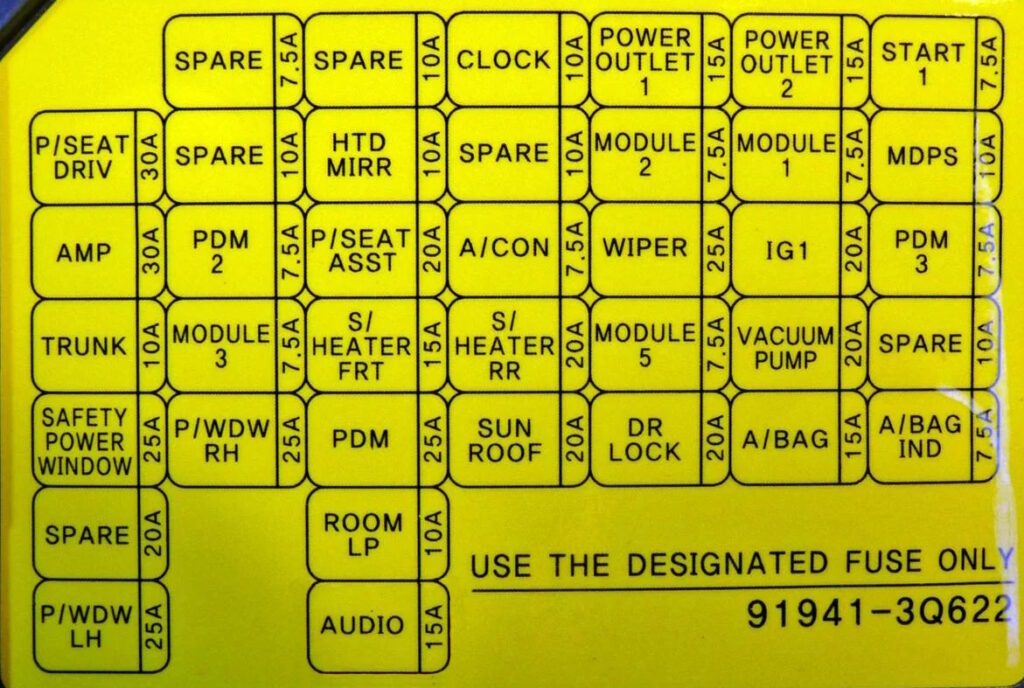

Type 2
Diagram
Designation
| START | 7.5A Without Smart Key: ICM Relay Box (Alarm Relay), With Smart Key System: Automatic Transmission Mode Switch, ECM, E / R Fuse and Relay Box (Start 1 Relay), Smart Key System Control Module |
| A/BAG | 15A SRS Control Module, Passenger Mass Classification Sensor |
| A/BAG IND | 7,5А Instrument panel |
| MDPS | 7.5A Power steering EPS control module |
| POWER OUTLET | 15A Power outlet (sockets) |
| BCM | 7.5A Smart Key System Control Module, BCM |
| A/CON SW | 7.5A Air conditioning control module |
| MODULE 2 | 7.5A Electro chrome mirror, ESC switch |
| SPARE 1 | Reserve |
| MODULE 4 | 7.5A Rear parking aid sensor Left / Right (Indoor / Outdoor), Air conditioning control module (Climate control), Automatic transmission selector position indicator |
| IG1 | 20A Fuse and relay box E / R (Fuse – TCU 1, ECU 3, ABS 3) |
| PDM3 | 7,5А Smart Key system control module |
| C/LIGHTER | 20A Cigarette lighter |
| MODULE 6 | 10A Outside Mirror Adjustment Switch, Audio, Audio and Navigation Head Unit Module, Digital Clock |
| HTD MIRR | 10A Outside mirror adjustment switch Driver / Passenger, Air conditioning control module |
| MODULE 3 | 7.5A Audio, Tire Pressure Monitoring System Module, Digital Clock, BCM, Instrument Cluster, Driver and Passenger Seat Heating Module |
| SUNROOF | 15A Roof hatch |
| S/HEATER RR RH | 15A Rear seat heating switch, Right |
| BLOWER | 10A A / C Control Module (Manual Air Conditioner), ECM / PCM, Blower Resistor |
| IOD 1 | 10A Trunk lamp, Left / Right individual lighting lamps, Interior lamp, Overhead console lamp, Ignition switch III. and Open Door Warning Switch (Without Smart Key System) |
| TRUNK | 10A Trunk lid relay |
| MODULE 1 | 7.5A Gearbox switch to Sport mode (AKP), Key solenoid (Without Smart Key system) |
| S/HEATER RR LH | 15A Rear Seat Heating Switch, Left |
| MODULE 7 | 7.5A Smart Key System Control Module, BCM |
| IOD 2 | 20A Audio systems, Head unit A / V and navigation |
| P/WDW RH | 25A Glass servo relay, Right |
| PDM2 | 7.5A Smart Key System Control Module, Start Stop Button Switch |
| WIPER FRT | 25A ICM Fuse and Relay Box (Rain Sensor Relay), Multi Function Switch, Wiper Motor, E / R Fuse and Relay Box (Wiper Relay) |
| MODULE 5 | 7,5A Ionizer (Climate control), Rain sensor, Roof hatch |
| AMP 1 | 25A AMP (amplifier) |
| PDM 1 | 25A Smart Key System Control Module |
| A / CON | 7.5A A / C Control Module, E / R Fuse and Relay Box (Fan Relay) |
| IOD 4 | 10A Tire Pressure Monitoring System Module, BCM, Auto Headlight Photo Sensor, Instrument Cluster, DLC, Junction Box Upgrade Connector, Electro Chrome Mirror, Air Conditioning Control Module, Digital Clock |
| P / WDW LH | 25A Left Glass Servo Relay, Glass Servo Safety System Module |
| DR LOCK | 20A Door Lock Relay, Door Unlock Relay, ICM Fuse and Relay Box (Turn Signal Relay) |
| P/SEAT DRV | 30A Switch for manual adjustment of the driver’s seat |
The fuses designated as C / LIGHTER and POWER OUTLET are responsible for the cigarette lighter or additional sockets.
Engine compartment fuse box
Main fuse box
Type 1

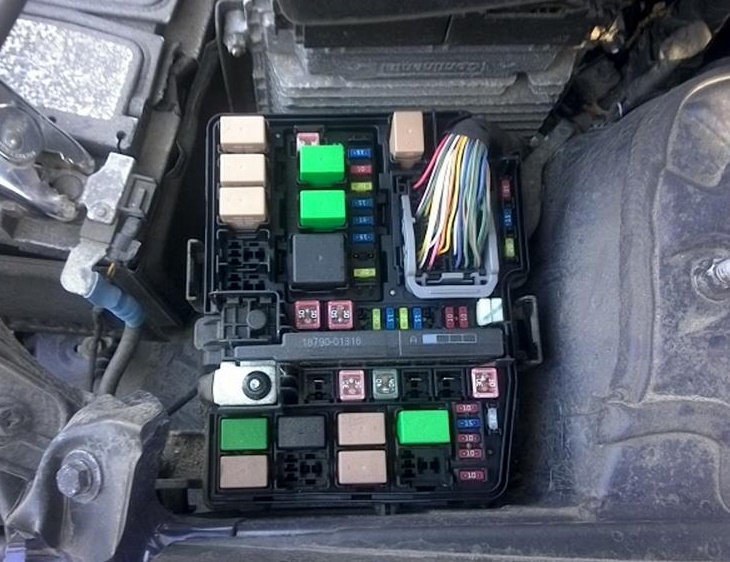

Located on the left side of the engine compartment.
Diagram
legend
Assignment
| MDPS | 80A EPS control module |
| B+1 | 60A Distribution block (ARISU 1 (4CH), IPS 1, Fuse – P / WDW LH, P / WDW RH, TRUNK, AMP 1) |
| C/FAN | 40A Cooling Fan Relay (Low), Cooling Fan Relay (High) |
| ABS 1 | 40A ESC Module, Multi Function Diagnostic Connector |
| RR HTD | 40A Seat heating relay |
| BLOWER | 40A Cooling fan relay |
| B+2 | 60A Distribution block (Horn relay when the turn signal is turned on, ARISU 2 (4CH), IPS (1CH), IPS (2CH), Fuses – P / SEAT DRV, SUNROOF [SUNROOF]) |
| B/UP LP | 10A Electro Chrome Mirror, Audio / Video (A / V) and Navigation Head Unit Module, Rear Lamp Combination (Interior) Left / Right, Stop Lamp Switch, BCM, Instrument Cluster |
| TCU 1 | 15A Vehicle speed sensor, Automatic transmission mode switch |
| ABS3 | 10A ESC System Module, Multi Function Diagnostic Connector |
| ECU3 | 10A Stop Lamp Switch, ECM, Automatic Transmission – PCM |
| WIPER | 10A Rain sensor, ECM, automatic transmission – PCM |
| B+3 | 50A Distribution block (Fuses – MODULE 1, PDM 1, PDM 2, DR LOCK) |
| EMS | 40A EMS Unit (Engine Control Relay, Fuses – ECU 4, A / CON, F / PUMP) |
| STOP LP | 15A Brake Light Switch, Smart Key System Control Module |
| S/ HEATER FRT | 20A Driver and passenger seat heating control module |
| HORN | 15A Horn relay |
| IG2 | 40A Without Smart Key: Ignition Switch, Start 1 Relay, With Smart Key: PDM 4 Relay (IG2), Start 1 Relay |
| ABS 2 | 30A ESC System Module, Multifunction Diagnostic Socket |
| IG 1 | 40A Without Smart Key: Ignition Switch, With Smart Key: PDM Relay 3 (IG1), PDM Relay 2 (ACC) |
| F/PUMP | 15A Fuel pump relay |
| ECU 4 | 15A PCM (ACP), ECM (MKP) |
| A / CON | 10A A / C compressor relay |
| INJECTOR | 10A Fuel Injectors # 1 / # 2 / # 3 / # 4, A / C Compressor Relay, Fuel Pump Relay |
| ECU 2 | 10A PCM (automatic transmission), ECM (manual transmission) |
| IGN COIL1 | 20A Ignition Coils # 1 / # 2 / # 3 / # 4, Capacitor |
| SENSOR 2 | 10A Immobilizer System Module, Camshaft Position Sensor # 1 / # 2 |
| SENSOR 1 | 10A Oxygen Excess Sensor (Upper / Lower), Additional Fuel Tank Closure Valve, Intake Manifold Length Change Solenoid Valve, Camshaft Variation Oil Pressure Control Valve # 1 / # 2, Evaporative Emission System Solenoid Valve, System Fan Relay Engine Cooling (Low), Engine Cooling Fan Relay (High) |
| SPARE | Reserve |
The positive terminal of the battery may contain high-power fuses.
Type 2

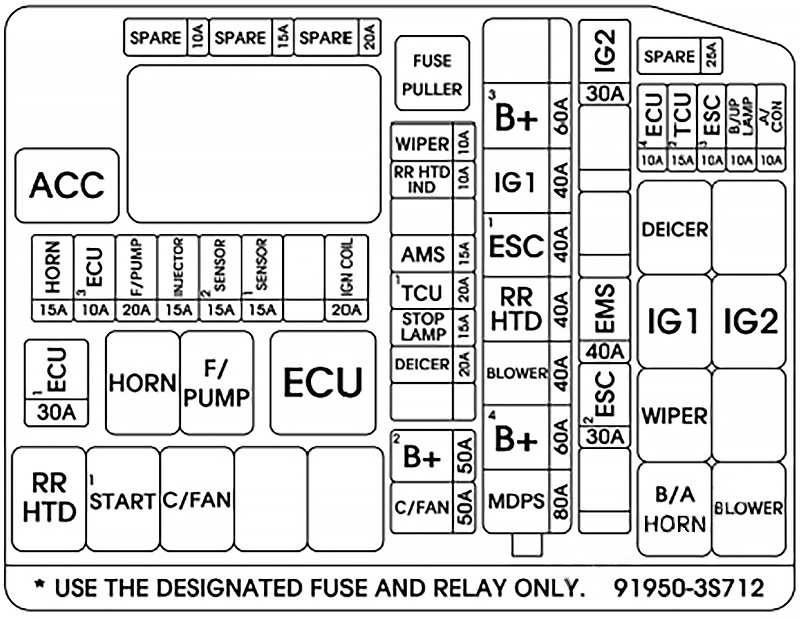

Diagram
Description
| 60A C/FAN HI (2.0 TGDI) | Cooling fan high-speed relay |
| 60A B+ 3 | I/P junction box (P/WDW ASST 20A, P/WDW LH 25A, P/WDW RH 25A, TRUNK 10A, S/HEATER FRT 15A, PDM 25A, MODULE 3 7.5A, Safety power window 25A, AUDIO 15A, Power window relay) |
| 40A IGN 1 | Ignition circuit (Without Smart Key: ignition switch / With Smart Key: ACC relay, IG1 relay) |
| 40A ESC 1 | ESC module, multipurpose check connector |
| 40A RR HTD | Rear heated window relay |
| 40A BLOWER | Blower motor relay |
| 60A B+ 4 | I/P junction box (P/SEAT DRIV 30A, AMP 30A, PDM 2 7.5A, IPS 2/3/5/8) |
| 80A MDPS | Electric power steering (EPS) control module |
| 50A B+ 2 | I/P junction box (SUNROOF 20A, DR LOCK 20A, IPS 1/4/6/7/9, ROOM LP 10A) |
| 10A A/CON | Automatic A/C control module |
| 10A B/UP LP | Back-up lamp switch (M/T), back-up lamp relay (A/T) |
| 10A ESC 3 | ESC module, multipurpose check connector |
| 15A TCU 2 | Vehicle speed sensor (M/T), transaxle range switch (A/T), Start2 relay |
| 10A ECU 4 | Stop lamp switch, PCM |
| 30A IGN 2 | Without Smart Key: ignition switch, Start1 relay / With Smart Key: Start1 relay, IG2 relay |
| 40A EMS | EMS box (HORN 15A, ECU 3 10A, ECU 1 30A, F/PUMP 20A) |
| 30A ESC 2 | ESC module, multipurpose check connector |
| 10A WIPER | PCM |
| 10A RR HTD IND | A/C control module (rear heater indicator) |
| 15A AMS | Battery sensor |
| 20A TCU 1 | PCM |
| 15A STOP LP | Stop lamp switch |
| 20A DEICER | Deicer relay |
| 20A SPARE | Spare |
| 40A C/FAN (2.4 GDI) | Cooling fan low & high relay |
| 40A C/FAN LO (2.0 TGDI) | Cooling fan low-speed relay |
| 20A IGN COIL | Ignition coils #1–#4, condenser |
| 15A SENSOR 1 | Upstream & downstream oxygen sensors |
| 15A SENSOR 2 | Immobilizer module, camshaft position sensors, purge control solenoid valve, variable intake solenoid valve, crankshaft position sensor, oil control valves, canister close valve |
| 15A INJECTOR | Fuel pump relay |
| 20A F/PUMP | Fuel pump relay |
| 10A ECU 3 | PCM |
| 15A HORN | Horn relay, burglar horn relay |
| 30A ECU 1 | ECU relay |
Additional box
Installed on diesel Sonata 6 models on the right side of the engine compartment.
Purpose of elements
- 80А GLOW – glow plugs
- 50A РТС – additional heater / heater
Is there anything to add to the material? We’d love to hear from you.
