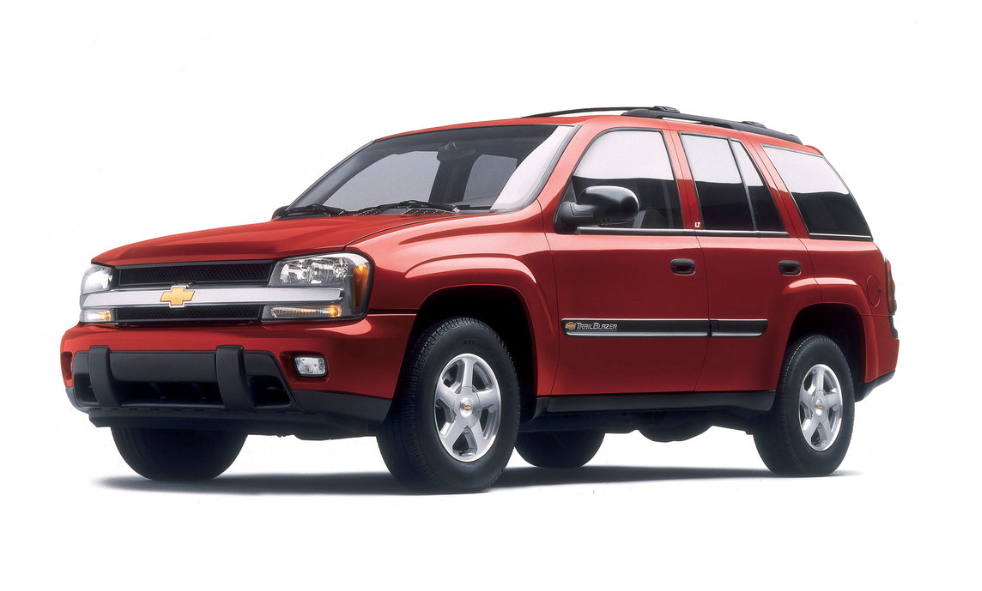

The 1st generation Chevrolet TrailBlazer was produced in 2001, 2002, 2003, 2004, 2004, 2005, 2005, 2006, 2007, 2008, 2009, 2010 with the GMT360 designation. During this time, the model received an update. In this article you can find a description of fuses and relays Chevrolet Trailblazer 1 with fuse box diagrams, their locations and photo examples of performance. Let’s highlight the cigarette lighter fuse.
The fuse and relay assignment may differ from the one shown and depends on the year of manufacture and the level of electrical equipment of your vehicle.
Engine compartmen
In the engine compartment, under the bonnet, the fuse and relay box is mounted on the left-hand side next to the battery.
Diagram
Assignment
| 1 | 10A Fuel Vapour Adsorber Ventilation Solenoid Valve (EVAP), Transmission Control Module (TCM) |
| 2 | 10A 2005-2009 (5.3 l, 6.0 l): Body Control Module (BCM), anti-theft alarm system, anti-theft system control module |
| 3 | 15A Windscreen washer fluid pump |
| 4 | 10A High beam headlamps, high beam relay |
| 5 | 10A 2005-2009 (5.3L, 6.0L): heated oxygen sensor |
| 6 | 10A 4. 2L: Air conditioner relay |
| 10A 2005-2009 (5.3L, 6.0L): heated oxygen sensor | |
| 7 | – |
| 8 | 25A 2003: Transfer case shift control module, transfer case position sensor motor |
| 30A 2004-2009: Transfer case encoder motor, transfer case shift control module. | |
| 9 | 20A 2005-2009 (5.3L, 6.0L): Fuel injectors, ignition coils (right side) |
| 15A 2003-2004 (5.3L): Fuel injectors, ignition coils (right side) | |
| 10A 2006-2009 (4.2L): Heated oxygen sensor | |
| 10 | 15A 2003-2004 (5.3L): Fuel injectors, ignition coils (left side) |
| 15A Fuel vapour recovery (EVAP) adsorber purge solenoid, mass air flow (MAF)/inlet air temperature (IAT) sensor, valve lifter oil manifold (VLOM) assembly | |
| 11 | 15A 5.3L, 6.0L: Throttle Actuator Control Module (TAC) – Powertrain Control Module (PCM) / Engine Control Module (ECM) |
| 12 | 10A 2003-2004: Body Control Module (BCM), anti-theft alarm system, anti-theft system control module |
| 20A 2005-2009 (5.3L, 6.0L): fuel injectors, ignition coils (left side) | |
| 10A 2005-2009 (4.2L): Body Control Module (BCM), anti-theft alarm, anti-theft control module | |
| 13 | 10A Trailer connector (right indicator) |
| 14 | 30A Automatic level control compressor |
| 15 | 10A Trailer connector (reversing lights) |
| 16 | 10A Trailer connector (left indicator) |
| 17 | 5A Ignition switch |
| 18 | 25A Stop lamp switch |
| 19 | 20A Cigarette lighter, data link connector (DLC) |
| 20 | 10A 5.3L, 6.0L: Air conditioner relay |
| 21 | 20A Fuel pump relay, powertrain control module (PCM) |
| 22 | 15A Electronic adjustable pedal (EAP) relay |
| 23 | 10A Right high beam headlamp |
| 24 | 10A Left high beam headlamp |
| 25 | 10A Powertrain control module (PCM) / engine control module (ECM) |
| 26 | 10A Stop lamp switch, A/T shift lock actuator |
| 27 | 10A Right dipped beam headlamp |
| 28 | 10A Left dipped beam headlamp |
| 29 | 15A Headlamp actuator module (HDM) relay |
| 30 | 25A Turn signal/alarm module |
| 31 | 10A Body control module (BCM) |
| 32 | 10A Front passenger airbag pressure system (PPS) module, airbag sensor and diagnostic module (SDM), rollover sensor |
| 33 | 10A 2003-2008: Engine cooling fan (fan drive module) |
| 34 | 10A Ignition relay #1, air conditioner relay, parking/neutral position (PNP) switch, headlight adjustment actuators, inverter module, brake light switch, traction control switch, headlight adjustment switch, instrument cluster, turn signal/multifunction switch, interior Rear view mirror |
| 35 | 10A 2003: EVAP adsorber purge solenoid, EVAP adsorber vent solenoid |
| 15A 2004-2009: Electronic adjustable pedal (EAP) relay, reversing lights (parking/neutral position switch (PNP)) | |
| 36 | 15A 4.2 L: Powertrain Control Module (PCM) / Engine Control Module (ECM), fuel injectors, ignition coils |
| 15A 5.3 L, 6.0 L: Engine Control Module (ECM) | |
| 37 | 15A 2004-2008 (4.2 L): Secondary air injection pump (AIR) relay, secondary air injection pump (AIR), secondary air injection solenoid (AIR) |
| 38 | 10A 10A 4. 2L: Powertrain Control Module (PCM), Throttle Actuator Control Module (TAC) |
| 15A 2003-2004 (5.3 L): Heated oxygen sensors | |
| 15A 2009: Secondary Air Injection Pump Relay (AIR) | |
| 39 | 15A 2003: Reverse lights (parking/neutral position switch (PNP)) |
| 10A 2004-2005: EVAP adsorber purge solenoid, EVAP adsorber vent solenoid | |
| 40 | 10A 2003-2005 (4.2 L): heated oxygen sensors |
| 15A 2003-2004 (5.3 L): heated oxygen sensors | |
| 15A 2005-2009 (5.3 L, 6.0 L): 1-2 shift solenoid valve (1-2 SS), 2-3 shift solenoid valve (2-3 SS), 3-2 shift solenoid valve (2-3 SS), Torque converter clutch solenoid valve (TCC), Pulse width modulated torque converter clutch solenoid valve (TCC PWM), transmission control module (TCM) | |
| 41 | 20A Headlight washer relay, rear window wiper motor relay |
| 42 | 15A Front fog light relay |
| 43 | 30A Trailer brake wiring |
| 44 | 15A Horn relay |
| 45 | 10A Instrument panel cluster (IPC) |
| 46 | 10A 2005-2009 (5.3 litre, 6.0 litre): Engine Control Module (ECM) |
| 47 | 15A 2005-2009: Adjustable Voltage Control |
| 48 | 15A 2009: Engine Control Module (ECM) |
| 49 | 30A Trailer Connector |
| 50 | 60A ABS – Electronic Brake Control Module (EBCM) |
| 51 | 60A 4.2L: Secondary Air Injection Pump Relay (AIR) |
| 52 | 60A 2006-2009: Vehicle Stability Enhancement System (VSES) – Electronic Brake Control Module (EBCM) |
| 53 | – |
| 54 | – |
| 55 | 40A 2006-2009: Fan Motor Control Module, Resistor Assembly |
| 56 | 40A Starter relay, ignition switch |
| 57 | – |
| 58 | 40A 2003-2005: Fan motor resistor block (HVAC Manual), fan motor control processor (HVAC Auto) |
| 59 | 40A Ignition switch |
| 60 | – |
| 61 | – |
| 62 | 125A Fuse box (passenger compartment) |
| 63 | 15A 2009: Fuel Vapour Acquisition System (EVAP) adsorber purge solenoid, Mass Air Flow (MAF)/Inlet Air Temperature (IAT) sensor, Valve Lift Oil Manifold (VLOM) assembly |
| 64 | 15A 2009 (Saab): Fuel vapour recovery system adsorber purge solenoid (EVAP), mass air flow (MAF)/inlet air temperature (IAT) sensor |
| Relay | |
| R1 | Windscreen washer fluid pump |
| R2 | High beam headlamps |
| R3 | 2003-2004 (5.3 l): Ignition (fuses: ‘5’, “10”, ‘11’) |
| 2005-2009: Powertrain Control Module (PCM) / Engine Control Module (ECM) | |
| R4 | 4.2 l: Air conditioner |
| 2009: Secondary Air Injection Pump (AIR) | |
| R5 | – |
| R6 | Starter |
| R7 | 5.3 l, 6.0 l: air conditioning |
| R8 | Fuel pump |
| R9 | Electronic adjustable pedals (EAP) |
| R10 | Engine cooling fan |
| R11 | Headlamp drive module (low beam headlamps) |
| R12 | – |
| R13 | Headlamp washer system |
| R14 | Rear window washer fluid pump |
| R15 | Front fog lamp |
| R16 | Horn |
Fuse number 19 for 20A is responsible for the operation of the cigarette lighter.
Passenger compartment

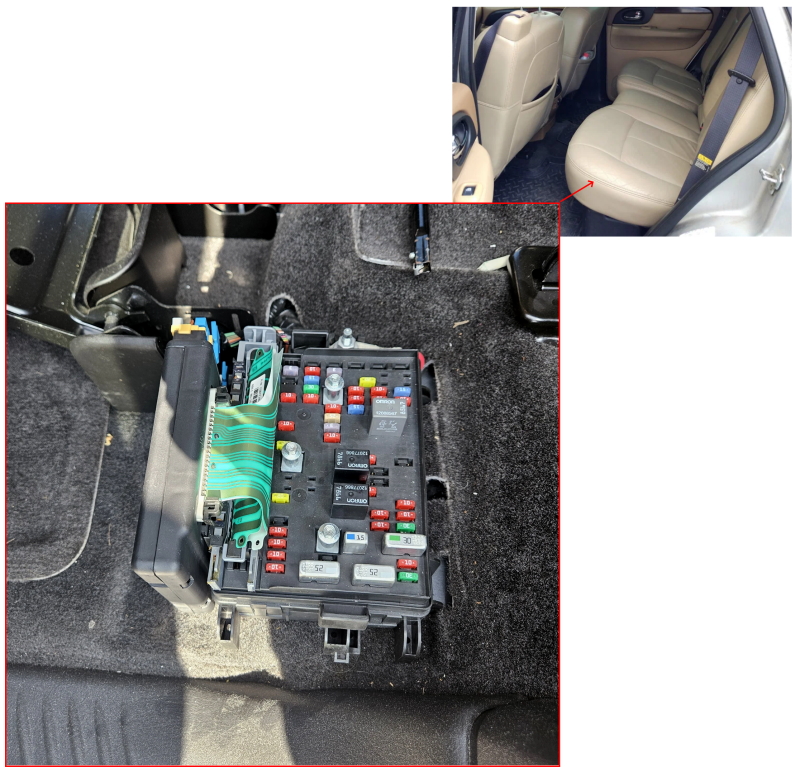

The fuse and relay box in the vehicle’s passenger compartment is located under the rear passenger seat.

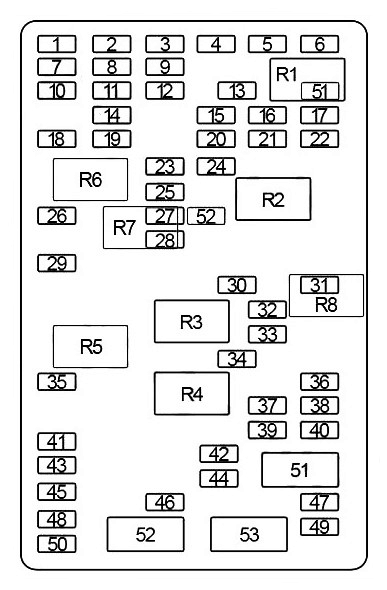

Diagram
Designation
| 1 | – |
| 2 | – |
| 3 | – |
| 4 | – |
| 5 | – |
| 6 | – |
| 7 | 3/10А Body equipment control module (BCM) |
| 8 | 10A Electronic brake system control module (EBCM) |
| 9 | 3A Bodywork control unit (BCM) |
| 10 | – |
| 11 | 15A Transfer case control switch, automatic level control (ALC) compressor, front axle actuator |
| 12 | 10A Transmission, automatic transmission shift lock actuator, engine control module (ECM), powertrain control module (PCM), ti valve control module, 3-2 shift solenoid valve (3-2 SS), torque converter clutch solenoid valve (TCC) |
| 13 | 20A Auxiliary outlet (front), Auxiliary outlet (console), Auxiliary outlet (rear (2005-2009)) |
| 14 | 30A HVAC Control Module |
| 15 | 10A Instrument cluster, front passenger door module (FPDM), tail lamp assembly (right), parking light (right), parking/turn signal lamp |
| 16 | 10A Trailer connector (parking lights) |
| 17 | 15A Radio, digital radio |
| 18 | 10A Body Control Module (BCM) |
| 19 | 10A HVAC Control Module, turn signal/multifunction switch, air temperature actuators, defrost actuator, recirculation actuator, mode actuator, console mode actuator, traction control switch, electronic brake control module (EBCM), HVAC control module (auxiliary), steering wheel speed/ Position sensor |
| 20 | 10A Instrument cluster, driver’s door module (DDM), tail lamp assembly (left), parking lamp (left), parking/turn signal lamp |
| 21 | 10A Turn signal lamp/multifunction switch, parking lamps, front parktronic and turn signal lamp |
| 22 | 10A HVAC control module, HVAC control module (auxiliary) |
| 23 | 10A Transmission control module (TCM) |
| 24 | 15A Rear lights, powertrain control module (PCM), throttle actuator control (TAC), engine control module (ECM), trailer brake wiring, transmission control module (TCM) |
| 25 | 25A Wiper motor |
| 26 | 10A 2003-2006 (except Saab): Body Control Module (BCM) |
| 20A 2006-2009 (except Saab): sunroof motor | |
| 27 | 3A Body Control Module (BCM) |
| 28 | 10A 2003-2006 outside humidity sensor, digital video disc (DVD) player |
| 29 | 20A Sunroof motor |
| 30 | 10A Garage door opener, voice recorder, digital video disc (DVD) player, vehicle communication interface module (CIM) |
| 31 | 20A EXT (2003-2006): Hatch module |
| 32 | – |
| 33 | – |
| 34 | 10A Power door lock (LOCK relay and DISABLE relay) |
| 35 | 20A 2003-2006: hatch module |
| 20A EXT (2003-2006): Quarter window switches and actuators, sunroof module | |
| 36 | 10A 2005-2009: Cobra intrusion sensor module, tilt sensor, tailgate module (LGM), memory seat module – driver |
| 37 | 10A Right rear light assembly, parking lights |
| 38 | 10A Centre high-mounted brake light (CHMSL) |
| 39 | 10A Number plate lamps and left rear light |
| 40 | 30A 2003-2006: fan motor (auxiliary), fan motor control processor (auxiliary) |
| 41 | 20A 2003-2004: Auxiliary outlet (rear) |
| 42 | 20A Audio amplifier |
| 43 | 10A Front passenger door module (FPDM) |
| 44 | 15A Rear window wiper motor |
| 45 | 10A Driver door module (DDM) |
| 46 | 10A 2003-2004 : Seat Memory Module (driver), Seat Memory Module (front passenger), Cobra Intrusion Sensor and Tilt Sensor |
| 47 | 10A Rear Fog Light |
| 48 | 10A Body Control Module (BCM) |
| 49 | 30A Rear Door Module |
| 50 | 10A Body Control Module (BCM) |
| 51 | 20A Auxiliary Power Socket – Front/Rear |
| 52 | 2A Body Control Module (BCM) |
| Automatic circuit breaker | |
| 51 | 30A Power seat, memory seat module (driver), memory seat module (front passenger) |
| 52 | 25A Power window (driver door module (DDM), left rear window switch) |
| 53 | 25A Power window (front passenger door module (FPDM), right rear window switch) |
| Relay | |
| R1 | Rear fog light |
| R2 | Parking lights, tail lights (fuses: ‘16’, ‘21’, “37”, ‘39’) |
| R3 | Power door unlock (tailgate lock actuators) |
| R4 | Power door lock (tailgate lock actuators) |
| R5 | EXT (2003-2006): Quarter window switches and actuators, sunroof module |
| R6 | – |
| R7 | – |
| R8 | – |
