Chevrolet Equinox 1nd generation was produced in 2004, 2005, 2006, 2007, 2008, 2009. In this post you will find a description of the Chevrolet Equinox 1G fuses and relays with fuse box diagrams, photo examples of performance and locations. Also we well note the fuse responsible for the cigarette lighter
The execution of the boxes and the allocation of the elements in them may differ from those presented and depend on the year of manufacture and the level of electrical equipment of your car.
Passenger compartment

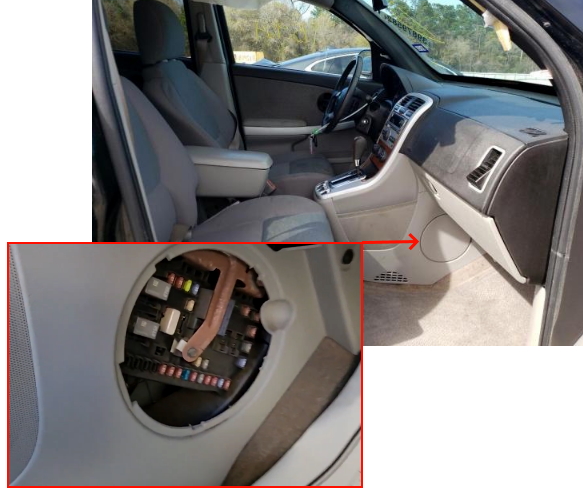

You’ll find the fuse box for the instrument panel on the passenger side panel of the centre console. To access the fuses, just open the fuse panel door from the passenger side by pulling it out.
Type 1
Diagram
Assignment
| 1 | 2007-2008: Sunroof 2009: Sunroof, Inside Rear View Mirror, Compass |
| 2 | Rear Seat Entertainment |
| 3 | Rear Wiper |
| 4 | Liftgate |
| 5 | Airbags |
| 6 | Heated Seats |
| 7 | Driver’s Side Turn Signal |
| 8 | Door Locks |
| 9 | Automatic Occupant Sensing Module |
| 10 | Power Mirrors |
| 11 | Passenger’s Side Turn Signal |
| 12 | Amplifier |
| 13 | Steering Wheel Illumination |
| 14 | Infotainment |
| 15 | Climate Control System, Remote Function Actuator |
| 16 | Canister Vent |
| 17 | Radio |
| 18 | Cluster |
| 19 | Ignition Switch |
| 20 | Body Control Module |
| 21 | 2007-2008: OnStar 2009: Communications Integration Module |
| 22 | Center High-Mounted Stoplamp, Dimmer |
| 23 | Interior Lights |
| SPARE | Spare fuses |
| PWR WNDW | Power Windows (Circuit Breaker) |
| PWR SEATS | Power Seats (Circuit Breaker) |
| EMPTY | Empty (Circuit Breaker) |
| PLR | Fuse Puller |
| Relays | |
| RAP RLY | Retained Accessory Power Relay |
| REAR DEFOG RLY | Rear Defogger Relay |
Type 2
Diagram
Designation
| LOCK/ MIRROR | Door Lock, Power Mirror |
| CRUISE | Cruise Control System |
| EPS | Electric Power Steering |
| IGN 1 | 2005: Ignition System 2006: Switches, Instrument Panel Cluster |
| PRNDL/ PWR TRN | PRNDL/ Powertrain |
| BCM (IGN) | Body Control Module |
| AIRBAG | Airbag System |
| BCM/ISRVM | 2005: Inside Rearview Mirror 2006: Body Control Module, Inside Rearview Mirror |
| TURN | Turn Signals |
| HTD SEATS | Heated Seats |
| BCM/HVAC | Body Control Module, Heating, Ventilation and Air Conditioning |
| HZRD | Hazard Warning Flashers |
| RADIO | Radio |
| PARK | Parking Lamps |
| BCM/CLSTR | 2005: Instrument Panel Cluster 2006: Body Control Module, Instrument Panel Cluster |
| INT LTS/ ONSTAR | Interior Lights/ OnStar |
| DR LCK | Door Locks |
| Relays | |
| PARK LAMP | Parking Lamps Relay |
| HVAC BLOWER | Heating, Ventilation and Air Conditioning Blower Motor |
| DR LCK | Door Locks Relay |
| PASS DR UNLOCK | Passenger Door Unlock Relay |
| DRV DR UNLCK | Driver Door Unlock Relay |
| HEAD LAMP | Headlamps |
Engine compartment
Under the hood, the main fuse and relay box is located on the front left.
Type 1
Diagram
Allocation
| 1 | Cooling Fan 2 |
| 2 | Cooling Fan 1 |
| 3 | Auxiliary Power |
| 4 | 2007: Not Used 2008-2009: Rear HVAC |
| 5 | Spare |
| 6 | 2007-2008: Spare 2009: Sun Roof |
| 7 | Anti-lock Brake System |
| 8 | Air Conditioning Clutch |
| 9 | Driver’s Side Low-Beam |
| 10 | Daytime Running Lamp 2 |
| 11 | Passenger’s Side High-Beam |
| 12 | Passenger’s Side Park Lamp |
| 13 | Horn |
| 14 | Driver’s Side Park Lamp |
| 15 | Starter |
| 16 | Electronic Throttle Control, Engine Control Module |
| 17 | Emission Device 1 |
| 18 | Even Coils, Injectors |
| 19 | Odd Coils, Injectors |
| 20 | Emission Device 2 |
| 21 | Spare |
| 22 | Powertrain Control Module, Ignition |
| 23 | Transmission |
| 24 | Mass Airflow Sensor |
| 25 | Airbag Display |
| 26 | Spare |
| 27 | Stoplamp |
| 28 | Passenger’s Side Low-Beam |
| 29 | Driver’s Side High-Beam |
| 30 | Battery Main 3 |
| 32 | Spare |
| 33 | Engine Control Module, Battery |
| 34 | Transmission Control Module, Battery |
| 35 | Trailer Park Lamp |
| 36 | Front Wiper |
| 37 | Driver’s Side Trailer Stoplamp, Turn Signal |
| 38 | Spare |
| 39 | Fuel Pump |
| 40 | Not Used |
| 41 | All-Wheel Drive |
| 42 | Regulated Voltage Control |
| 43 | Passenger’s Side Trailer Stoplamp, Turn Signal |
| 44 | Spare |
| 45 | Front, Rear Washer |
| 48 | Rear Defogger |
| 49 | Anti-lock Brake System Motor |
| 50 | Battery Main 2 |
| 52 | Daytime Running Lamps |
| 53 | Fog Lamps |
| 54 | Climate Control System Blower |
| 57 | Battery Main 1 |
| 63 | Megafuse / Electric Power Steering |
| Relays | |
| 31 | Ignition Main |
| 46 | Air Conditioning Compressor Clutch |
| 47 | Powertrain |
| 51 | Spare |
| 55 | Crank |
| 56 | Fan 1 |
| 58 | Passenger’s Side Trailer Stoplamp, Turn Signal |
| 59 | Driver’s Side Trailer Stoplamp, Turn Signal |
| 60 | Fan 3 |
| 61 | Fan 2 |
| 62 | Fuel Pump |
The cigar lighter is located in the engine compartment fuse box. For 2005-2006 models, look at fuses “CIGAR” (Cigarette Lighter), “AUX OUTLETS / AUX1 OUTLET” (Accessory Power Outlets) and “AUX 2/CARGO” (Accessory Power Outlet 2, Cargo Outlet). For 2007-2009 models, look for fuse number 3 (Auxiliary Power).
Type 2
Photo for example
Diagram
Appointment
| HTD SEATS | Heated Seats |
| HVAC BLOWER | Heating, Ventilation, Air Conditioning Blower Control |
| PREM AUD | Premium Audio System, Amplifier |
| ABS PWR | Anti-lock Brake System |
| RR WIPER | Rear Window Wiper |
| FRT WIPER | Front Window Wiper |
| SUNROOF | Sunroof |
| ETC | Electronic Throttle Control |
| PWR WDW | Power Windows |
| A/C CLUTCH | Air Conditioning Clutch |
| EMISS | Emissions |
| ENG IGN | Engine Ignition |
| CIGAR | Cigarette Lighter |
| LH HDLP | Left Headlamp |
| COOL FAN HI | Cooling Fan High |
| ECM/TCM | 2005: Body Control Module 2006: Engine Control Module, Transaxle Control Module |
| AUX OUTLETS / AUX1 OUTLET | Accessory Power Outlets |
| FUSE PULLER | Fuse Puller |
| INJ | Fuel Injectors |
| PWR TRAIN | Powertrain |
| FUEL PUMP | Fuel Pump |
| A/C DIODE | Air Conditioning Diode |
| TRAILER | 2006: Trailer Lighting |
| AUX 2/CARGO | 2005: Accessory Power Outlet 2, Cargo Outlet |
| BRAKE | Brake System |
| RH HDLP | Right Headlamp |
| HORN | Horn |
| BACKUP | Back-up Lamps |
| BATT FEED | Battery |
| ABS | Anti-lock Brake System |
| COOL FAN LO | Cooling Fan Low |
| RR DEFOG | Rear Window Defogger |
| START | 2005: Ignition |
| ABS | Anti-lock Brake System |
| FOG LP | Fog Lamps |
| IGN | Ignition Switch |
| CB POWER SEATS | Power Seats (Circuit Breaker) |
| Relays | |
| ENG MAIN | Engine Relay |
| RR WIPER | Rear Window Wiper Relay |
| FRT WIPER | Front Window Wiper Relay |
| PWR WDW | Power Windows Relay |
| COOL FAN HI | Cooling Fan High Relay |
| WIPER SYSTEM | Wiper System Relay |
| HORN | Horn Relay |
| DRL | Daytime Running Lamps Relay |
| FUEL PUMP | Fuel Pump Relay |
| STARTER RELAY | Starter Relay |
| REAR DEFOG | Rear Window Defogger Relay |
| FOG LP | Fog Lamp Relay |
| COOL FAN LO | Cooling Fan Low Relay |
| A/C CLUTCH | Air Conditioning Clutch Relay |
On our channel we have also prepared a video on this article, watch and subscribe.
If you have any questions, ask them in the comments.
