Chevrolet Equinox 2nd generation was produced in 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017. In our post you will find a description of the Chevrolet Equinox 2G fuses and relays with fuse box diagrams, photo examples of performance and locations. Note the fuse responsible for the cigarette lighter.
The execution of the boxes and the allocation of the elements in them may differ from those presented and depend on the year of manufacture and the level of electrical equipment of your car.
Location
Engine compartment

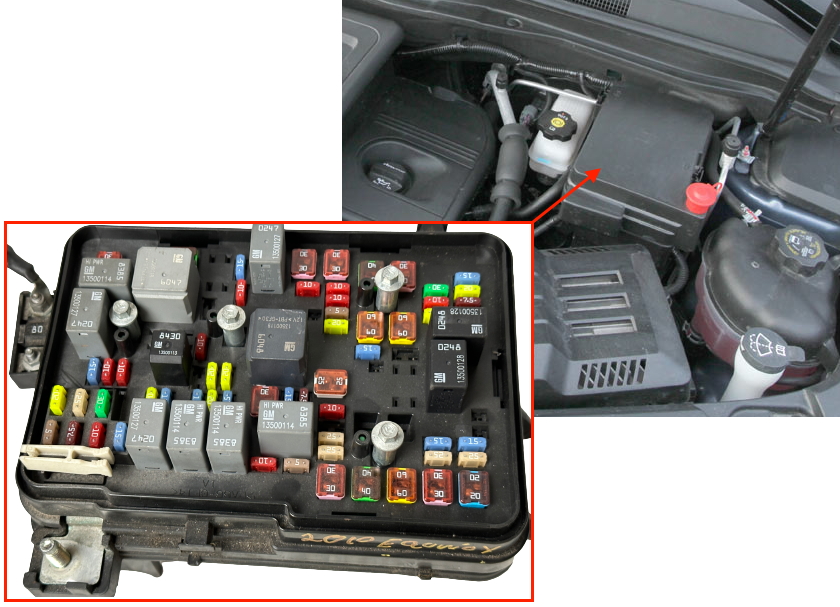

Under the hood, the main fuse and relay box is located on the front left.

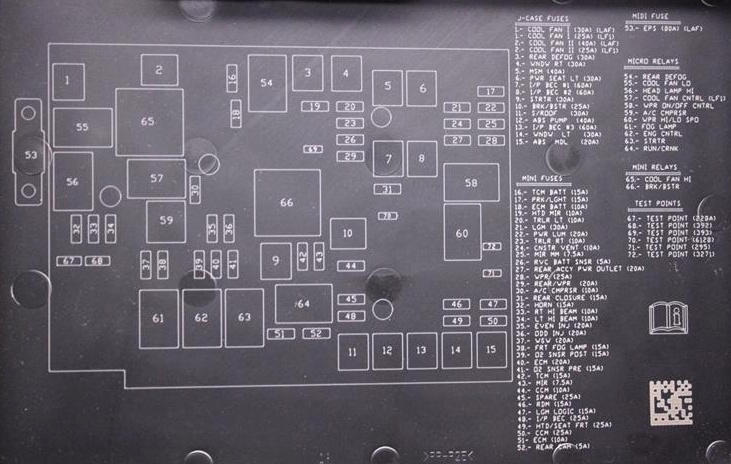

Check the diagrams with your designation on the back of the box cover.

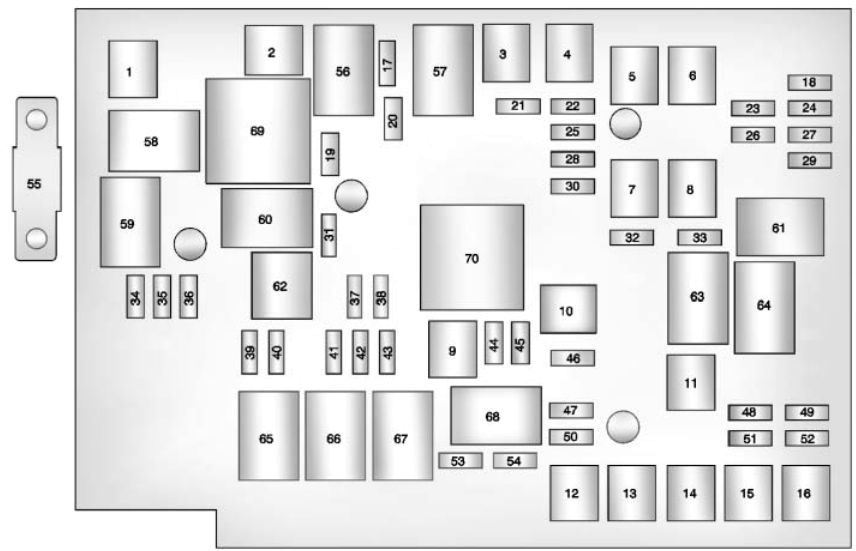

Diagram
Designation
| 1 | Cool Fan 1 |
| 2 | Cool Fan 2 |
| 3 | Brake Booster |
| 4 | Power Windows -Right |
| 5 | Memory Seat Module |
| 6 | Power Seat – Left |
| 7 | Instrument Panel Fuse Block 1 |
| 8 | Rear Defogger |
| 9 | Starter |
| 10 | AIR Pump Motor |
| 11 | Instrument Panel Fuse Block 2 |
| 12 | Sunroof |
| 13 | Antilock Brake System Pump |
| 14 | Instrument Panel Fuse Block 3 |
| 15 | Power Windows – Left |
| 16 | Antilock Brake System Module |
| 17 | Transmission Control Module Battery |
| 18 | Trailer Parking Light |
| 19 | AIR Pump Solenoid |
| 20 | Engine Control Module Battery |
| 21 | Canister Vent |
| 22 | Trailer Left Side (If Equipped) |
| 23 | Lift Gate Module |
| 24 | Power Lumbar |
| 25 | Trailer Right Side (If Equipped) |
| 26 | Rear Accessory Power Outlet |
| 27 | Memory Mirror Module |
| 28 | Regulated Voltage Control Battery Sensor |
| 29 | Front Wiper |
| 30 | Rear Wiper |
| 31 | Air Conditioning Compressor |
| 32 | Rear Latch |
| 33 | Heated Mirrors |
| 34 | Horn |
| 35 | Right High-Beam Headlamp |
| 36 | Left High-Beam Headlamp |
| 37 | Ignition Even Coil |
| 38 | Ignition Odd Coil |
| 39 | Windshield Washer |
| 40 | Front Fog Lamps |
| 41 | Post Catalytic Converter Oxygen Sensor |
| 42 | Engine Control Module |
| 43 | Pre-Catalytic Converter Oxygen Sensor |
| 44 | Transmission Control Module |
| 45 | Mirror |
| 46 | Fuel System Control Module Ignition |
| 47 | Spare |
| 48 | Rear Drive Module |
| 49 | Lift Gate Module Logic |
| 50 | Instrument Panel Fuse Block Ignition |
| 51 | Heated Seat- Front |
| 52 | Fuel System Control Module |
| 53 | Engine Control Module |
| 54 | Rear Vision Camera |
| 55 | Electric Power Steering |
| 56 | AIR Pump Solenoid |
| 57 | Brake Booster |
| 58 | Cooling Fan Low |
| 59 | Headlamp High Beam |
| 60 | Cooling Fan Control |
| 61 | Wiper On/Off Control |
| 62 | Air Conditioning Compressor |
| 63 | Rear Defogger |
| 64 | Wiper Speed |
| 65 | Fog Lamp |
| 66 | Engine Control |
| 67 | Starter |
| 68 | Run/Crank |
| 69 | Cooling Fan High |
| 70 | AIR Pump Motor |
| 77 | Power Seat – Right |
| 78 | Passenger Power Lumber |
Passenger compartment

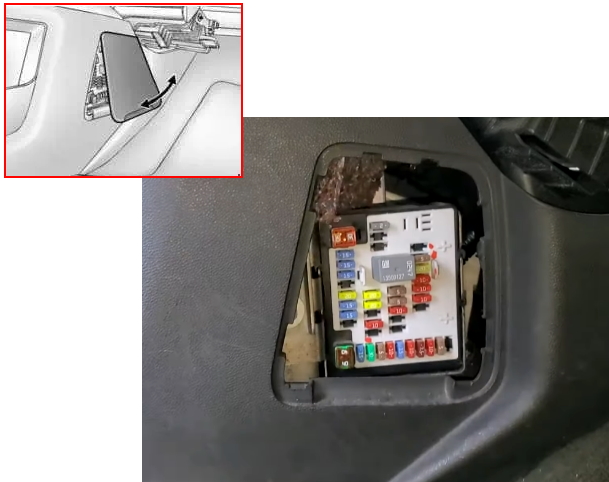

You’ll find the fuse box for the instrument panel on the passenger side panel of the centre console. To access the fuses, just open the fuse panel door from the passenger side by pulling it out.

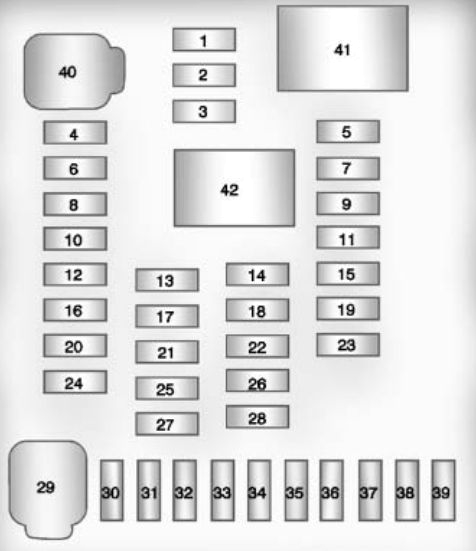

Diagram
Assignment
| 1 | Steering Wheel Dimming |
| 2 | Spare |
| 3 | Spare |
| 4 | Body Control Module 1 |
| 5 | Infotainment |
| 6 | Body Control Module 7 |
| 7 | Noise Control Module |
| 8 | Body Control Module 4 |
| 9 | Radio |
| 10 | Spare |
| 11 | Rear Parking Assist Module |
| 12 | Heater, Ventilation, and Air Conditioning Battery |
| 13 | Auxiliary Power Front |
| 14 | Heater, Ventilation and Air Conditioning Ignition |
| 15 | Display |
| 16 | Body Control Module 5 |
| 17 | Auxiliary Power Rear |
| 18 | Instrument Panel Ignition |
| 19 | Universal Garage Door Opener |
| 20 | Body Control Module 6 |
| 21 | Spare |
| 22 | Sensing and Diagnostic Module Ignition |
| 23 | Front Camera |
| 24 | Spare |
| 25 | Transmission Gear Shift Position Indicator |
| 26 | Spare |
| 27 | Spare |
| 28 | Spare |
| 29 | Front Blower Motor |
| 30 | Body Control Module 3 |
| 31 | Amplifier |
| 32 | Discrete Logic Ignition Switch |
| 33 | Communications Integration Module |
| 34 | Body Control Module 2 |
| 35 | Sensing and Diagnostic Module Battery |
| 36 | Data Link Connection |
| 37 | Instrument Panel Battery |
| 38 | Passenger Sensing System Module |
| 39 | Spare |
| 40 | Body Control Module 8 |
| 41 | Logistic Relay (If Equipped) |
| 42 | Retained Accessory Power Relay |
